Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
Power connection:	Fixed power supply cord with safety plug
Cable construction:	3 x 1.0 mm² H05RN-F
Cable length:	Approx. 0.8 m
Lamp type:	LED lamp
LED type:	1 x 50 W COB (chip-on-board) neutral white (NW)
Cooling:	Passive convection cooling
Control:	Plug and play
Setup:	Easy installation
Beam angle:	75°
Beam angle (1/2 peak):	75°
Beam angle (1/10 peak):	125°
Color temperature:	4100K
Color rendering index (CRI):	90 Ra
Illuminance in Lux (lx):	1m: 1943 lx, 3m: 215 lx, 6m: 64 lx
Luminous flux:	3769 lm
Housing color:	Black matte
Dimensions:	Length: 64 cm Width: 20.5 cm Depth: 8.5 cm
Weight:	2.00 kg
Noise classification:	Class 0 (no noise at all)
Energy efficiency class (A - G):	G
EPREL-Nr:	1276958

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603262	2,33 kg	65cm x 21,5cm x 11cm
4	4026397603279	10,20 kg	28cm x 44cm x 66cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Energylabel

Name	Version	Language
41600472-elabel-155834-1.0000-de.pdf (70 KB)	1.0000	de

EU Data sheet

Name	Version	Language
41600472-esheet-155835-1.0000-de.pdf (1 MB)	1.0000	de

All images

Name	Version	Language
41600472-Images-.zip

EUROLITE LED KKL-50 Floodlight 4100K black

50 W LED floodlight with extension arm and screw terminal for fixation-MainBild

50 W LED floodlight with extension arm and screw terminal for fixation-Bild-1

EUROLITE LED KKL-50 Floodlight 4100K black

The article is no longer in our assortment.

Check out the alternatives:

50 W LED floodlight with extension arm and screw terminal for fixation

EUROLITE LED KKL-50 Floodlight 4100K silver

this alternative is 100% identical. Other colour

No. 41600470

Stock for approx. 12 wk(s)

119,00 €

No. 41600472

75°

The Eurolite KKL-50 LED floodlight illuminates trade fair booths, shop windows, workshops and even weatherproof outdoor areas.
You can purchase the KKL-50 in three simple casing colors: black, white and silver.

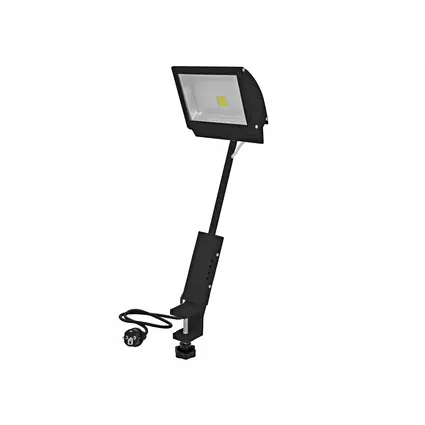

50 W LED floodlight with extension arm and screw terminal for fixation

Unique design
For tabletops with up to 40 mm strength
1 LED 50 W COB (chip-on-board) neutral white (NW)
The device is cooled by passive convection cooling
Control via plug and play
Easy installation
With a beam angle of 75°
Very high color rendering index (CRI)
Various versions available
Silent operation
For application areas such as: Advertisement/Shop window; Trade fair and shop fitting
Application possibility: Suspended; wall mounting
