Technical specifications
Power supply:
230 V AC, 50 Hz
Power consumption:
155 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:
Fixed power supply cord with safety plug
Cable length:
0.85 m
Fuse:
5 x 20 mm, T 3.15 A fuse replaceable
Base:
G-12
Lamp type:
Discharge lamp
Color generation:
Via color filter frame (optional)
Cooling:
Passive convection cooling
Control:
Plug and play
Beam angle (1/2 peak):
NSP 20° x 36°
MFL 21° x 36°
WFL 30° x 53°
VNSP 15° x 36°
Housing color:
Silver
Dimensions:
Width: 28 cm
Depth: 22 cm
Height: 40 cm
Weight:
6.65 kg
Legal specifications
Special product:
Not designed for household room illumination
Intended use:
Show effect lighting
Packaging units
PU
EAN
Weight
Dimensions
1
4026397398823
7,30 kg
28cm x 28,5cm x 52cm
2
4026397398830
15,40 kg
58cm x 30cm x 54,5cm
Spare parts
Lens (Set) ML-64/-56

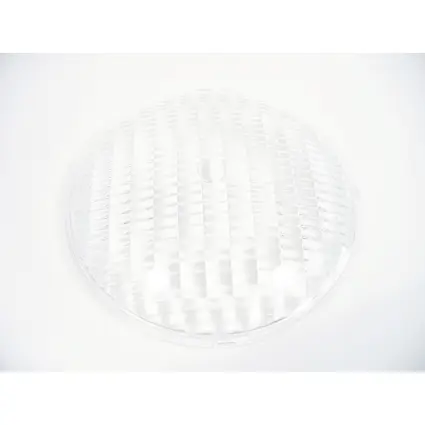

Lens Ø 177mm matt ML-64/-56 NSP
Lens Ø 177mm blank ML-64/-56 VNSP
Lens Ø 177mm big checkered ML-64/-56 MFL
Lens Ø 177mm small checkered ML-64/-56 WFT
Ignitor 230V/max 5A (Z-400M) WFL 250W
Screw nut M8 Wing Handle black
Lampsocket G-12 for TC-150
FUTURELIGHT Fuse-holder D=15 diameter hole d=13
EUROLITE Ignitor (HXCD-7) CDM 150W
Capacitor 18µF 250VAC 50-60Hz (MIK-250)
Downloads
Spezifications
Name
Version
Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
All images
Name
Version
Language
41600130-Images-.zip
...
Lighting
/
Spotlight
/
Static spots
/
ML/Studio PAR spots
EUROLITE ML-56 CDM Multi Lens Spot sil
Double tap or pinch to zoom
Hover to zoom
Bildergalerie öffnen
Detail images (4 overall)
EUROLITE ML-56 CDM Multi Lens Spot sil
Stock for approx. 12 wk(s)
169,00 €
74,79
€
-56% valid until 31.12.2026
add to cart
Find a dealer
Stock for approx. 12 wk(s)
List price
excl. 19% VAT
Prices in retail stores may vary.
No. 41600130
Spot for CDM-T 150 discharge lamp with 4 lenses/beam angles
Spot with 4 exchangeable lenses (VNSP, NSP, MFL and WFL)
Light output of a conventional PAR 56 spot with less power consumption
High-quality die-cast housing for highest stability
High-quality aluminum reflector
The device is cooled by passive convection cooling
Control via plug and play
For application areas such as: Trade fair and shop fitting
