Mounting connector for 5 - 15 mm cable O.D. range

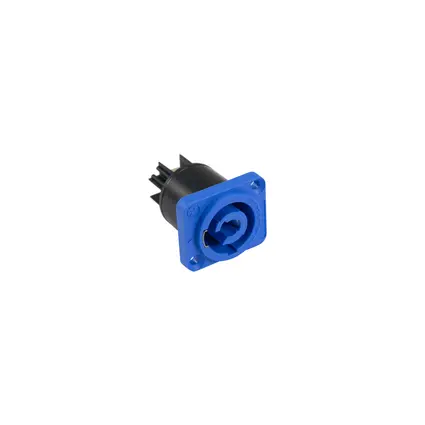

NEUTRIK PowerCon Mounting Connector bu NAC3MPA-1

svg
svg
NEUTRIK

Mounting connector for 5 - 15 mm cable O.D. range

NEUTRIK PowerCon Mounting Connector bu NAC3MPA-1

Stock for approx. 12 wk(s)
4,90
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 30208543

Industrial Connectors / PowerCon
Locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. Fast and easy locking system. High current capacity (20 A rated). Extremely robust and reliable. Meets all prevailing safety standards. UL recognized, VDE certified and SEV approved. Very good cable handling and protection. Note: The PowerCon is a connector without breaking capacity, i.e. the PowerCon should not be connected or disconnected under load or live!
Features

Mounting connector for 5 - 15 mm cable O.D. range

  • Premating safety ground
  • Quicklock with securing lever
  • With the two non-interchangeable types of connectors (A-type, B-type) it is impossible to produce a short circuit
  • Appropriate plugs are identified by mechanical keyways and by color
  • Made in Europe
Technical specifications
IP classification:IP20
Connector type:Powercon (gray)
Weight:0,01 kg
Number of contacts:2 + PE
Rated current per contact:20 A RMS
Rated voltage:250 V AC
Dielectric strength:4000 V DC
Contact resistance:<=3 mohms
Insulation resistance after damp heat test:>100 Mohms
Creepage distance:according to IEC 664-1
Cable retention force:= 220 N, depending on cable dia and material
Wiring:Flat tabs for FASTON 4.8 mm x 0.5 mm (0.187" x 0.02") or soldering
Solderability:complies with IEC 68-2-20
Housing:PA 6 30% GR
Insert:PA 6 30% GR
Contacts:CuZn39Pb3 / CuSn6
Contact surface:L+N 20 µm Ag plated, Earth 4 µm Ag plated
Chuck:POM
Temperature range:-30°C to +80°C
Flammability:UL94HB
Packaging units
PU EAN Weight Dimensions
1 4026397534313 0,01 kg 3cm x 2,5cm x 4cm
