Safety eyelet

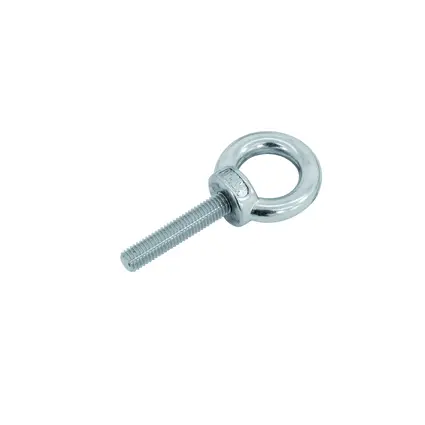

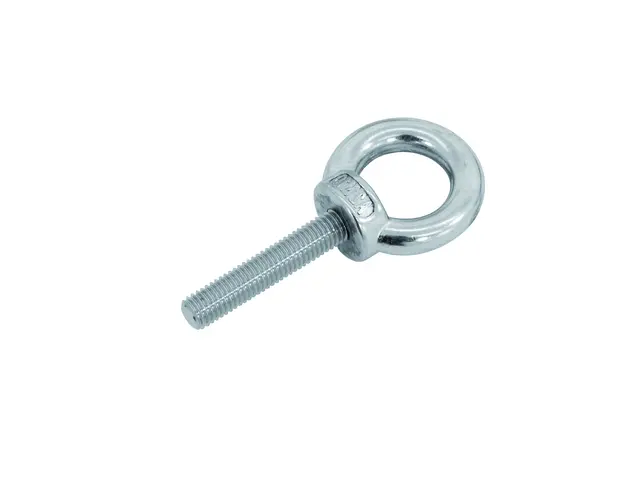

Eye bolt M10/50mm, MADE IN GERMANY

Safety eyelet-MainBild
download image
Detail images (1 overall)

Safety eyelet

Eye bolt M10/50mm, MADE IN GERMANY

The article is no longer in our assortment.
Check out the alternatives:
30001169
Eye Bolt M10/50mm, Stainless Steel
Alternative is the successor
Stock for approx. 12 wk(s)
6,90 €
Item no. 30001168
Print product
Product badge
Here you find the manual and downloads for
Eye bolt M10/50mm, MADE IN GERMANY
Features

Safety eyelet

  • For holding, carrying, suspending and securing
  • Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
  • Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
  • M10 thread
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Maximum load BGV C1 (8-fold):375 kg
Max. load WLL (4-fold):750 kg
Material:AlSi316
Inside diameter:Ø 2,5 cm
Outside diameter:Ø 4,5 cm
Thread:M10 thread x 50 mm
Dimensions:Length: 9,50 cm
Weight:110 g
Material:AlSi316
Thread diameter:M10
Thread length:50 mm
Inner diameter:25 mm
Outer diameter:44 mm
Total length:95 mm
Packaging units
PUEANWeightDimensions
140263973968740,12 kg14cm x 8cm x 2cm
