High-tensile ring bolt

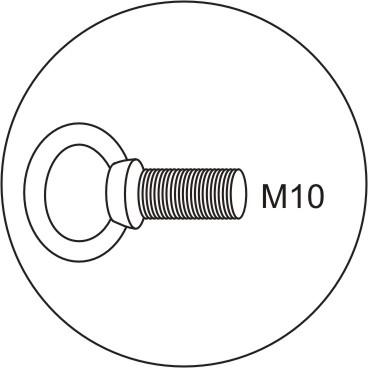

Eye Bolt M10

High-tensile ring bolt

Eye Bolt M10

Stock for approx. 12 wk(s)
9,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 30001166

Features

High-tensile ring bolt

  • For holding, carrying, suspending and securing
  • Can be used as attachment gear or connection element, e.g. for screwing into the flying points of a loudspeaker cabinet
  • Warning: the given working load limit (WLL) of this product is valid for holding and carrying loads with lifting gear. The WLL does not describe the maximum load for overhead rigging!
  • Thread: M10
Technical specifications
Material:C15E
Thread diameter:M10
Thread length:17 mm
Inner diameter:25 mm
Outer diameter:45 mm
Total length:62 mm
Weight:0,115 kg
Max. load WLL (4fold):230 kg
Length:62 mm
Maximum load BGV C1 (8-fold):115 kg
Packaging units
PU EAN Weight Dimensions
1 4026397578706 0,11 kg 6,5cm x 4,5cm x 2,5cm
50 4026397578690 5,48 kg 26cm x 28cm x 13cm
