OMNITRONIC Bundle MCS-1250 MK2

svg
svg
svg
svg
2 U
svg
svg
svg
OMNITRONIC



OMNITRONIC Bundle MCS-1250 MK2

Stock for approx. 12 wk(s)
1.499,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 20000961

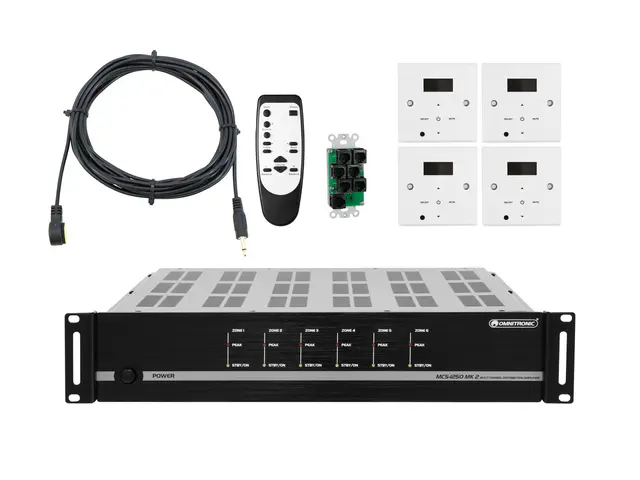

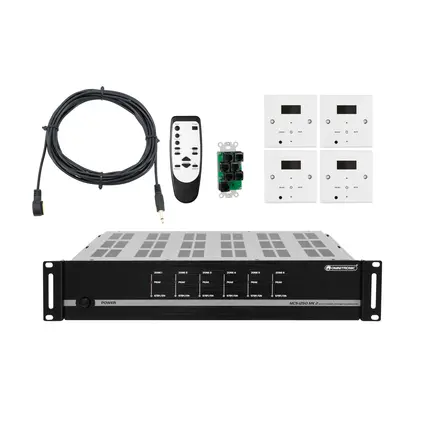

Set consisting of:
mpn10452480
1 x OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier
mpn10452483
4 x OMNITRONIC MCS-1250 MK2 Keypad
mpn10452484
1 x OMNITRONIC MCS-1250 MK2 Hub
mpn10452485
1 x OMNITRONIC MCS-1250 MK2 Remote Control
mpn10452486
1 x OMNITRONIC MCS-1250 MK2 IR Emitter
Features

OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier

6-zone audio amplifier with matrix assignment, 2 x 50 W / 4 ohms per zone

  • 6-zone stereo amplifier for multi-zone PA applications
  • Updated version with touch pad wall controller
  • 12 x 50 W/4 ohms per zone
  • Bridge mode with 100 W/8 ohms individually selectable per zone
  • Efficient Class D technology
  • 6 stereo inputs expandable to 18 stereo zones with further units
  • Matrix input assignment: input sources are freely assignable to each channel
  • 6 pre-amp outputs to connect external power amplifiers
  • Convenient control via touch pad wall controller or IR remote control
  • Wall controller allows selecting the audio source and volume, treble, bass adjustment for each zone individually
  • Signal inputs: 4 x stereo RCA, 2 x 3.5 mm jack and 1 x Toslink for digital audio signals
  • Automatic gain control selectable for level matching of signal sources
  • Terminals for IR emitters (accessory) allow extending the IR signals from the remote controls of the signal sources
  • RS232 port enables two-way communication with a home automation system
  • Trigger input for muting
  • 6 trigger outputs for switching external amplifiers
  • Control via IR remote control; RS 232
  • The device can be connected via RJ-45 (F) mounting version to the PC; The device can be connected via RS 232 to the PC
  • (19") 48.3 cm rack installation 2 U

Package contents

  • 1 x remote control

OMNITRONIC MCS-1250 MK2 Keypad

MCS-1250 MK2 touch pad wall controller

  • Wall controller with touch-sensitive surface (touch pad) for amplifier MCS-1250 MK2
  • Allows selecting and adjusting each zone individually: audio source, volume, treble, bass, mute, on/off
  • Wiring to amp via hub and network cable (RJ-45)
  • Control via IR remote control (optional)
  • Monochrome LCD display
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • Flush mounting

OMNITRONIC MCS-1250 MK2 Hub

MCS-1250 MK2 hub

  • Hub for connecting up to 6 wall controllers to the amplifier MCS-1250 MK2
  • The device can be connected via RJ-45 (F) mounting version to the PC
  • Flush mounting

OMNITRONIC MCS-1250 MK2 Remote Control

MCS-1250 MK2 IR remote control

OMNITRONIC MCS-1250 MK2 IR Emitter

IR remote emitter for MCS-1250 MK2

  • Operate your audio/video equipment in other rooms with your existing remote control
  • The MCS-1250 MK2 wall controller picks up the signal from your remote control and the IR emitter sends the signal to the A/V component
  • Supports all standard A/V components (HDD recorder, set-top box, satellite decoder and stereo) with an infrared sensor
  • 3.5 mm jack plug for connecting the MCS-1250 MK2 amplfier

Package contents

  • 1 x transmitter
Technical specifications
Weight:16,16 kg
OMNITRONIC MCS-1250 MK2 6-Zone PA Amplifier
Power supply:115/230 V AC, 50/60 Hz
Power consumption:1250 W
Output power:12 x 25 W RMS (8 ohms)
12 x 50 W RMS (4 ohms)
6 x 100 W RMS bridged (8 ohms)
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:20 - 20000 Hz
S/N ratio:>85 dB
THD:<0,1 % at 1 kHz
Impedance:Input: 47 kOhm
Control:IR remote control; RS 232
Circuitry:Class D
Control elements:Mode switch (stereo/bridged), power switch
Controls:Short-circuit; overheat; overload
Status LED:Standby, power, peak
Connections:Input: line via 4 x stereo RCA
Input: line via 2 x 3.5 mm jack (stereo) mounting version
Input: line via 1 x toslink
Input: Keypad via 1 x RJ-45 (F) mounting version
Input: IR-Extension/receiver via 7 x 3.5 mm jack (mono) mounting version
Input: Mute function via 1 x 3.5 mm jack (mono) mounting version
Output: Trigger via 6 x 3.5 mm jack (mono) mounting version
Output: speaker via 6 x screw plug-in terminal
Home automation via 1 x DB-9 (F) mounting version
Input sensitivity:250 mV
PC connect:Via RJ-45 (F) mounting version
Via RS 232
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 42 cm
Height: 8,9 cm
Weight:12,70 kg
Remote control
Battery:2 x 1.5 V AAA Micro R03 zinc carbon included
OMNITRONIC MCS-1250 MK2 Keypad
Control:IR remote control (optional)
Display type:Monochrome LCD display
PC connect:Via RJ-45 (F) mounting version
Housing design:Flush mounting
Dimensions:Width: 8,65 cm
Depth: 3,65 cm
Height: 8,65 cm
Weight:100 g
OMNITRONIC MCS-1250 MK2 Hub
PC connect:Via RJ-45 (F) mounting version
Housing design:Flush mounting
Dimensions:Width: 48,3 cm
Depth: 42 cm
Height: 8,9 cm
Weight:62 g
OMNITRONIC MCS-1250 MK2 Remote Control
Battery:2 x 1.5 V AAA Micro R03 zinc carbon included
Weight:68 g
OMNITRONIC MCS-1250 MK2 IR Emitter
Weight:20 g
Packaging units
PU EAN Weight Dimensions
1 4026397719543 17,00 kg
