RELACART Set UR-222S Bodypack with HM-600S Headset and Lavalier

svg
svg
svg
1,10 cm
svg
svg
1 U
svg
RELACART

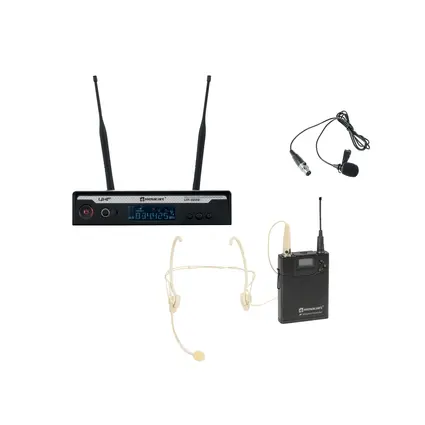

RELACART Set UR-222S Bodypack with HM-600S Headset and Lavalier

only a few items available
349,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 20000939
Set consisting of:
mpn13055205
1 x RELACART UR-222S 1-Channel UHF Receiver
mpn13055231
1 x RELACART UT-222 Bodypack with HM-600S Headset
mpn13055191
1 x RELACART LM-C420 Lavalier unidirectional
Features

RELACART UR-222S 1-Channel UHF Receiver

Multifrequency diversity wireless receiver

  • Multifrequency wireless receiver with high-quality diversity reception
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Pilot frequency squelch technology delete wireless RF interference
  • Automatic frequency scan (AFS) finds interference-free channels
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Delivery includes practical transport bag with jack cable and power adapter
  • Multicolor LCD display
  • UHF 863 - 865 MHz License-free and approved in europe
  • UHF 823 - 832 MHz License-free and approved in large parts of europe
  • Operating range up to 80m
  • Desktop console housing
  • (19") 48.3 cm rack installation possible 1 U

Package contents

  • 1 x receiver, 1 x external mains adapter, 2 x antenna, 1 x jack cable, 3 x mounting bracket, 8 x screw, 1 x user manual, 1 x declaration of conformity, 1 x bag

RELACART UT-222 Bodypack with HM-600S Headset

Bodypack transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

  • Durable aluminum alloy housing, applicable for touring
  • Pilot frequency squelch technology delete wireless RF interference
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Easy and error-free synchronization between receiver and transmitter via infrared signal
  • Mute function
  • Adjustable input gain
  • RF output power Hi/Low adjustable
  • Lock function for prevents undesired changes to settings

transmitter

  • OLED display
  • UHF 823 - 832 MHz License-free and approved in large parts of europe
  • UHF 863 - 865 MHz License-free and approved in europe
  • Operating range up to 80m

Microphone

  • Polar pattern: Omnidirectional
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

  • 1 x transmitter, 1 x microphone, 1 x windshield, 1 x user manual, 1 x declaration of conformity

RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

  • For attaching to the user's tie, shirt or collar
  • Connection via 4-pin mini XLR plug
  • Polar pattern: Cardioid
  • For application areas such as: Theater; product presentations and lectures

Package contents

  • 1 x microphone, 1 x windshield
Technical specifications
Weight:2,19 kg
RELACART UR-222S 1-Channel UHF Receiver
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:3 W
Power connection:Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
Number of channels:1
Frequency range:45 - 18000 Hz
S/N ratio:>105 dB
THD:<0,7 % at 1 kHz
Display type:Multicolor LCD display
Display:Charge level , antenna A/B , RF signal level , AF audio level; frequency
Control elements:Groundlift selector, menu, navigation keys
Connections:Antenna via 2 x BNC (F) 8 V
Output: Microphone via 1 x 3-pin XLR (M) mounting version
Output: Microphone via 1 x 6.3 mm plug (unbal.)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency selection:90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation:FM
Frequency stability:± 0,005 %
Range:Range up to 80m
Switching bandwidth:11 MHz
Switch:On/off switch
Diversity:Antenna diversity
Material:Metal
Color:Black
Housing design:Desktop console housing
(19") 48.3 cm rack installation possible 1 U
Dimensions:Width: 20 cm
Depth: 26 cm
Height: 4,4 cm
Weight:1,95 kg
RELACART UT-222 Bodypack with HM-600S Headset
Weight:210 g
Transmitter
Type:Bodypack with microphone
Power supply:3 V DC
Power connection:Battery/battery pack
Battery:2 x Mignon (AA) (not included)
Gain:0 dB
-6 dB
-12 dB
Display type:OLED display
Control elements:Transmitter power switch (high-low)
Connections:Output: Mini XLR (M) 4-pin mounting version
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:90 Switchable frequencys
In 10 groups with up to 10 preset frequencies each
Modulation:FM
RF power output:10 mW (LO); 40 mW (HI)
Range:Range up to 80m
Switching bandwidth:11 MHz
Switch:On/off/mute switch
Material:Aluminum
Color:Black
Dimensions:Width: 6,6 cm
Depth: 2,3 cm
Height: 8,4 cm
Weight:174 g
Microphone
Type:Headset
Power supply:2-10 V DC
Cable length:1,2 m
Capsule type:Condenser
Size: Ø 5 mm x 6 mm
Polar pattern:Omnidirectional
Frequency range:50 - 18000 Hz
Sensitivity:-47 dB
Impedance:1800 Ohm
Connector type:Mini XLR (F) 4-pin
Color:Skin-colored
Weight:28 g
RELACART LM-C420 Lavalier unidirectional
Type:Lavalier microphone
Power supply:2-10 V DC
Power connection:Mains input via Mini XLR (F) 4-pin
Cable length:1,2 m
Capsule type:Electret
Polar pattern:Cardioid
Frequency range:60 - 12000 Hz
S/N ratio:>59 dB
Sensitivity:-42 dB
Impedance:1800 Ohm
Switch:Without
Material:Aluminum
Color:Black
Dimensions:Length: 2,80 cm
Diameter: Ø 1,10 cm
Weight:20 g
Packaging units
PU EAN Weight Dimensions
1 4026397710939 3,50 kg
