OMNITRONIC PA Set PAS MK3 active DSP L

svg
svg
svg
svg
svg
OMNITRONIC



OMNITRONIC PA Set PAS MK3 active DSP L

Item no. 20000910

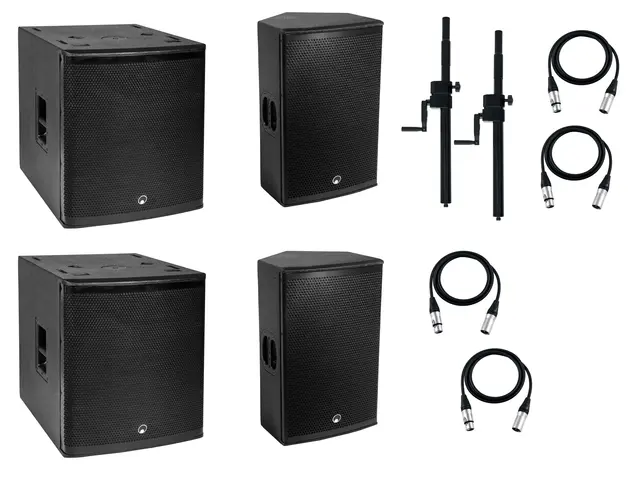

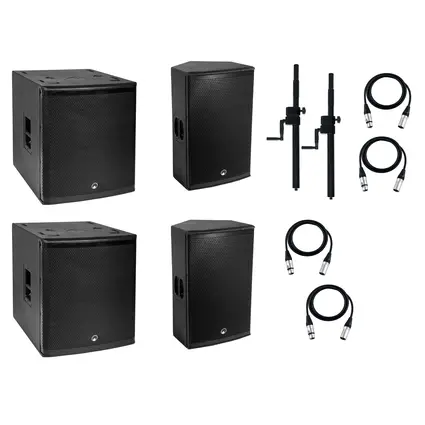

Set consisting of:
mpn11039491
2 x OMNITRONIC PAS-181A MK3 Subwoofer, active, DSP
mpn11039479
2 x OMNITRONIC PAS-212A MK3 2-Way Top, active, DSP
mpn60004559
2 x OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
mpn30227850
2 x PSSO XLR cable 3pin 10m bk Neutrik
mpn30227844
2 x PSSO XLR cable 3pin 3m bk Neutrik
Features

OMNITRONIC PAS-181A MK3 Subwoofer, active, DSP

Active 18" PA bassreflex subwoofer, 850 W RMS

  • Active PA subwoofer for touring applications and permanent installations
  • 46 cm (18") bass speaker with 100 mm voice coil
  • DSP-controlled class D amplifier with 850 watts power
  • XLR outputs with switchable high-pass filter, 120 Hz
  • Digital signal processor
  • 2 Rugged carrying handles
  • Wheels optional
  • Black metal grille with acoustic foam
  • DSP presets: FLAT; DJ; LIVE

Package contents

  • 1 x user manual, 1 x power cord, 1 x bass

OMNITRONIC PAS-212A MK3 2-Way Top, active, DSP

Active 12" PA speaker with DSP presets, 2 input channels, 450 W RMS

  • Active PA speaker system for touring applications and permanent installations
  • 2-way bass-reflex enclosure with 30 cm woofer and 2.5 cm compression driver
  • DSP-controlled class D amplifier with 450 watts power
  • Switchable low cut (120 Hz, 90 Hz)
  • 1 adjustable line input via XLR/6.3mm combo jack and RCA
  • 1 adjustable mic/line input via XLR/6.3mm combo jack
  • XLR output for linking further active speaker systems, switchable CH 1/CH 2
  • Optimized for combination with PAS subwoofers
  • Digital signal processor
  • 2 Rugged carrying handles
  • With rigging points
  • Black metal grille with acoustic foam
  • Application possibility: Standing; suspended; monitoring; on stand
  • DSP presets: FLAT; DJ; MONITOR
  • Dual flange

Package contents

  • 1 x compact cabinet speaker, 1 x user manual, 1 x power cord

OMNITRONIC Distance Tube Subwoofer/Satellite with Crank

Variable distance tube, M20 thread, height adjustable 80-110 cm, max. load 35 kg

  • Connecting tube for satellite systems
  • Powder-coated steel version
  • Adjustable height
  • M20 thread

Package contents

  • 1 x distance tube, 1 x user manual

PSSO XLR cable 3pin 10m bk Neutrik

Reliable microphone cable

  • High quality connection for microphones etc.
  • High conductivity
  • Slim and short construction
  • Built with NEUTRIK connector
  • Made in Germany

Package contents

  • 1 x xLR cable

PSSO XLR cable 3pin 3m bk Neutrik

Reliable microphone cable

  • High quality connection for microphones etc.
  • High conductivity
  • Slim and short construction
  • Made in Germany

Plug (male)

  • Built with NEUTRIK connector

Package contents

  • 1 x xLR cable
Technical specifications
Weight:143,72 kg
OMNITRONIC PAS-181A MK3 Subwoofer, active, DSP
Power supply:230 V AC, 50 Hz
Power consumption:1000 W
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power:Rated: 850W RMS
Frequency range:38 - 200 Hz
Max. SPL:127 dB
DSP:Digital signal processor
DSP presets:FLAT; DJ; LIVE
Attachment system:Flange: M20 thread
Circuitry:Class D
Control elements:Phase reversal switch
Controls:Power on/off transient; limiter
Status LED:Limit, power, signal, DSP presets
Connections:Input: 2 x 3-pin XLR
Output: 2 x 3-pin XLR
Input channels:Stereo via XLR, channel control via Rotary dial
Speaker:1 x woofer 18" with ferrit magnet
Basket material: aluminum
Voice coil lows 4"
Type of speaker:Subwoofer
Type of construction:Vented
Carrying handle:2 pc/pcs
Transport aid:Wheels optional
Material:Birch multiplex
Color:Black, textured coating, painted
Dimensions:Width: 54 cm
Depth: 68 cm
Height: 63 cm
Weight:46,00 kg
OMNITRONIC PAS-212A MK3 2-Way Top, active, DSP
Power supply:230 V AC, 50 Hz
Power consumption:500 W
Output power:450 W RMS
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Frequency range:60 - 20000 Hz
Max. SPL:125 dB
DSP:Digital signal processor
DSP presets:FLAT; DJ; MONITOR
Dispersion angle:90° x 60°
Attachment system:Dual flange: Ø 35mm (0°/5°)
Flying points:4 x M10 thread; 6 x M8 thread
Circuitry:Class D
Controls:Power on/off transient; limiter
Status LED:Limit, power, signal, DSP presets
Connections:Input: 2 x 3-pin XLR/6.35mm jack (F) combination socket (mounting version)
Input: 1 x stereo RCA
Link: 3-pin XLR
Input channels:1 x mono via XLR or RCA, channel control via Rotary dial
1 x mono with Mic-line switch via XLR, channel control via Rotary dial
Speaker:1 x compression tweeter highs 1" with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs 1,5"
Horn vent 1"
1 x woofer 12"
Voice coil lows 3"
Type of speaker:Compact cabinet speaker
Carrying handle:2 pc/pcs
Material:Birch multiplex
Color:Black, textured coating, painted
Dimensions:Width: 39 cm
Depth: 61,5 cm
Height: 38 cm
Weight:22,30 kg
OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
Maximum carrying capacity:35 kg
Height:Maximum: 110 cm
Minimum: 80 cm
Attachment system:Ø 35mm
Type (general stands):Distance tube
Color:Black
Thread:M20 thread
Weight:2,80 kg
PSSO XLR cable 3pin 10m bk Neutrik
Pin configuration:Pin 1 (GND) / Pin 2 (+) / Pin 3 (-)
Cable construction:3 x 0,22 mm² Audio cable
Cable length:10 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Use of brands:Built with NEUTRIK connector
Color:Black
Weight:540 g
PSSO XLR cable 3pin 3m bk Neutrik
Cable construction:2 x 0,22 mm² Audio cable
Cable length:3 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Color:Black
Weight:230 g
Plug (male)
Use of brands:Built with NEUTRIK connector
Material:Metal
Packaging units
PUEANWeightDimensions
14026397699845180,00 kg
