EUROLITE Set 4x LED PIX-12 HCL Bar + Case with wheels

Name: EUROLITE Set 4x LED PIX-12 HCL Bar + Case with wheels
Brand: EUROLITE
SKU: 20000890
Price: 1499.00 EUR
Availability: LimitedAvailability

mpn20000890-eurolite-set-4x-led-pix-12-hcl-bar-+-case-with-wheels-MainBild

mpn20000890-eurolite-set-4x-led-pix-12-hcl-bar-+-case-with-wheels-Bild-1

20°

EUROLITE Set 4x LED PIX-12 HCL Bar + Case with wheels

only a few items available

1.499,00 €

Find a dealer

Due to the dimensions of this article, different shipping conditions apply.

List price excl. 19% VAT
Prices in retail stores may vary.

Item no. 20000890

Print product

Product badge

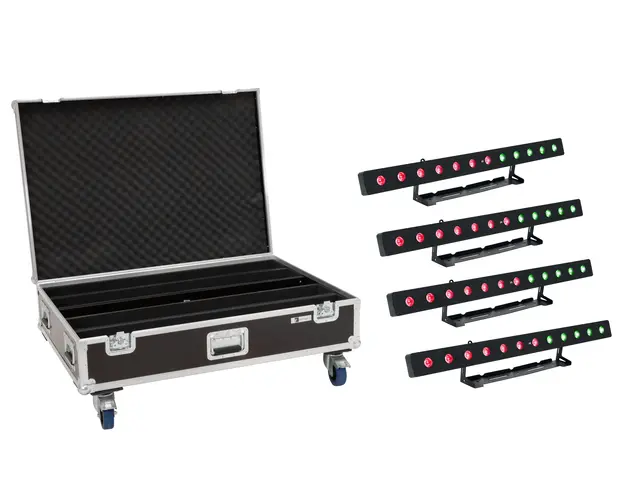

Set consisting of:

4 x EUROLITE LED PIX-12 HCL Bar

1 x ROADINGER Flightcase 4x LED IP T-PIX 8 QCL/T-PIX 12 HCL with wheels

Features

EUROLITE LED PIX-12 HCL Bar

LED bar (100 cm) with 12 x 10 W 6in1 LED (RGBWA+UV), pixel control

Operable in stand-alone mode or via DMX
Each LED can be controlled individually
Microphone sensitivity adjustable via Control Board
Comfortable addressing and setting via control board with LED display and four operating buttons
Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Functions: Static colors, RGBAWUV color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave
Equipped with 12 x 10 W 6in1LEDs in the colors red, green, blue, amber, white and UV
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
IEC terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
LED: 12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Can be operated in 4; 6; 16; 36; 74 CH mode
The device is cooled by cooling fan
Controlling by Stand-alone; DMX; Sound to light via Microphone
Is in Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
Flicker-free projection
Effect: Strobe effect; UV effect

ROADINGER Flightcase 4x LED IP T-PIX 8 QCL/T-PIX 12 HCL with wheels

Transport aid: With wheels
European engineering

Technical specifications

Weight:	45,60 kg
EUROLITE LED PIX-12 HCL Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	150 W
IP classification:	IP20
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED:	12 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
DMX channels:	4; 6; 16; 36; 74
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; Sound to light via Microphone; Light J Software; EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE
Beam angle:	20°
Beam angle (1/2 peak):	20°
Beam angle (1/10 peak):	41°
Housing color:	Black
Dimensions:	Length: 1 m Depth: 11,5 cm Height: 16,5 cm
Weight:	5,20 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
intended use:	show effect lighting
ROADINGER Flightcase 4x LED IP T-PIX 8 QCL/T-PIX 12 HCL with wheels
Maximum load:	100 kg
Outer diameter:	1,06 m x 74 cm x 40 cm
Device compartment:	1 m x 12 cm x 22 cm
Accessory compartment:	1,02 m x 10,5 cm x 22,5 cm
Weight:	24,80 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397694963	53,00 kg	120cm x 80cm x 80cm
