Technical specifications

Weight:	31.70 kg
EUROLITE AKKU IP PAR 14 HCL QuickDMX
Power supply:	100-240 V AC, 50/60 Hz
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Battery/battery pack built-in Via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output:	IP T-Con (F) mounting version
Battery pack:	Battery operation up to 26h depending on program used Recharging time 3h
Lamp type:	LED lamp
LED type:	14 x 10 W 6in1 RGBWA/UV (homogenous color mix)
Flash rate:	0 - 20 Hz
Equipment:	Frost filter
DMX channels:	2; 3; 6-1; 6-2; 12
DMX input:	3-pin XLR (M) mounting version IP
DMX output:	3-pin XLR (F) mounting version IP
Cooling:	Passive convection cooling
Control:	DMX; stand-alone; IR remote control; master/slave function; QuickDMX
Fixtures available for:	LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE; Light Captain; EASY SHOW 1; EASY SHOW 2; EASY SHOW 3; Light´J; Colorchief
Projection:	Flicker-free
Carrier frequency:	2.4 GHz
Beam angle (1/2 peak):	15° 27° 30° 60°
Color temperature:	2700K - 8000K adjustable
Housing color:	Black
Attachment system:	Double bracket
Display type:	LCD display
Material:	Aluminum casting
Dimensions:	Width: 31.7 cm Depth: 22.7 cm Height: 37.0 cm
Weight:	7.85 kg
Noise classification:	Class 0 (no noise at all)
Battery pack
Battery pack type:	1 x lithium ion 22.2 V, 4400 mAh, 97.68 Wh
Mounting bracket
Diameter mounting holes:	3 x Ø11mm
Material:	Metal, 3 mm
Power cord
Cable construction:	3 x 1.0 mm² H05RN-F
Cable length:	Approx. 1.2 m
XLR cable
Cable length:	Approx. 1.5 m
Plug A:	1 x 3-pin XLR (M)
Plug B:	1 x 3-pin XLR (F)
Frost filter
Diameter mounting holes:	2 x Ø4mm
Material:	Plastic, 2 mm
Dimensions:	Diameter: Ø 20.5 cm
Remote control
Battery:	1 x button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x TMH-30/40/60 with wheels
Maximum load:	50 kg
Transport aid:	Castors
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Compartment dimensions:	25.5 cm x 31 cm x 31 cm
Accessory compartment:	11.5 cm x 31 cm x 31 cm
Inside dimensions:	67 cm x 31 cm x 31 cm
Dimensions:	Width: 71 cm Depth: 35 cm Height: 53 cm
Weight:	16.00 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397689259	37,00 kg	120cm x 80cm x 60cm

Spare parts

switch (On/off) AKKU IP UP-4 QCL Spot QuickDMX 2-pin

Akku 22,2V/4400mAh AKKU IP PAR 14 HCL (TDB901) (Li-Ion)

Pcb (Display) AKKU IP PAR 14 HCL QuickDMX (P4-068 V2.2)

IC CN3705 5A,Multi-ChemistryBattery Charger 16Pin TSSOP

LED HCL 10W RGBWAUV PIX-6 HCL (TX-BGRWPY10B140-001E)

cover (glass/front) LED IP PAR 14x8W QCL Ø=212mm H=4mm

Seal (cover) LED IP Par 14 QCL/HCL (rear) 200mm

Seal (Cover) LED IP PAR 14x8W QCL (front) 220mm

Pcb (LED) AKKU IP PAR 14 HCL (L2-216 V1.0)

EUROLITE IR-7 Remote Control

locking screw M4/8mm thumbscrew

Pcb (Power supply) 28V/5,36A A PFC-150W28V

DIODE SCHOTTKY 3A/60V SS36 SMD DO-214AC

EUROLITE Diffuser Cover kit 1

housing part (Front Ring) AKKU IP PAR 14 HCL QuickDMX

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000824-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/9ZThONS_2I0

EUROLITE Set 2x AKKU IP PAR 14 HCL QuickDMX + Case with wheels

The article is no longer in our assortment.

No. 20000824

15°

27°

30°

60°

frost filter 20.5 cm

7 mm

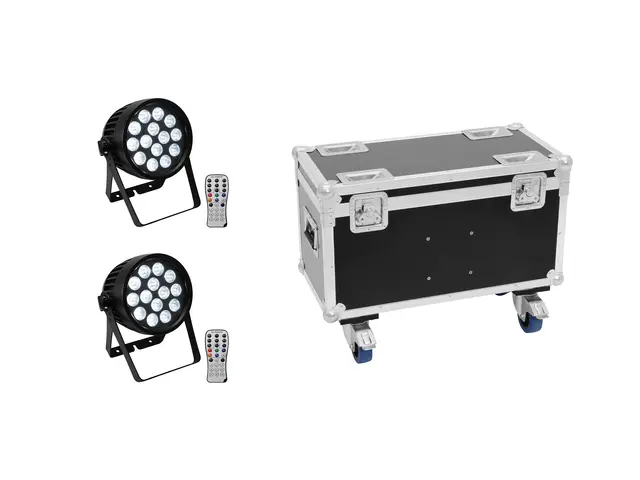

Set consisting of:

2 x EUROLITE AKKU IP PAR 14 HCL QuickDMX

1 x ROADINGER Flightcase 2x TMH-30/40/60 with wheels

EUROLITE AKKU IP PAR 14 HCL QuickDMX

IP65 battery-powered spotlight with RGBWA+UV LEDs, QuickDMX, frost filter and IR remote control

Integrated QuickDMX transceiver for wireless DMX control
Battery operation up to 26h depending on program used
14 LEDs 10 W 6in1 RGBWA/UV (homogenous color mix)
Frost filter
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic; Dimmer speed (step response) adjustable
Strobe effect
Integrated show programs
Direct color selection for 27 preset colors
The device is cooled by passive convection cooling
Control via DMX; stand-alone; IR remote control; master/slave function; QuickDMX
Flicker-free
With a beam angle of 15°
Variable color temperature 2700 K - 8000 K
With double bracket
LCD display
Mains input and output for power linking up to 8 units
Suitable for outdoor use
For application areas such as: Architecture; stage; wedding/gala/events; rental; video and photography
Silent operation
Application possibility: Standing; suspended; on stand

battery pack

Cordless, flexible and versatile

ROADINGER Flightcase 2x TMH-30/40/60 with wheels

PRO flightcase with castors for 2 x TMH-30/TMH-40/TMH-60

Developed for 51785980 EUROLITE LED TMH-30 Moving-Head Spot COB, 51785996 EUROLITE LED TMH-40 Moving-Head Wash, 51785984 EUROLITE LED TMH-60 Moving-Head Spot COB or comparable Moving Heads
Suitable for 2 units
Interior and cover (not removable) upholstered with foam
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Three-leg, medium-sized steel ball corners (chrome)
4 castors (100 mm), 2 of which with locking brakes
4 stacking dishes for stacking the cases
2 hinges
2 high-quality butterfly locks
2 chrome case handles
For perfect protection
Castors
Branded hardware
Made in Europe
