EUROLITE Set 2x LED TSL-250 Scan COB + Case

svg
svg
svg
7 mm
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

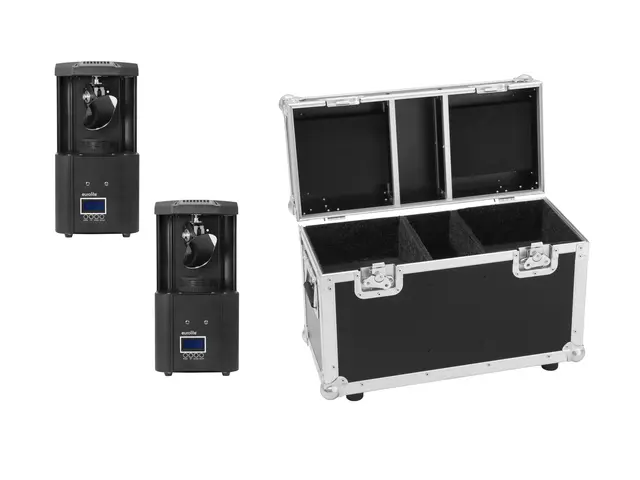

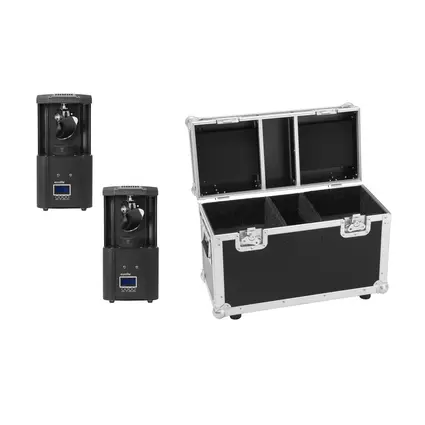

EUROLITE Set 2x LED TSL-250 Scan COB + Case

No. 20000820
Set consisting of:
mpn51786125
2 x EUROLITE LED TSL-250 Scan COB
mpn31005134
1 x ROADINGER Flightcase 2x LED TSL-150
Features

EUROLITE LED TSL-250 Scan COB

Handy scanner with 30 W COB LED, gobo and color wheel

  • Compact design
  • 1 powerful LED 30 W COB (chip-on-board)
  • Positioning within TILT
  • Color wheel; gobo wheel with rotating gobos; focus manual
  • Dimmer electronic
  • Color wheel with 7 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • Shake effect
  • Integrated show programs
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
  • Preprogrammed in Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
  • Flicker-free
  • With a beam angle of 9°
  • LCD display
  • Rubber feet
  • For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer
  • Application possibility: Standing; suspended; on stand

Package contents

  • 1 x device, 1 x user manual, 1 x power cord, 1 x mounting bracket, 2 x screw

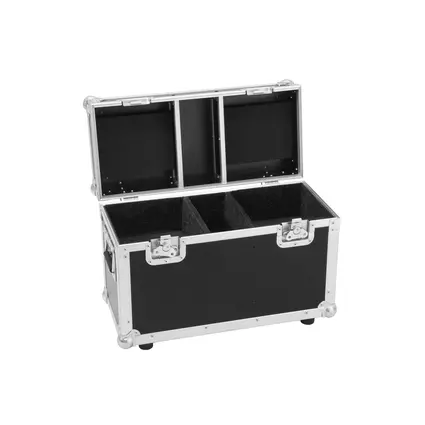

ROADINGER Flightcase 2x LED TSL-150

PRO flightcase for 2 x LED TSL-150

  • For optimal security
  • With accessory compartment
  • With 2 device compartments
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 30mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 high-quality butterfly locks
  • Rubber feet
  • Made in Europe
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:16,32 kg
EUROLITE LED TSL-250 Scan COB
Power supply:100-240 V AC, 50/60 Hz
Power consumption:65 W
IP classification:IP20
Protection class:Protection class I
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Device fuse:5 x 20 mm, T 1 A fuse replaceable
Lamp type:LED lamp
LED type:1 x 30 W COB (chip-on-board)
Equipment:Color wheel; gobo wheel with rotating gobos; focus manual
Color generation:Color wheel with 7 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 14mm
Image diameter 10mm
Gobos changeable
Slot-in gobo system for easy gobo replacement
Shake effect
DMX channels:10
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; master/slave function; sound to light via microphone; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:Flicker-free
Beam angle:
Beam angle (1/2 peak):
Illuminance in Lux (lx):Cold white (CW) 1m: 9123 lx, 3m: 955 lx, 6m: 149 lx
Housing color:Black
Display type:LCD display
Transport aid:Rubber feet
Dimensions:Width: 16,0 cm
Depth: 15,0 cm
Height: 33,0 cm
Weight:3,16 kg
Noise classification:Class 3 (clearly perceptible sounds)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x LED TSL-150
Maximum load:50 kg
Aluminum profile frames:30 mm
Case handle:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Transport aid:Rubber feet
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Device compartment:21,5 cm x 24,5 cm x 27 cm
Accessory compartment:11,5 cm x 24,5 cm x
Inside dimensions:54,5 cm x 24,5 cm x
Dimensions:Width: 61 cm
Depth: 29 cm
Height: 42,5 cm
Weight:10,00 kg
Packaging units
PUEANWeightDimensions
1402639768886320,00 kg82cm x 41cm x 52cm
Accessories
Loading accessories. Please wait...
Support
Downloads
Loading the documents. Please wait...
Manufacturer information
Steinigke Showtechnic GmbH
Andreas-Bauer-Str. 5
D-97297 Waldbüttelbrunn

+49 931 4061 600
info@steinigke.de
www.steinigke.de/support
