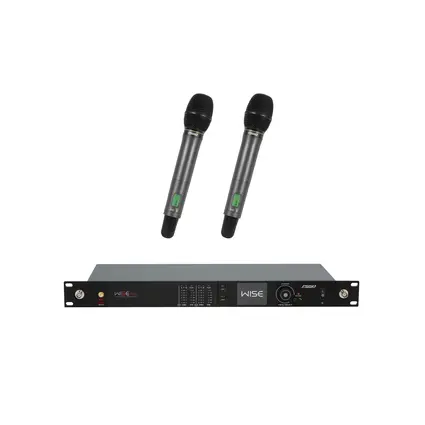

License-free true diversity wireless receiver incl. 2x microphone with PLL multifrequency transmitter
PSSO Set WISE TWO + 2x Con. wireless microphone 518-548MHz

svg
5,2 cm
svg
1 U
svg
svg
PSSO

License-free true diversity wireless receiver incl. 2x microphone with PLL multifrequency transmitter

PSSO Set WISE TWO + 2x Con. wireless microphone 518-548MHz

delivery date unknown
999,00
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 20000765
Set consisting of:
mpn13063391
1 x PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz
mpn13063393
2 x PSSO WISE Condenser Wireless Microphone 518-548MHz
Features

License-free true diversity wireless receiver incl. 2x microphone with PLL multifrequency transmitter

PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz

License-free true diversity wireless receiver with 2.4GHz iSync control management

  • Professional multifrequency wireless receiver with true diversity reception for stage use
  • High-grade components and intelligent features ensure best performance and high reliability
  • Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
  • 100 preset channels in 10 channel groups
  • 2.4 GHz iSync - real-time synchronization and monitoring
  • Automatic frequency setup
  • Pilot frequency squelch technology delete wireless RF interference
  • Multifunctional jogdial for menu settings
  • Lock function for prevents undesired changes to settings
  • Mic/line selector switch
  • 2 detachable BNC antennas allow for use with external antenna divider
  • USB port for software updates
  • 2 receivers can share a single power adapter
  • Multicolor LCD display
  • UHF 518 - 548 MHz License-free and approved in large parts of Europe
  • Operating range up to 60m with line-of-sight
  • (19") 48.3 cm rack installation 1 U

Package contents

  • 1 x receiver, 1 x external mains adapter, 1 x power cord, 3 x antenna, 2 x bNC cable, 1 x jack cable, 1 x adapter cable, 4 x foot, 2 x holder, 2 x windshield, 1 x user manual, 1 x declaration of conformity, 4 x battery

PSSO WISE Condenser Wireless Microphone 518-548MHz

Hand-held microphone with PLL multifrequency transmitter

  • Condenser hand-held microphone with UHF pilot tone technology (PLL)
  • Rugged, ergonomic aluminum housing
  • High-grade components and intelligent features ensure best performance and high reliability
  • 2.4 GHz iSync - real-time synchronization and monitoring
  • Editable user name and user color
  • RF output switchable
  • Gain level adjustable
  • Lock function for prevents undesired changes to settings
  • Directly compatible with Shure's SM58 capsule
  • Polar pattern: Cardioid
  • Operating range up to 60m with line-of-sight
  • Multicolor LCD display

Package contents

  • 1 x microphone, 1 x bag, 1 x user manual, 1 x declaration of conformity
Technical specifications
Weight:3,72 kg
PSSO WISE TWO 2-Channel True Diversity Receiver 518-548MHz
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12-15 V DC 1,5 A
Power consumption:8 W
Power connection:Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:2
Frequency range:50 - 20000 Hz
S/N ratio:>96 dB
THD:<0,1 % at 1 kHz
Gain:Microphone -32 dB to +4 dB
Output: -32 dB to +4 dB
Range:Range up to 60m with line-of-sight
Display type:Multicolor LCD display
Control elements:Power switch, groundlift selector, menu, encoder
Connections:Antenna via 2 x BNC (F) 12-15 V
Antenna via 1 x SMA (F) mounting version
Output: mic/line via 2 x 3-pin XLR
Output: mic/line via 2 x 6.3 mm jack socket (mono) mounting version
Output: for audio/data link via 2 x BNC (F)
Channels:Microphon chanal: 2 x mono with Mic-line switch via XLR or jack
Frequency band:UHF 518 - 548 MHz
Frequency selection:100 Switchable frequencies
In 10 groups
Frequencies automatically scannable
Modulation:FM
Switch:Low cut switch
Diversity:True diversity
Material:Metal
Color:Black
Housing design:(19") 48.3 cm rack installation 1 U
Dimensions:Width: 48 cm
Depth: 27 cm
Height: 4,3 cm
Weight:2,9 kg
PSSO WISE Condenser Wireless Microphone 518-548MHz
Type:Hand-held transmitter
Power supply:3 V DC
Capsule type:Condenser
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency range:50 - 18000 Hz
Gain:-32 dB to +4 dB
Range:Range up to 60m with line-of-sight
Display type:Multicolor LCD display
Control elements:Menu, navigation keys
Frequency band:UHF
Frequency selection:Switchable frequencies
Modulation:FM
RF power output:10 mW; 30 mW; 50 mW
Color code:Color indicator and name adjustable
Switch:On/off/mute switch
Material:Aluminum
Dimensions:Length: 26,5 cm
Diameter: Ø 5,2 cm
Weight:400 g
Packaging units
PUEANWeightDimensions
140263976853363,55 kg61cm x 31cm x 42cm
