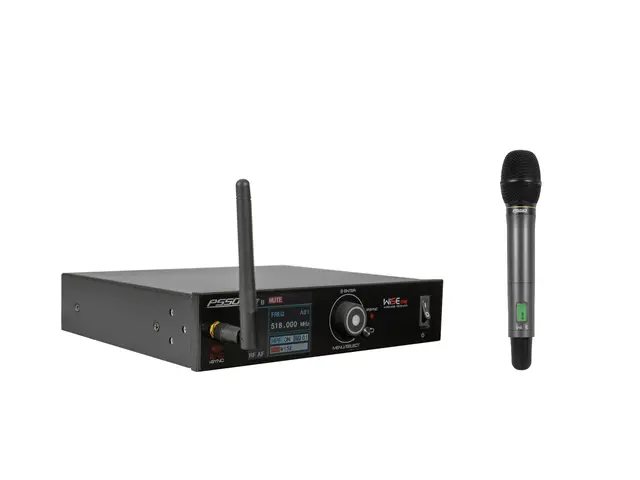

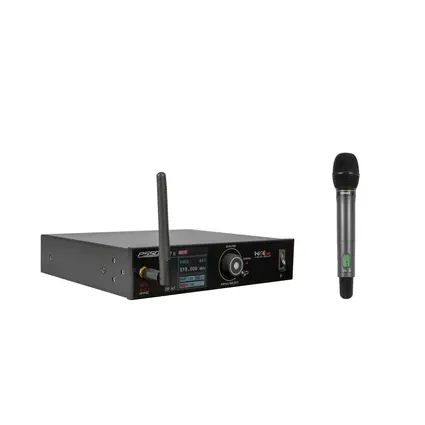

PSSO Set WISE ONE + Dyn. wireless microphone 518-548MHz

svg
5 cm
svg
svg
1 U
PSSO



PSSO Set WISE ONE + Dyn. wireless microphone 518-548MHz

this item is not in stock.
359,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000762

Features

13063390 PSSO WISE ONE 1-Channel True Diversity Receiver 518-548MHz

License-free true diversity wireless receiver with 2.4GHz iSync control management

  • Professional multifrequency wireless receiver with true diversity reception for stage use
  • High-grade components and intelligent features ensure best performance and high reliability
  • Ideal for large multi-channel systems (parallel operation possible up to 26 systems)
  • 100 preset channels in 10 channel groups
  • 2.4 GHz iSync - real-time transmitter synchronization and monitoring
  • Automatic frequency setup
  • Pilot tone technology (PLL) and noise squelch for interference-free operation
  • High-definition LCD color display
  • Multifunctional jogdial for menu settings
  • Lock function avoids accidental changing of settings
  • XLR and 6.3 mm jack output
  • Mic/line selector switch
  • Ground lift switch
  • 2 detachable BNC antennas allow for use with external antenna divider
  • USB port for software updates
  • Several receivers can share a single power adapter
  • Delivery includes practical transport bag with jack cable and power adapter
  • Matching transmitters optionally available
  • 483 mm rack installation possible with supplied mounting brackets
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
  • Use a operating range with line of sight up to 60m
  • Desktop console housing 1 U; (19") 48.3 cm rack installation (provided)

13063392 PSSO WISE Dynamic Wireless Microphone 518-548MHz

Hand-held microphone with PLL multifrequency transmitter

  • Dynamic hand-held microphone with UHF pilot tone technology (PLL)
  • Rugged, ergonomic aluminum housing
  • Matches receivers WISE ONE and WISE TWO
  • High-grade components and intelligent features ensure best performance and high reliability
  • 2.4 GHz iSync - real-time synchronization and monitoring through receiver
  • Editable user name and indicator light
  • High-definition LCD screen
  • RF output switchable 10mW/30mW/50 mW
  • Gain level adjustable
  • Lock function avoids accidental changing of settings
  • Delivery includes microphone holder
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Available frequency ranges: 518-548 MHz, 638-668 MHz, 823-832 MHz and 863-865 MHz
  • Polar pattern: Cardioid
  • Use a operating range with line of sight up to 60m
Technical specifications
Weight:2.67 kg
13063390 PSSO WISE ONE 1-Channel True Diversity Receiver 518-548MHz
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12-15 V DC 800 mA
Power consumption:10 W
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range:50 - 20000 Hz
S/N ratio:>96 dB
THD:<0.1 % at 1 kHz
Connections:2 x antenna via BNC (F) 12-15 V
Output: 1 x line via 3-pin XLR
Output: 1 x line via 6.3 mm jack socket (stereo) mounting version
Frequency band:UHF
Frequency selection:100 Switchable frequencys
In 10 groups
Modulation:FM
Range:60 m with line of sight
Housing design:Desktop console housing 1 U
(19") 48.3 cm rack installation (provided)
Dimension:Width: 21 cm
Depth: 27 cm
Height: 4.3 cm
Weight:1.2 kg
13063392 PSSO WISE Dynamic Wireless Microphone 518-548MHz
Type:Transmitter
Power supply:3 V DC
Capsule type:Dynamic
Polar pattern:Cardioid
Battery:2 x Mignon (AA) (not included)
Frequency range:50 - 18000 Hz
Frequency band:UHF
Frequency selection:Switchable frequencys
Modulation:FM
RF power output:10 mW; 30 mW; 50 mW
Range:60 m with line of sight
Switch:Mute control; on/off switch
Material:Aluminum
Dimension:Length: 25.5 cm
Diameter: Ø 5 cm
Weight:0.40 kg
Packaging units
PU EAN Weight Dimensions
1 4026397685305 2,85 kg 40cm x 33cm x 27cm
