Midsize spotlight with halogen lamp and LED ambient illumination incl. follow stand
EUROLITE Set ML-300 ABL Spot + STV-250

The article is no longer in our assortment.

No. 20000752

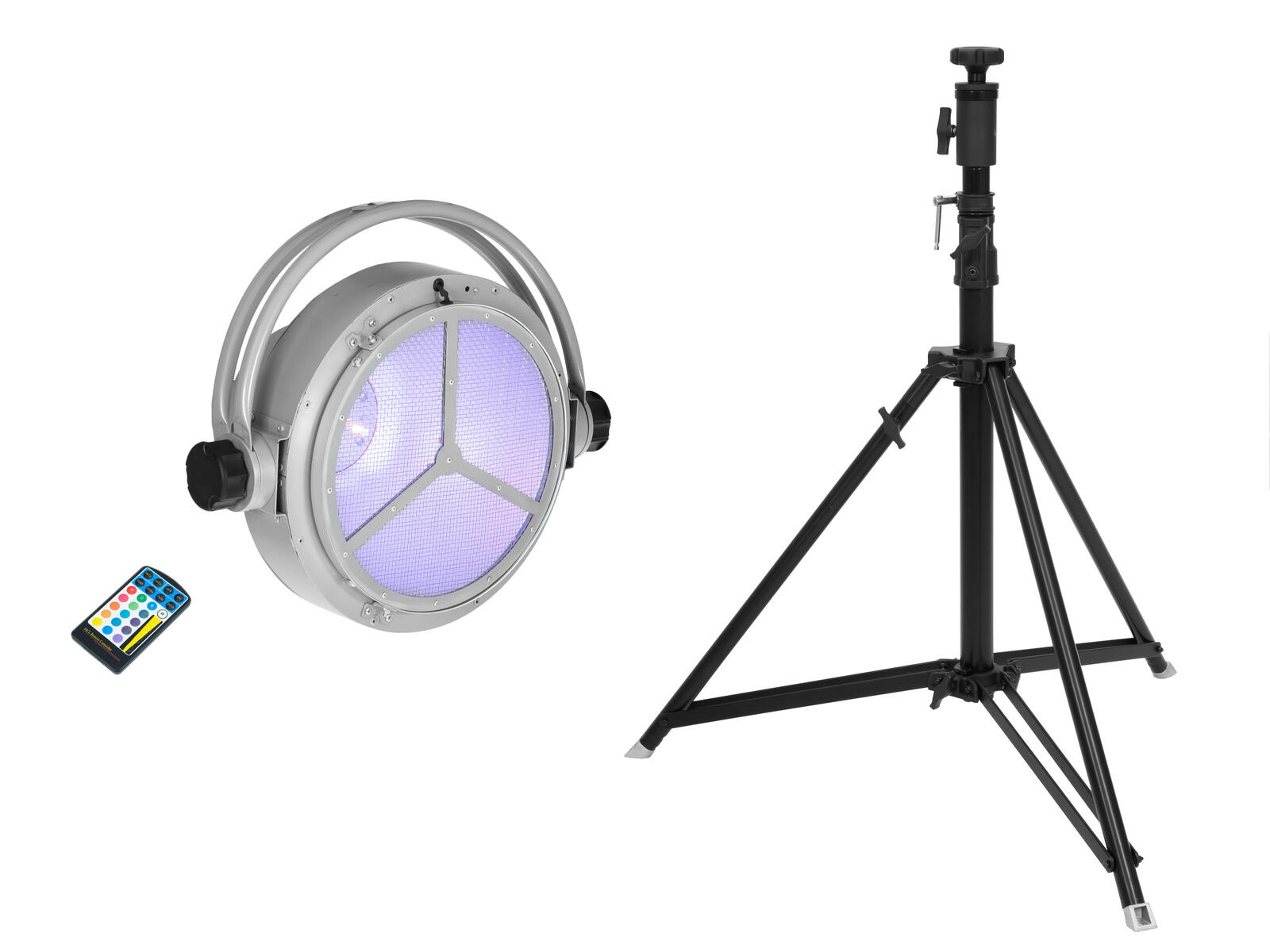

Set consisting of:

1 x EUROLITE ML-300 ABL Spot

1 x EUROLITE STV-250 Follow Spot Stand, black

Features

Midsize spotlight with halogen lamp and LED ambient illumination incl. follow stand

EUROLITE ML-300 ABL Spot

Midsize spotlight with halogen lamp and LED ambient illumination

RGB LEDs are concealed under the mesh cover, in order to completely illuminate the large reflector with color
When dimmed, the halogen lamp produces a wonderful, golden atmosphere light; when fully illuminated a bright, dazzling light
Strobe effect with adjustable speed
Various dimmer curves adjustable
Mains input and output for power linking up to 8 units
18 powerful LEDs 0,2 W SMD 5050 3in1 TCL RGB
Direct color selection for 35 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; IR remote control; DMX
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
With mounting bracket
LCD display

Package contents

EUROLITE STV-250 Follow Spot Stand, black

PRO follow stand for mobile lighting systems

Package contents

Technical specifications

Weight:	15,60 kg
EUROLITE ML-300 ABL Spot
Power supply:	230 V AC, 50 Hz
Power consumption:	315 W
IP classification:	IP20
Suitable lamp:	230 V/300 W G-9.5
Nominal wattage:	300 W
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	PowerCON (gray)
Base:	GY9.5
Lamp type:	Halogen lamp
LED type:	18 x 0,2 W SMD 5050 3in1 TCL RGB
Flash rate:	0 - 20 Hz
DMX channels:	1; 2; 4; 7
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; IR remote control; DMX
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Housing color:	Silver
Attachment system:	Mounting bracket
Display type:	LCD display
Dimensions:	Width: 53 cm Depth: 27,5 cm Height: 45,5 cm
Weight:	7,15 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
EUROLITE STV-250 Follow Spot Stand, black
Maximum carrying capacity:	50 kg
Height:	Maximum: 170 cm Minimum: 95 cm
Attachment system:	M10 thread Multi-angle ball head bracket with stainless steel rod
Type (general stands):	Light stand/manual
Material:	Aluminum; stainless steel
Color:	Black
Base area:	Ø 1,12 cm
Transport dimensions:	13 cm x 14 cm x 105 cm
Weight:	8,45 kg
