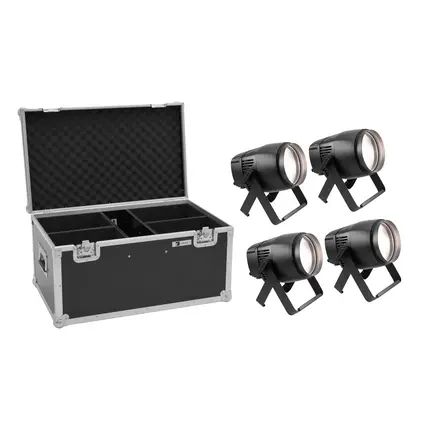

4x weather-proof LED spot with warm white 100 W LED including PRO flightcase
EUROLITE Set 4x LED IP Tourlight 120 WW + Case

svg
svg
svg
12°
svg
svg
svg
svg
svg
7 mm
svg
svg
EUROLITE

4x weather-proof LED spot with warm white 100 W LED including PRO flightcase

EUROLITE Set 4x LED IP Tourlight 120 WW + Case

Item no. 20000675
Set consisting of:
mpn51914251
4 x EUROLITE LED IP Tourlight 120 WW
mpn31005168
1 x ROADINGER Flightcase 4x LED IP Tourlight 120
Features

4x weather-proof LED spot with warm white 100 W LED including PRO flightcase

EUROLITE LED IP Tourlight 120 WW

Weather-proof LED spotlight (IP65) with warm white 100 W LED, CRI >95

  • Ideal for architectural and front lighting at open air events
  • 1 powerful LED 100 W COB (chip-on-board) warm white (WW)
  • The device is cooled by temperature-controlled fan
  • Control via DMX; Master/slave function
  • Flicker-free
  • With a beam angle of 12°
  • Very high color rendering index (CRI)
  • With Omega bracket; with double bracket
  • Suitable for outdoor use IP65
  • Exact 16 bit resolution at Dimmer
  • Dimmer curves with adjustable response; Dimmer speed (step response) adjustable
  • Strobe effect
  • Preprogrammed in LED PC-Control 512; Light Captain
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Installation; Stage; theater; architecture
  • Silent operation
  • Application possibility: Standing; suspended; on stand

Package contents

  • 1 x spotlight, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x cover

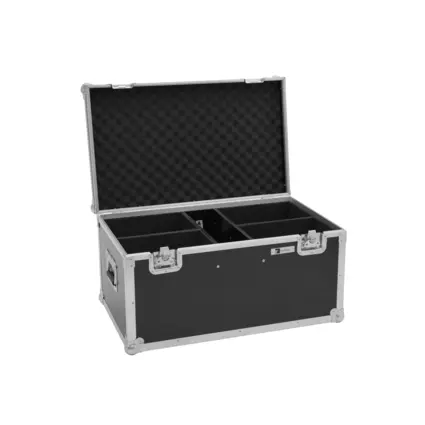

ROADINGER Flightcase 4x LED IP Tourlight 120

Trunk case, PRO version

  • For optimal security
  • With accessory compartment
  • High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
  • Interior with foam padding
  • Aluminum profile frames 30mm with rounded edges
  • 2 hinged, chromium plated case handles
  • 2 chrome tip-over locks
  • 2 high-quality butterfly locks
  • Branded hardware
  • For further information about this product, please refer to the Data Sheet under "Downloads"
Technical specifications
Weight:36,25 kg
EUROLITE LED IP Tourlight 120 WW
Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
IP classification:IP65
Power connection:Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Power output:1 x IP T-Con (F) mounting version
Lamp type:LED lamp
LED:1 x 100 W COB (chip-on-board) warm white (WW)
Color temperature:3200K
Flash rate:1 - 20 Hz
DMX channels:1; 3
DMX input:1 x 3-pin XLR (M) mounting version IP
DMX output:1 x 3-pin XLR (F) mounting version IP
Cooling:Temperature-controlled fan
Control:DMX; Master/slave function
Preprogrammed in:LED PC-Control 512; Light Captain
Projection:Flicker-free
Beam angle:12°
Beam angle (1/2 peak):12°
Beam angle (1/10 peak):26°
Color rendering index (CRI):96 Ra
Housing color:Black
Attachment system:Omega bracket
Double bracket
Dimensions:Width: 27 cm
Depth: 27 cm
Height: 30,5 cm
Weight:5,90 kg
Noise classification:Class 0 (no noise at all)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 4x LED IP Tourlight 120
Maximum load:50 kg
Aluminum profile frames:30 mm
Case handle:2 pc/pcs
Stop hinge:2 pc/pcs
Lock:Butterfly lock: 2 pc/pcs
Use of brands:Branded hardware
Material:Birch multiplex, 7 mm
Color:Dark brown, laminated
Device compartment:28 cm x 19 cm x 30,5 cm
Middle compartment:10,5 cm x 41 cm x 30,5 cm
Inside dimensions:66,5 cm x 41 cm x 30,5 cm
Dimensions:Width: 74 cm
Depth: 40 cm
Height: 45 cm
Weight:12,65 kg
Packaging units
PUEANWeightDimensions
14026397360424
