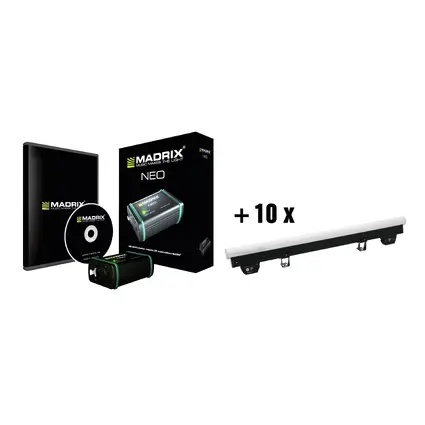

EUROLITE Set 10x LED PT-100 DMX Pixel Tube + MADRIX NEO - USB-DMX512-Interface

svg
120°
svg
svg
svg
svg
svg
svg
EUROLITE



EUROLITE Set 10x LED PT-100 DMX Pixel Tube + MADRIX NEO - USB-DMX512-Interface

this item is not in stock.
1.499,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000639

51860350 MADRIX NEO - USB DMX512 interface

MADRIX NEO is an easy to use and effective DMX512 USB interface. This DMX512 interface includes already a MADRIX 3 software license for 512 DMX channels.
You can use this interface to send or receive DMX512 using MADRIX.
MADRIX NEO comes in a robust enclosure made of light metal - ideal for the use on stages.
Features

51928603 EUROLITE LED PT-100 DMX Pixel Tube

DMX-controllable pixel tube

  • Tube with 144 LEDs: 48 x red, 48 x green, 48 x blue
  • Subdivided into 16 pixels (illumination units à 9 LEDs) which can be controlled individually by DMX
  • Can be cascaded as desired in order to build-up large effect areas
  • Operable in stand-alone mode or via DMX interface
  • DMX-512-connection via 5-pin XLR socket and plug
  • Sound-control via built-in microphone
  • Master/Slave for parallel operation of several devices
  • Comfortable addressing and setting via control panel with LED display and four operating buttons
  • Functions: static colors, automatic color change, seven internal programs with variable speed, dimmer settings via DMX
  • Adjustable white balance
  • Plastic housing with brackets for hanging as well as standing installation indoors
  • IEC terminals for power linking up to 8 units
  • Switch-mode power supply for operation between 100 and 240 volts
  • Control: Stand-alone; Sound to light via Microphone; DMX

51860350 MADRIX NEO - USB DMX512 interface

MADRIX USB/DMX interface to issue a DMX universe over XLR

  • MADRIX NEO is a reliable, easy-to-use, and high-quality DMX512 USB hardware interface including MADRIX software for LED control and MADRIX 3 software license
  • The interface can be used for DMX input or DMX output to connect DMX512 devices to your computer
  • The device allows you to control 512 DMX channels by sending or receiving data using MADRIX software
  • The MADRIX software license for 512 DMX channels per device is already included and automatically activated when connected to MADRIX
  • MADRIX NEO can be easily connected to your computer using the USB port
  • Features a 5-pin, female NEUTRIK XLR port
  • If you want to use DMX-IN, please use a 5-pin XLR male to 5-pin XLR male gender changer
  • Full USB 2.0 support, Power over USB, Hot Swapping, and Plug & Play
  • Multiple devices can be used together without problems
  • Solid metal enclosure with eye-catching design
  • MADRIX is a powerful, easy-to-use, and award-winning LED lighting control software
  • Allows you to realize all kinds of different LED projects and lighting designs
  • A normal PC/laptop can be used for professional LED control
  • Allows mapping in 2D (pixel mapping) as well as real, spatial 3D (voxel mapping)
  • The software generates unique effects, visuals, and animations live and in real time
  • No additional content is required
  • Already includes a multitude of stock effects that are fully customizable (in speed, color, shape, direction, size, movement, position, brightness, etc.)
  • Analyzes incoming audio signals Sound2Light and Music2Light in real time
  • New lighting scenes can easily be created in seconds
  • Variety of options to combine visuals and graphical elements (layers, mix modes, filters, etc.)
  • 256 x 256 Storage Places to organize and store effects
  • DJ-like operation with 2 decks (Left/Right) and a crossfader
  • 3 real-time previews to show your visual effects in advance (incl. 2D/3D, zoom, rotation)
  • Controls up to 4 color channels per pixel/voxel (e.g. 1-channel, 2-channel, RGB, RGBW fixtures)
  • Freely configurable Cue List for automated playback of a show (incl. time, date, duration, etc.)
  • Supports Time Code from Art-Net, MIDI, SMPTE, and system time
  • Remote control available via DMX-IN, Art-Net Remote, MIDI-IN, HTTP (internet browser), CITP
  • Accompanying Fixture Editor provided including large fixture library
  • Includes various other tools and features (DMX Fader Tool, DMX Watcher, Matrix Generator, Patch Editor, Touch Screen window, backup system, scripting, mapping, scaling, etc.)
  • MADRIX minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.0 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
  • MADRIX supported operating systems: Microsoft Windows Vista | 7 | 8 | 8.1 | 10 (compatible with 32 bit and 64 bit)
  • Installation instructions and software available in English, Spanish, French, and Simplified Chinese
  • User manual and quick start guide available in English
  • Made in Germany
  • Free software demo version, user manuals, and more information available at www.madrix.com
  • Package Contents: 1x MADRIX NEO - DMX512 interface, 1x USB cable, 1x Quick Start Guide, 1x CD-ROM with MADRIX - Software and drivers
  • Control: DMX via USB built-in
  • Made in Germany
Technical specifications
Weight:25,37 kg
51928603 EUROLITE LED PT-100 DMX Pixel Tube
Power supply:100-240 V AC, 50/60 Hz
Power consumption:17 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version via Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
LED:144 x 5 mm 3in1 TCL RGB (homogenous color mix)
Beam angle:120°
DMX channels:48
DMX input:1 x 5-pin XLR (M) mounting version
DMX output:1 x 5-pin XLR (F) mounting version
Cooling fan:No, cooling by convection
Control:Stand-alone
Sound to light via Microphone
DMX
Case color:Black
Length:100 cm
Height:15,3 cm
Depth:5,2 cm
Weight:2,00 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51860350 MADRIX NEO - USB DMX512 interface
Power supply:5 V DC 500 mA
Power connection:Mains input USB, type B via Power supply cord for USB A mains connection (provided)
DMX channels:512
DMX output:1 x 5-pin XLR (F) mounting version NEUTRIK
Control:DMX via USB built-in
USB port:2.0, Typ B
Width:7,8 cm
Height:3,5 cm
Depth:5,9 cm
Weight:0,24 kg
Packaging units
PU EAN Weight Dimensions
1 4026397422023 26,00 kg 100cm x 50cm x 50cm
