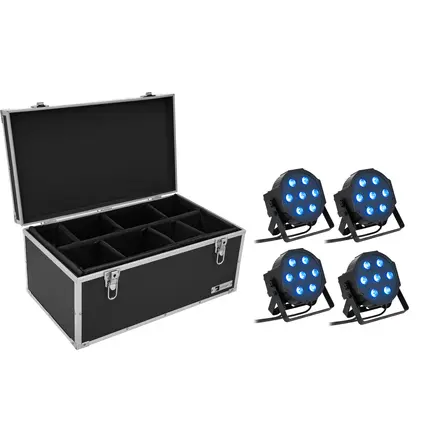

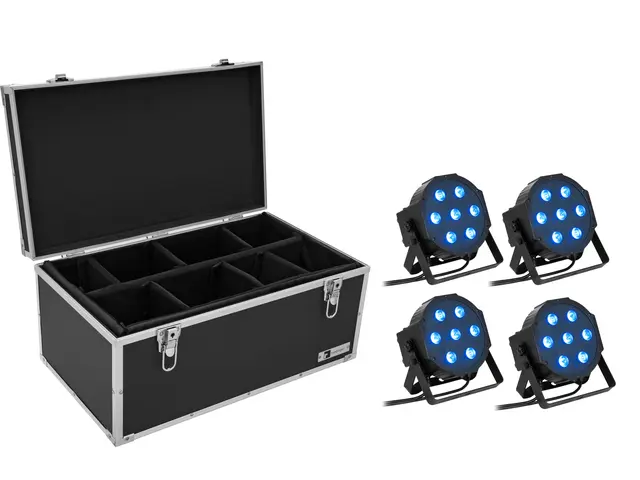

4x flat spotlight with 7 x 10 W 4in1 LED with RGB color mixing including case
EUROLITE Set 4x LED SLS- QCL Floor + Case TDV-1

svg
3 mm
svg
svg
svg
svg
21°
svg
svg
svg
svg
svg
EUROLITE

4x flat spotlight with 7 x 10 W 4in1 LED with RGB color mixing including case

EUROLITE Set 4x LED SLS- QCL Floor + Case TDV-1

No. 20000630
Set consisting of:
mpn51915377
4 x EUROLITE LED SLS-7 QCL 7x10W Floor
mpn30127200
1 x ROADINGER Universal Case Pick TDV-1
Features

4x flat spotlight with 7 x 10 W 4in1 LED with RGB color mixing including case

EUROLITE LED SLS-7 QCL 7x10W Floor

Flat spotlight with 7 x 10 W 4in1 LED with RGBW color mixing

  • Slim design for space-saving applications
  • 7 high-power 10 W RGBW LEDs (4in1)
  • Built-in auto and music show programs
  • Stepless color blend, color change, color fade, dimmer and strobe effect
  • Control panel with LED display for easy configuration
  • Flat, lightweight ABS housing with rubber feet
  • Sits flat on the floor or inside a truss
  • DMX and power terminals intelligently designed for easy wiring
  • Swivel mounting bracket
  • Mains input and output for power linking up to 8 units
  • 7 powerful LEDs 10 W high-power 4in1 QCL RGBW (homogenous color mix)
  • Strobe effect
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; sound to light via microphone; master/slave function
  • Preprogrammed in LED PC-Control 512; Light Captain
  • With a beam angle of 21°

Package contents

  • 1 x device, 1 x power cord, 1 x user manual

ROADINGER Universal Case Pick TDV-1

Universal case with flexible foam dividers

  • With dividers
  • High-quality workmanship with plastic 3 mm, black, imprinted
  • Interior with foam padding
  • Aluminum profile frames 12mm with rounded edges
  • Rugged carrying handle
  • 3 chrome tip-over locks
  • 2 high-quality spring locks with shut-off function
  • For further information about this product, please refer to the Data Sheet under "Downloads"

Package contents

  • 1 x case
Technical specifications
Weight:9,31 kg
EUROLITE LED SLS-7 QCL 7x10W Floor
Power supply:100-240 V AC, 50/60 Hz
Power consumption:63 W
IP classification:IP20
Protection class:Protection class II
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length:1,5 m
Power output:1 x IEC connector (F) mounting version
Fuse:5 x 20 mm, F 1 A fuse replaceable
Lamp type:LED lamp
LED type:7 x 10 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:5; 6; 8
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; sound to light via microphone; master/slave function
Preprogrammed in:LED PC-Control 512; Light Captain
Beam angle:21°
Beam angle (1/2 peak):21°
Beam angle (1/10 peak):41°
Housing color:Black
Dimensions:Width: 21 cm
Depth: 11 cm
Height: 22 cm
Weight:1,47 kg
Photobiological safety:Risk Group 0
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Universal Case Pick TDV-1
Maximum load:25 kg
Aluminum profile frames:12 mm
Carrying handle:1 pc/pcs
Stop hinge:3 pc/pcs
Lock:Spring lock: 2 pc/pcs with shut-off function
Material:Plastic, 3 mm
Color:Black, imprinted
Inside dimensions:52 cm x 28,5 cm x 20 cm
Dimensions:Width: 54 cm
Depth: 31 cm
Height: 26 cm
Weight:3,45 kg
