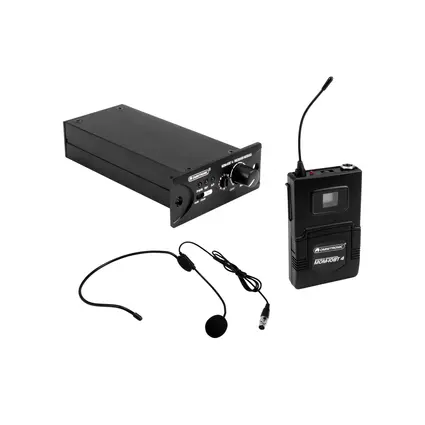

OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Headset microphone

svg
svg
OMNITRONIC



OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Headset microphone

Stock for approx. 12 wk(s)
89,90
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000619

Features

13106971 OMNITRONIC MOM-10BT4 Receiver Module

Receiving module for UHF frequencies (microphone + audio link signal)

  • For retrofitting the MOM-10BT4 modular PA system
  • Up to 4 receiving modules can be retrofitted
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power, carrier and audio signals
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range with line of sight up to 30m with line of sight

13106974 OMNITRONIC MOM-10BT4 Bodypack Transmitter

Bodypack transmitter with 16 UHF frequencies (823-832 & 863-865 MHz)

  • Matching the MOM-10BT4 receiver module
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • LCD for battery capacity and transmission channel
  • Sensitivity adjustable
  • Transmitting power 5 mW/10 mW, switchable
  • LED battery indicator
  • Belt clip
  • Headset microphone and lavalier microphone available as accessories
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range with line of sight up to 30m with line of sight

13106975 OMNITRONIC MOM-10BT4 Headset Microphone

Lightweight black headset microphone

  • Matching the MOM-10BT4 bodypack transmitter
  • With adjustable microphone boom for exact positioning of the microphone capsule
  • Provides high-quality voice pickup for applications requiring hands-free operation
  • Delivery includes foam windscreen
  • Low weight
Technical specifications
Weight:0.22 kg
13106971 OMNITRONIC MOM-10BT4 Receiver Module
Type:Receiver
Power supply:12 V DC 150 mA
Frequency range:50 - 15000 Hz
S/N ratio:>80 dB
THD:<0.1 % at 1 kHz
Sensitivity:-95 dB
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
Frequency stability:± 0.01 %
Range:30 m with line of sight
Width:7.1 cm
Height:3 cm
Depth:13.9 cm
Weight:0.090 kg
13106974 OMNITRONIC MOM-10BT4 Bodypack Transmitter
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Battery:2 x Mignon (AA) (not included)
Connector type:Mini XLR (M) 3-pin
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
RF power output:10 mW
Frequency stability:± 0.01 %
Range:30 m with line of sight
Switch:On/off switch
Material:Plastic
Width:6.6 cm
Height:10.8 cm
Depth:2.2 cm
Weight:0.10 kg
13106975 OMNITRONIC MOM-10BT4 Headset Microphone
Type:Headset
Power connection:Mains input Mini XLR (F) 3-pin
Capsule type:Condenser
Weight:0.03 kg
