OMNITRONIC Set MOM-10BT4 Receiver module + Audio link modul

svg
svg
OMNITRONIC



OMNITRONIC Set MOM-10BT4 Receiver module + Audio link modul

delivery date unknown
84,90
add to cart
Find a dealer
List price excl. 19% VAT
Prices in retail stores may vary.
Item no. 20000617

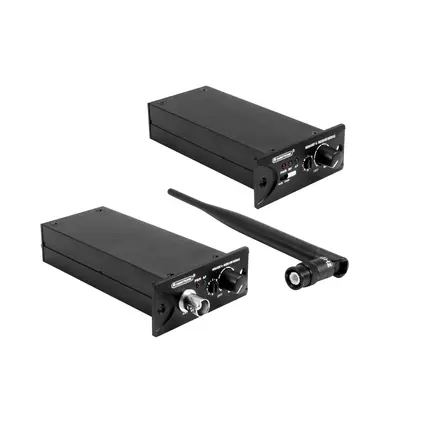

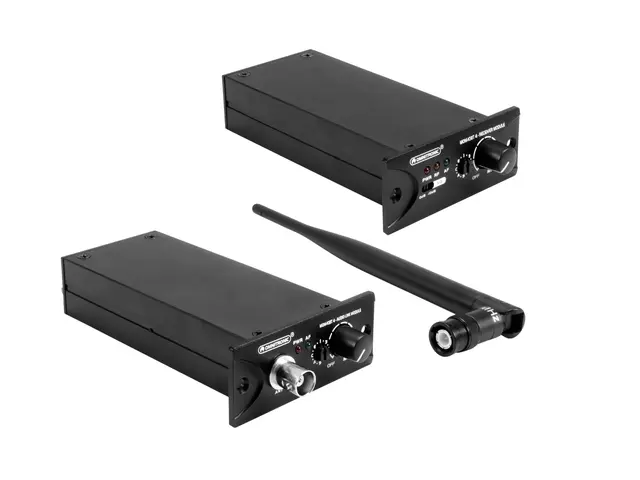

Set consisting of:
mpn13106971
1 x OMNITRONIC MOM-10BT4 Receiver Module
mpn13106972
1 x OMNITRONIC MOM-10BT4 Audio Link Module
Features

OMNITRONIC MOM-10BT4 Receiver Module

Receiver module for UHF frequencies (microphone + audio link signal)

  • For retrofitting the MOM-10BT4 modular PA system
  • Up to 4 receiving modules can be retrofitted
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power, carrier and audio signals
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Use a operating range up to 30m with line of sight

Package contents

  • 1 x Receiver, 1 x User manual, 1 x Declaration of conformity

OMNITRONIC MOM-10BT4 Audio Link Module

Transmitter module for audio transmission to MOM-10BT4 PA systems

  • For retrofitting the MOM-10BT4 modular PA system
  • For wireless audio transmission to receiving units of MOM-10BT4 PA systems (audio link mode)
  • 1 audio link module can be retrofitted
  • Transmission of the master in mono or stereo R
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power and audio signal
  • Detachable BNC antenna
  • License-free and approved in large parts of the EU (please check on a country-by-country basis)
  • Use a operating range up to 30m with line of sight

Package contents

  • 1 x Transmitter, 1 x Antenna, 1 x User manual, 1 x Declaration of conformity
Technical specifications
Weight:210 g
OMNITRONIC MOM-10BT4 Receiver Module
Type:Receiver
Power supply:12 V DC 150 mA
Frequency range:50 - 15000 Hz
S/N ratio:>80 dB
THD:<0,1 % at 1 kHz
Sensitivity:-95 dB
Control elements:Frequency selector switch, level control
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
Frequency stability:± 0,01 %
Range:30 m with line of sight
Dimensions:Width: 7,1 cm
Depth: 13,9 cm
Height: 3 cm
Weight:90 g
OMNITRONIC MOM-10BT4 Audio Link Module
Type:Transmitter
Power supply:12 V DC 150 mA
Control elements:Frequency selector switch, level control
Connections:Output: antenna via 1 x BNC (F)
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
RF power output:10 mW
Frequency stability:± 0,01 %
Range:30 m with line of sight
Dimensions:Width: 7,1 cm
Depth: 13,9 cm
Height: 3 cm
Weight:120 g
