EUROLITE Set 2x LED TMH-X7 Wash Zoom + Case

7 mm

3 - 55°

EUROLITE Set 2x LED TMH-X7 Wash Zoom + Case

The article is no longer in our assortment.

No. 20000603

Print product

Product badge

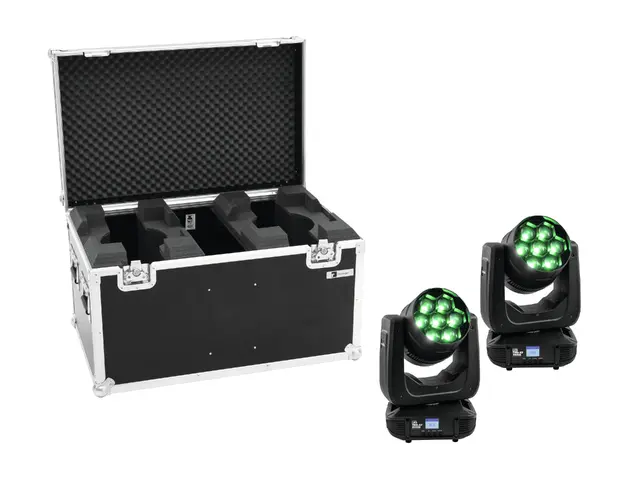

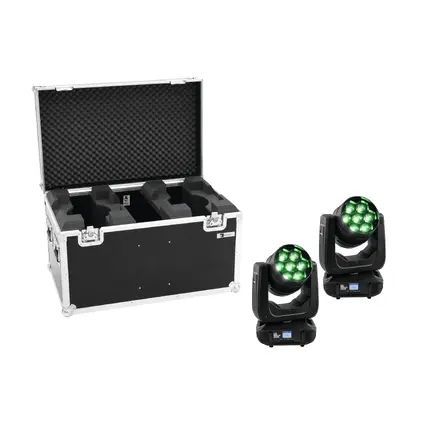

Set consisting of:

2 x EUROLITE LED TMH-X7 Moving-Head Wash Zoom

1 x ROADINGER Flightcase 2x LED TMH-X7 Moving head

Features

EUROLITE LED TMH-X7 Moving-Head Wash Zoom

Compact washlight, 7 intense 25 W LEDs (7in1), unique color mixing

Equipped with seven 25 W LEDs in the colors red, green, blue, amber, white, lemon and UV
Positioning within 540° PAN and 270° TILT
Stepless RGBAWL+UV color mixture
Color change with diverse settings
Color presets
Dimmer
Dimmer speed (step response) adjustable
Motorized zoom with 3-34° beam angle
Sound-control via built-in microphone; sensitivity adjustable
Strobe effect with adjustable speed, random strobe effect
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
PAN angle switchable between 540° and 360°
DMX-controlled operation or stand-alone operation with Master/Slave function
Control board with color LCD for adjusting the DMX-starting address, PAN/TILT Reverse, Reset
Switch-mode power supply for operation between 100 and 240 volts
Power connection via P-Con jack and included power cable with safety plug
7 powerful LEDs 25 W high-power 7in1 SCL RGBWAL/UV (homogenous color mix)
Positioning within 540° PAN, 270° TILT
PAN angle switchable between 540° and 360°
Auto position correction (feedback)
Exact positioning (16 bit resolution)
Zoom motor driven
The device is cooled by temperature-controlled fan
Control via DMX; stand-alone; sound to light via microphone
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free
With a beam angle of 3° - 55°

Package contents

1 x moving light, 1 x user manual, 1 x power cord, 2 x omega bracket, 1 x XLR cable

ROADINGER Flightcase 2x LED TMH-X7 Moving head

Trunk case, PRO version

For optimal security
With accessory compartment
With 2 device compartments
High-quality workmanship with birch multiplex 7 mm, black, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	37,80 kg
EUROLITE LED TMH-X7 Moving-Head Wash Zoom
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	135 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	7 x 25 W high-power 7in1 SCL RGBWAL/UV (homogenous color mix)
Max. TILT movement:	270° exact positioning (16 bit resolution) auto position correction (feedback)
Max. PAN movement:	540°, 360° exact positioning (16 bit resolution) auto position correction (feedback)
Flash rate:	0 - 18 Hz
Equipment:	Zoom motor driven
DMX channels:	20
DMX input:	1 x 3-pin XLR (M) mounting version 1 x 5-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version 1 x 5-pin XLR (F) mounting version
Cooling:	Temperature-controlled fan
Control:	DMX; stand-alone; sound to light via microphone
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle:	3° - 55°
Beam angle (1/2 peak):	3 - 34°
Beam angle (1/10 peak):	8 - 55°
Illuminance in Lux (lx):	Narrow red (R) 3m: 779 lx, 6m: 193 lx Wide red (R) 3m: 64 lx, 6m: 19 lx Narrow green (G) 3m: 1936 lx, 6m: 489 lx Wide green (G) 3m: 163 lx, 6m: 48 lx Narrow blue (B) 3m: 339 lx, 6m: 87 lx Wide blue (B) 3m: 29 lx, 6m: 9 lx Narrow cold white (CW) 3m: 2178 lx, 6m: 555 lx Wide cold white (CW) 3m: 183 lx, 6m: 55 lx Narrow amber (A) 3m: 732 lx, 6m: 182 lx Wide amber (A) 3m: 60 lx, 6m: 18 lx Narrow ultra violet (UV) 3m: 20 lx, 6m: 5 lx Wide ultra violet (UV) 3m: 2 lx, 6m: 0 lx Narrow lime 3m: 1780 lx, 6m: 455 lx Wide lime 3m: 148 lx, 6m: 45 lx Narrow all 3m: 6778 lx, 6m: 1719 lx Wide all 3m: 561 lx, 6m: 168 lx
Housing color:	Black
Dimensions:	Width: 29,1 cm Depth: 23,1 cm Height: 41,1 cm
Weight:	10,10 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 2x LED TMH-X7 Moving head
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm; birch multiplex
Color:	Black, laminated; dark brown, laminated
Middle compartment:	12 cm x 45 cm x 35 cm
Device compartment:	19 cm x 45 cm x 34 cm
Inside dimensions:	45 cm x 35 cm
Dimensions:	Width: 79 cm Depth: 50 cm Height: 49 cm
Weight:	15,60 kg
