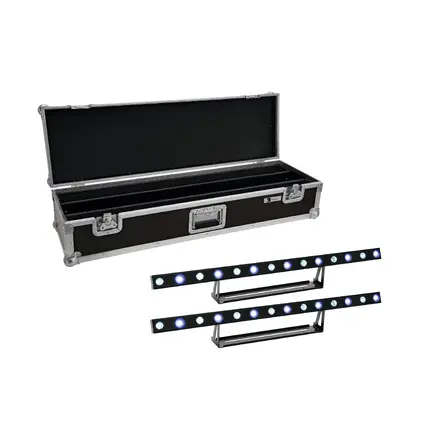

EUROLITE Set 2x LED STP-7 Beam/Wash Bar + Case

Name: EUROLITE Set 2x LED STP-7 Beam/Wash Bar + Case
Brand: EUROLITE
SKU: 20000576
Price: 649.00 EUR
Availability: InStock

2°

40°

Stock for approx. 12 wk(s)

649,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Features

51930390 EUROLITE LED STP-7 Beam/Wash Bar

LED light bar with 7 LEDs for beam and 7 LEDs for wash effects

Operable in stand-alone mode or via DMX
3, 4, 6, 10, 12, or 15 DMX channels selectable
Each beam LED can be controlled individually via DMX
Sound-control via built-in microphone with adjustable microphone sensitivity
Addressing and setting via control panel with 4-digit LED display
Functions: Static colors, RGB color blend, built-in show programs in auto and sound control modes, dimmer and strobe settings, Master/Slave
7 cold white 3 W LEDs for beam effects (beam angle 2°)
7 powerful 7 W RGB LEDs (3in1) for wash effects (beam angle 40°)
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
Fan-cooled
P-Con terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
LED: 7 x high-power 3 W CW (homogenous color mix)
LED: 7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
Control: Stand-alone; Sound to light via Microphone; DMX
Effect: Strobe effect

31005161 ROADINGER Flightcase 2x LED STP-7

PRO flightcase for 2 x Eurolite LED STP-7

Technical specifications

Weight:	9,50 kg
51930390 EUROLITE LED STP-7 Beam/Wash Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	180 W
IP classification:	IP20
Power connection:	Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided)
Power output:	1 x P-Con (gray), mounting version
LED:	7 x high-power 3 W CW (homogenous color mix)
	7 x high-power 7 W 3in1 TCL RGB (homogenous color mix)
Flash rate:	0 - 20 Hz
DMX channels:	3; 6; 4; 10; 12; 15
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	Stand-alone
	Sound to light via Microphone
	DMX
Beam angle (1/2 peak):	2°
	2° Spot
	40° Wash effect
Beam angle (1/10 peak):	71°
Housing color:	Black
Length:	100 cm
Height:	14 cm
Depth:	12 cm
Weight:	4 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
31005161 ROADINGER Flightcase 2x LED STP-7
Weight:	10,70 kg

Support

Spare parts

Loading spareparts. Please wait...

Downloads

All images

Name	Version	Language
20000576-Images.zip
