EUROLITE Set 4x LED PAR-64 COB 3000K 100W Zoom bk + Case

filter frame 19.8 cm

11 - 48°

7 mm

EUROLITE Set 4x LED PAR-64 COB 3000K 100W Zoom bk + Case

The article is no longer in our assortment.

No. 20000573

Print product

Product badge

Set consisting of:

4 x EUROLITE LED PAR-64 COB 3000K 100W Zoom bk

1 x ROADINGER Flightcase EP-64 4x PAR-64 Spot long

Features

EUROLITE LED PAR-64 COB 3000K 100W Zoom bk

PAR spot with warm white 100 W COB LED and manual zoom

Light performance comparable to a traditional 1000 W halogen spot light
Homogeneous light distribution
1 powerful LED 100 W COB (chip-on-board) warm white (WW)
Dimmer speed (step response) adjustable; Gamma correction adjustable; pulse-width modulation variable
Strobe effect
The device is cooled by cooling fan
Control via DMX
Preprogrammed in Light´J; Light Captain; Colorchief
Flicker-free
With a beam angle of 11° - 48°
Very high color rendering index (CRI)
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Theater; Trade fair and shop fitting; stage; rental
Application possibility: Suspended; on stand

Package contents

1 x spotlight, 1 x power cord, 1 x filter frame, 1 x XLR cable, 1 x mounting bracket, 2 x knurled screw, 2 x washer, 1 x user manual

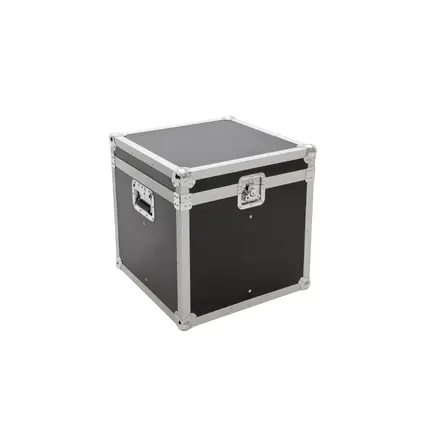

ROADINGER Flightcase EP-64 4x PAR-64 Spot long

Trunk case

With 4 device compartments
High-quality workmanship with birch multiplex 7 mm, black, laminated
Interior with felt cover
Aluminum profile frames 30mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
1 high-quality butterfly lock
Plastic feet
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	26.70 kg
EUROLITE LED PAR-64 COB 3000K 100W Zoom bk
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	110 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:	P-Con (gray), mounting version
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) warm white (WW)
Flash rate:	0 - 25 Hz
DMX channels:	1; 2; 3
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	DMX
Preprogrammed in:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
Beam angle:	11° - 48°
Beam angle (1/2 peak):	11 - 35°
Beam angle (1/10 peak):	15 - 48°
Color temperature:	3000K
Color rendering index (CRI):	91 Ra
Illuminance in Lux (lx):	Narrow warm white (WW) 3m: 15535 lx, 6m: 3666 lx Wide warm white (WW) 3m: 2387 lx, 6m: 654 lx
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Material:	Aluminum; metal
Dimensions:	Width: 26 cm Depth: 43.5 cm Height: 37.5 cm
Weight:	3.55 kg
Noise classification:	Class 2 (slight noise)
Power cord
Cable construction:	3 x 1.0 mm² H05VV-F
Cable length:	Approx. 1.5 m
Filter frame
Shape:	Octagonal
Material:	Aluminum, 0.5 mm
Dimensions:	Width: 24.8 cm Height: 24.8 cm Diameter: Ø 19.8 cm
XLR cable
Cable length:	Approx. 1.8 m
Color:	Black
Mounting bracket
Diameter mounting holes:	1 x Ø10mm; 2 x Ø8mm
Material:	Aluminum, 4 mm
ROADINGER Flightcase EP-64 4x PAR-64 Spot long
Maximum load:	50 kg
Aluminum profile frames:	30 mm
Case handle:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 1 pc/pcs
Transport aid:	Plastic feet
Material:	Birch multiplex, 7 mm
Color:	Black, laminated
Compartment dimensions:	23 cm x 23 cm x 41.5 cm
Inside dimensions:	46 cm x 46 cm x 41.5 cm
Dimensions:	Width: 52 cm Depth: 52 cm Height: 53 cm
Weight:	12.50 kg
