OMNITRONIC Set PODCAST

The article is no longer in our assortment.

Item no. 20000561

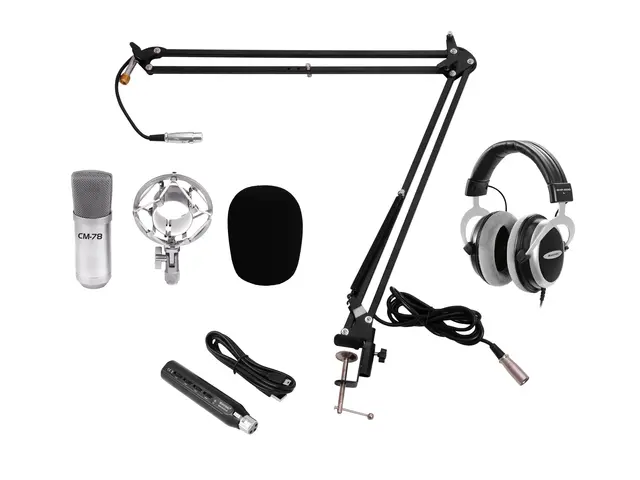

Set consisting of:

1 x OMNITRONIC MIC CM-78 Large Diaphragm Condenser Mic

1 x OMNITRONIC MDI-001XLR XLR USB Interface

1 x OMNITRONIC Table Microphone Arm TMA-1N

1 x OMNITRONIC SHP-600 Hi-Fi Headphones

Features

OMNITRONIC MIC CM-78 Large Diaphragm Condenser Mic

Large diaphragm condenser microphone for professional studio applications

High brilliance and particularly clear sound due to premium-grade electronic circuit and diaphragm capsule
Extra thin, gold-plated 34 mm diaphragm
Designed for professional studio applications and high-quality home recording
Ideal for almost every recording application from vocals to pianos and acoustic instruments
Cardioid pickup pattern with low self-noise and high maximum SPL
Robust metal body with silver-colored finish
48 V phantom power
Delivery includes shockmount with 16 mm thread (5/8"), windscreen and thread adapter (9 mm/3/8")
Supplied in an aluminum case
Polar pattern: Cardioid

Package contents

OMNITRONIC MDI-001XLR XLR USB Interface

USB interface with integrated preamplifier for XLR microphones

USB interface directly connects XLR microphones to your computer
For digital recordings of vocals, speech, instruments, podcasts and voice messaging
Plug & play - connects to PC and Mac without driver installation
Integrated studio-quality preamplifier with variable gain control
High-resolution A/D converter (16 bits/8-48 kHz) for high-end audio quality
+48 V phantom power for condenser microphones can be switched on
Stereo headphones output with separate volume control for zero-latency monitoring
Tone control for high and low frequencies
Delivery includes USB cable
Windows XP, Vista, 7 and Mac OS X 10.0 and better

OMNITRONIC Table Microphone Arm TMA-1N

Telescopic arm with XLR cable, can be mounted onto tabletops

Package contents

OMNITRONIC SHP-600 Hi-Fi Headphones

Hi-fi stereo headphones

Half-open, circumaural, dynamic stereo headphones
A powerful 53 mm neodymium magnet and a very lightweight aluminum voice coil provide for excellent sound
Well-padded, adjustable aluminum headband
Comfortable velour ear pads
Optimal wearer-comfort due to single OFC cable
Gold-plated 3.5 mm stereo jack with 6.3 mm adapter
For application areas such as: Mobile djs / entertainer; homerecording and studios

Package contents

Technical specifications

Weight:	2,52 kg
OMNITRONIC MIC CM-78 Large Diaphragm Condenser Mic
Type:	Studio microphone
Capsule type:	Condenser
Polar pattern:	Cardioid
Frequency range:	20 - 20000 Hz
S/N ratio:	>78 dB
Sensitivity:	-34 dB
Max. SPL:	132 dB
Phantom power:	Or 48 V DC
Impedance:	150 Ohm
Connections:	Microphone via 3-pin XLR
Switch:	Without
Weight:	1,24 kg
Holder
Weight:	193 g
Case
Weight:	732 g
Microphone
Weight:	315 g
Windshield
Weight:	3 g
OMNITRONIC MDI-001XLR XLR USB Interface
Frequency range:	20 - 20000 Hz
Dimensions:	Width: 12,3 cm Depth: 2,5 cm Height: 2,5 cm
Weight:	110 g
Power supply:	USB bus, max. 500 mA
A/D converter:	16 bits
Sampling frequency:	8-48 kHz
Microphone input:	3-pin XLR, bal.
Digital output:	USB mini-B
Headphones output:	3.5 mm stereo jack
OMNITRONIC Table Microphone Arm TMA-1N
Height:	Maximum: 105 cm Minimum: 43 cm
Type (general stands):	Microphone stand (desk)
Clamp area:	0 - 40 mm
Color:	Black
Weight:	780 g
OMNITRONIC SHP-600 Hi-Fi Headphones
Cable length:	3 m
Frequency range:	15 - 28000 Hz
Max. SPL:	93 dB
Rated power:	600 mW
Impedance:	60 Ohm
Connector type:	6.3 mm jack (stereo); 3.5 mm jack (stereo)
Connections:	Headphones via 6.3 mm jack (stereo) Headphones via 3.5 mm jack (stereo)
Speaker:	2" with neodymium magnet
Transducer type:	Dynamic
Type (Headphones):	Half open, earenclosing
Weight:	390 g
