3x LED strip with CRI >90 including 2x connector and transformer 24V
EUROLITE Set LED Strip 3000K 15m Constant Current + Trafo 24V

svg
svg
svg
EUROLITE

3x LED strip with CRI >90 including 2x connector and transformer 24V

EUROLITE Set LED Strip 3000K 15m Constant Current + Trafo 24V

No. 20000558

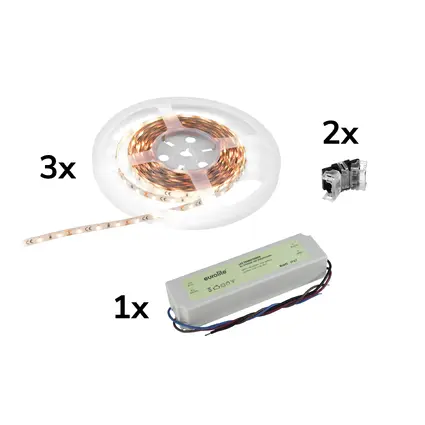

Set consisting of:
mpn50530105
3 x EUROLITE LED Strip 300 5m 3528 3000K 24V Constant Current
mpn51402228
1 x EUROLITE Electr. LED Transformer, 24V, 5A, IP67
mpn50530061
2 x EUROLITE LED Strip Connector 2-Pin 8mm
Features

3x LED strip with CRI >90 including 2x connector and transformer 24V

EUROLITE LED Strip 300 5m 3528 3000K 24V Constant Current

Flexible LED strip with a CRI >90 and 24 V constant current

  • Flexible LED strip for decorative lighting
  • Constant current technology for high efficiency, durability and homogeneous light distribution
  • Greater lengths do not lead to light fall-off and do not require multiple feeders
  • High-grade components and a solid construction guarantee a long service life and excellent color rendering
  • Can be cut into segments of variable size
  • Self-adhesive rear side
  • Supplied on a plastic reel
  • Power cable, straight and flexible plug connectors available as accessories
  • Dimmable
  • 300 powerful LEDs SMD 3528 warm white (WW)
  • Control via accessory
  • Very high color rendering index (CRI)
  • For application areas such as: Trade fair and shop fitting; clubs/dancing school; installation; restaurants, bars and hotels
  • Silent operation

Package contents

  • 1 x device, 1 x user manual

EUROLITE Electr. LED Transformer, 24V, 5A, IP67

Stabilized LED power supply unit DC 24 V, 5 A

  • Especially for LED installations
  • For indoors and outdoors (IP67)
  • Input voltage AC 100-240 V
  • Output voltage DC 24 V, 5 A
  • Protected against short circuit, overload, overheating and overvoltage
  • Noise filter
  • Connection via bare cable ends
  • L x W x H: 200 x 50 x 36 mm
  • 600 g

Package contents

  • 1 x external mains adapter
Technical specifications
Weight:0,84 kg
EUROLITE LED Strip 300 5m 3528 3000K 24V Constant Current
Power supply:24V AC 1000 mA
Power consumption:23 W
IP classification:IP20
Protection class:Protection class III
Power connection:Fixed supply cord with open wires
Lamp type:LED lamp
Lamp specification:Dimmable
LED type:300 x SMD 3528 warm white (WW)
Control:Accessory
Standing/fixation:Self adhesive
Color temperature:3000K
Color rendering index (CRI):91 Ra
Lamps/meter:60 pc/pcs
Power/meter:4,5 W
Lamps/tube:300 pc/pcs
Lamp distance:16 mm
Cutting mark:10 cm
Luminous flux (Lumen) per meter:420 lm/m
Housing color:White
Dimensions:Length: 500 cm
Width: 0,8 cm
Height: 0,2 cm
Weight:0,09 kg
Noise classification:Class 0 (no noise at all)
Energy efficiency class (A - G):F
EPREL-Nr:1425968
EUROLITE Electr. LED Transformer, 24V, 5A, IP67
Power connection:Fixed supply cord with open wires
Power output:1 x no connector/cable only
Dimensions:Width: 5 cm
Depth: 20 cm
Height: 3,6 cm
Weight:0,58 kg
EUROLITE LED Strip Connector 2-Pin 8mm
IP classification:IP20
Material:Plastic
Color:Black
Dimensions:Length: 2 cm
Width: 1,2 cm
Height: 0,7 cm
Weight:0,01 kg
