EUROLITE Set LED Strip RGB 5m + RF Controller + Wandpanel + Trafo 24V

Name: EUROLITE Set LED Strip RGB 5m + RF Controller + Wandpanel + Trafo 24V
Brand: EUROLITE
SKU: 20000557
Price: 119.00 EUR
Availability: InStock

mpn20000557-eurolite-set-led-strip-rgb-5m-+-rf-controller-+-wandpanel-+-trafo-24v-MainBild

mpn20000557-eurolite-set-led-strip-rgb-5m-+-rf-controller-+-wandpanel-+-trafo-24v-Bild-1

EUROLITE Set LED Strip RGB 5m + RF Controller + Wandpanel + Trafo 24V

Stock for approx. 12 wk(s)

119,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000557

Print product

Product badge

50530190 EUROLITE LED IP Strip 150 5m RGB 24V

With its numerous IP LED strips, Eurolite offers light on tape for outdoor use. Eurolite presents different stripes fulfilling the IP68 standard.

The flexible LED strips have a length of 5 meters. Unichrome versions - red, blue, green, yellow, cool white, warm white - are complimented by two RGB versions. The single colors can be ordered either with a wide span (150 LEDs) or with a short span (300 LEDs) between the LEDs. The RGB versions are available in 12 V or 24 operation - LED quantities are always 150. An optional LED controller controls the brightness and the speed of the RGB LEDs or provides automatic run of the built-in color programs.

Supplied on a plastic reel, the LED stripes feature a self adhesive rear side for simple installation. Color and form can be used as desired as the strips are very flexible and adaptable to really every venue.

Features

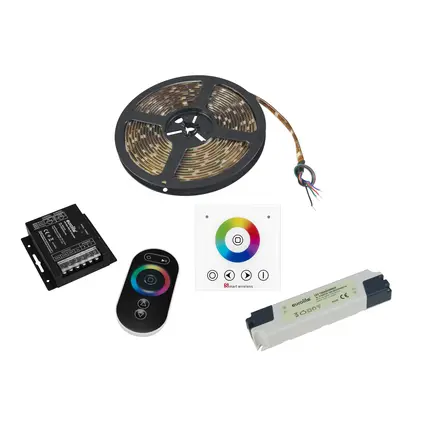

Set consisting of:
1x 50530190: EUROLITE LED IP Strip 150 5m RGB 24V
1x 50531103: EUROLITE LED Strip RGB RF Controller
1x 50531118: EUROLITE LED Strip Wall Panel for RGB RF Controller
1x 51402238: EUROLITE Electr. LED Transformer, 24V, 2A

50530190 EUROLITE LED IP Strip 150 5m RGB 24V

Flexible RGB LED strip for indoor and outdoor use, 24 V

Flexible LED strip for decorative lighting
Perfect for indirect lighting, custom-made versions for fair or shop applications as well as all kinds of background lighting
150 super-bright SMD 5050 LEDs
For indoor and outdoor use (IP44)
Can be cut into segments of variable size (groups of 5 LEDs)
Self-adhesive rear side
Supplied on a plastic reel
Matching control units, power units and mounting materials optionally available
Control: with LED controller
Positioning: Self adhesive

50531103 EUROLITE LED Strip RGB RF Controller

3-channel LED controller with wireless remote control for RGB LED strips 12-24V

For controlling RGB LED strips 12-24 V
Ergonomic, user-friendly wireless remote control
Color selection via touch-sensitive color wheel
10 built-in programs
Adjustable program speed and brightness
Power supply via 3 x battery AAA size (included)
Transmission frequency 433.92 MHz
Operating range 20 m
Screw terminals for connecting the LEDs and the power supply
RJ45 jacks for serial connection

Remote control

Battery: 1.5V AAA Micro LR03 alkaline manganese (provided)

50531118 EUROLITE LED Strip Wall Panel for RGB RF Controller

Wireless wall dimmer for RGB LED strips

For controlling RGB LED strips 12-24 V
LED controller 50531103 is required for operation
Color wheel selection
10 built-in programs
Adjustable program speed and brightness
Transmission frequency 433.92 MHz
Operating range 20 m
Terminals for connecting the power supply (100-240 V)
Suitable for flush-mounted sockets, device screw spacing: 60 mm

51402238 EUROLITE Electr. LED Transformer, 24V, 2A

Stabilized LED power supply unit DC 24 V, 2 A

Especially for LED installations
Indoor use only
Input voltage AC 100-240 V
Output voltage DC 24 V, 2 A
Protected against short circuit, overload, overheating and overvoltage
Connection via bare cable ends
L x W x H: 175 x 40 x 25 mm
150 g

Technical specifications

Weight:	0,09 kg
50530190 EUROLITE LED IP Strip 150 5m RGB 24V
Power supply:	24 V DC 1,5 A
Power consumption:	35 W
IP classification:	IP65
Protection class:	Protection class III
LED power (watts) per meter:	7,2 W/m
Cutting mark:	167 mm
Power connection:	Power supply cord with special socket
LED:	150 x SMD 5050 3in1 TCL RGB (homogenous color mix)
Control:	with LED controller
LED per meter:	30
Housing color:	White
Length:	500 cm
Width:	1 cm
Weight:	0,20 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
50531103 EUROLITE LED Strip RGB RF Controller
Power supply:	12-24 V DC
Power consumption:	max. 360 W 12 V DC
	max. 720 W 24 V DC
	120 W 12 V DC each chanal
	240 W 24 V DC each chanal
Power connection:	Mains input screw terminal
Power output:	1 x screw terminal
Range:	20 m
Carrier frequency:	433,920 MHz
Length:	9 cm
Width:	9 cm
Height:	2,4 cm
Weight:	0,30 kg
Remote control
Battery:	1.5V AAA Micro LR03 alkaline manganese (provided)
Width:	5,6 cm
Height:	2,2 cm
Depth:	11,3 cm
Legal specifications
Ecodesign regulation:	Yes
50531118 EUROLITE LED Strip Wall Panel for RGB RF Controller
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	max. 1 W
Power connection:	Mains input screw terminal
Power output:	1 x screw terminal
Range:	20 m
Carrier frequency:	433,920 MHz
Length:	8,6 cm
Width:	8,6 cm
Depth:	3,4 cm
Weight:	0,13 kg
Legal specifications
Ecodesign regulation:	Yes
51402238 EUROLITE Electr. LED Transformer, 24V, 2A
Power connection:	Mains input screw terminal
Power output:	2 x screw terminal
Width:	4 cm
Height:	2,5 cm
Depth:	17,5 cm
Weight:	0,14 kg
