OMNITRONIC Set UHF-502 Receiver + 2x Transmitter + 2x Headset 863-865 MHz

OMNITRONIC Set UHF-502 Receiver + 2x Transmitter + 2x Headset 863-865 MHz

The article is no longer in our assortment.

No. 20000524

Print product

Product badge

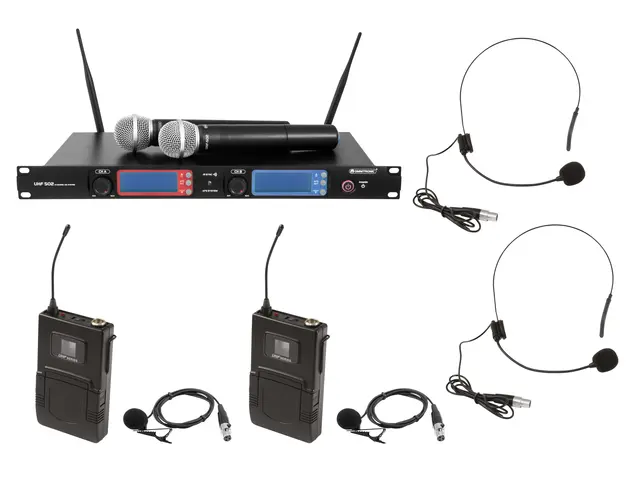

Set consisting of:

1 x OMNITRONIC UHF-502 2-Channel Wireless Mic System 863-865 MHz

1 x OMNITRONIC UHF-502 Bodypack incl. 863-865MHz, Lavalier (CH A red)

1 x OMNITRONIC UHF-502 Bodypack 863-865MHz, incl. Lavalier (CH B blue)

2 x OMNITRONIC UHF-502 Headset for Bodypack

Features

OMNITRONIC UHF-502 2-Channel Wireless Mic System 863-865 MHz

2-channel UHF PLL microphone system

2-channel multifrequency receiver unit and 2 hand-held microphones with UHF PLL technology
80 fixed frequencies selectable per channel
Pilot tone technology (PLL) and noise squelch for interference-free operation
Automatic frequency scan (AFS) finds interface-free channels
Easy and error-free synchronization between receiver and transmitters via infrared signal
LCDs for RF reception level, AF audio level, frequency and channel
Parallel operation of up to 4 transmission channels is possible without any interference
Lock function avoids accidental changing of the transmission channel
2 separate channels with volume controls
Balanced XLR output per channel
6.3 mm jack for mixed signal output, switchable mic/line
Jack cable included
Non-diversity system with two removable antennas (BNC connection)
Microphones with mute switch and color caps for distinction on stage
Operation of the receiver unit via supplied power unit
Operation of the microphones via 2 x 1.5 V batteries (type AA), not included
Receiver unit with aluminum front panel and dimensions for 483 mm rack installation (1U)
License-free and approved in the EU
Polar pattern: Cardioid
Operating range up to 50m with line-of-sight
UHF 863 - 865 MHz License-free and approved in Europe
(19") 48.3 cm rack installation

Package contents

1 x microphone, 1 x receiver

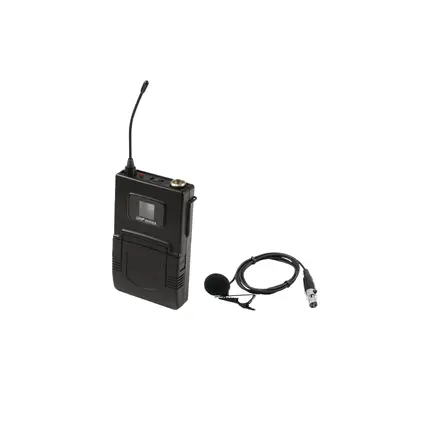

OMNITRONIC UHF-502 Bodypack incl. 863-865MHz, Lavalier (CH A red)

Bodypack transmitter with lavalier microphone

Pocket transmitter for UHF-502 microphone system with the same carrier frequency
Incl. lavalier microphone
Headset microphone optional
Pilot tone technology (PLL) for interference-free operation
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
LCD for battery capacity and transmission channel
Sensitivity adjustable
Transmitting power 5 mW/10 mW, switchable
LED battery indicator
Belt clip
Operation via 2 x 1.5 V batteries (type AA), not included
License-free and approved in the EU
Polar pattern: Cardioid
UHF 863 - 865 MHz License-free and approved in Europe

OMNITRONIC UHF-502 Bodypack 863-865MHz, incl. Lavalier (CH B blue)

Bodypack transmitter with lavalier microphone

Pocket transmitter for UHF-502 microphone system with the same carrier frequency
Incl. lavalier microphone
Headset microphone optional
Pilot tone technology (PLL) for interference-free operation
Infrared interface for easy and error-free synchronization with the receiver via infrared signal
LCD for battery capacity and transmission channel
Sensitivity adjustable
Transmitting power 5 mW/10 mW, switchable
LED battery indicator
Belt clip
Operation via 2 x 1.5 V batteries (type AA), not included
License-free and approved in the EU
Polar pattern: Cardioid
UHF 863 - 865 MHz License-free and approved in Europe

OMNITRONIC UHF-502 Headset for Bodypack

Headset for UHF-502 bodypack transmitter

Lightweight design for optimum wearer comfort
Gooseneck
One-sided cable run
Connection cable with 3-pin mini XLR plug
Foam windscreen
Color: black
Polar pattern: Cardioid

Technical specifications

Weight:	2,75 kg
OMNITRONIC UHF-502 2-Channel Wireless Mic System 863-865 MHz
Type:	Wireless set
Power consumption:	5 W
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Capsule type:	Dynamic
Polar pattern:	Cardioid
Frequency range:	40 - 18000 Hz
S/N ratio:	>80 dB
Sensitivity:	-95 dB
Range:	Range up to 50m with line-of-sight
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Switchable frequencies
Material:	Metal
Housing design:	(19") 48.3 cm rack installation
Weight:	2,46 kg
Microphone
Battery:	4 x Mignon (AA) (not included)
Switch:	On/off switch; mute control
Weight:	0,230 kg
Receiver
Dimensions:	Width: 48,3 cm Depth: 25,3 cm Height: 4,45 cm
Weight:	1,9 kg
System:	Non-diversity, 2 channels
Color code:	CH A = red, CH B = blue
Receiving frequencies:	80
RF power output:	10 mW
Modulation method:	FM
Frequency stability:	10 ppm
Selectivity:	>80 dB
T.H.D.:	<0.1 %
Audio outputs:
Mic:	2 x XLR, bal.
Mix:	6.3 mm jack, unbal.
Power supply:
Receiver:	12 V DC via supplied power unit (100-240 V AC, 50/60 Hz)
Dimensions, weight:
Microphones:	50 x 240 mm (D x L), 230 g (w/o batteries)
OMNITRONIC UHF-502 Bodypack incl. 863-865MHz, Lavalier (CH A red)
Type:	Bodypack with microphone
Capsule type:	Condenser
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 15000 Hz
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Switchable frequencies
Switch:	On/off switch
Dimensions:	Width: 6,6 cm Depth: 2,2 cm Height: 10,8 cm
Weight:	0,12 kg
Color code:	CH A = red, CH B = blue
Receiving frequencies:	100
Coverage:	50 m (with line-of-sight)
RF power output:	5 mW (LO), 10 mW (HI)
Modulation method:	FM
Frequency stability:	10 ppm
S/N ratio:	>90 dB
T.H.D.:	<1 %
Audio input:	mini XLR (supplies 5 V)
Power consumption:	approx. 100 mA
Lavalier microphone:
Type:	Electret
Directivity pattern:	Cardioid
Sensitivity:	-47 dB
Impedance:	680 ohms
S/N ratio:	>63 dB
Power supply:	2-10 V DC
Connection:	cable with 3-pin mini XLR plug
Cable length:	approx. 1 m
Capsule:	9.7 x 5.2 mm
OMNITRONIC UHF-502 Bodypack 863-865MHz, incl. Lavalier (CH B blue)
Type:	Bodypack with microphone
Capsule type:	Condenser
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	50 - 15000 Hz
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Switchable frequencies
Switch:	On/off switch
Dimensions:	Width: 6,6 cm Depth: 2,2 cm Height: 10,8 cm
Weight:	0,120 kg
Color code:	CH A = red, CH B = blue
Receiving frequencies:	100
Coverage:	50 m (with line-of-sight)
RF power output:	5 mW (LO), 10 mW (HI)
Modulation method:	FM
Frequency stability:	10 ppm
S/N ratio:	>90 dB
T.H.D.:	<1 %
Audio input:	mini XLR (supplies 5 V)
Power consumption:	100 mA (LO), 130 mW (HI)
Lavalier microphone:
Type:	Electret
Directivity pattern:	Cardioid
Sensitivity:	-47 dB
Impedance:	680 ohms
S/N ratio:	>63 dB
Power supply:	2-10 V DC
Connection:	cable with 3-pin mini XLR plug
Cable length:	approx. 1 m
Capsule:	9.7 x 5.2 mm
OMNITRONIC UHF-502 Headset for Bodypack
Type:	Headset microphone
Capsule type:	Condenser
Polar pattern:	Cardioid
Frequency range:	50 - 15000 Hz
Frequency selection:	Switchable frequencies
Weight:	0,03 kg
Type:	Electret
Directivity pattern:	Cardioid
Sensitivity:	-49 dB
Impedance:	680 ohms
S/N ratio:	>63 dB
Power supply:	2-10 V DC
Connection:	cable with 3-pin mini XLR plug
Cable length:	approx. 1 m
Capsule:	D = 9.7 mm
