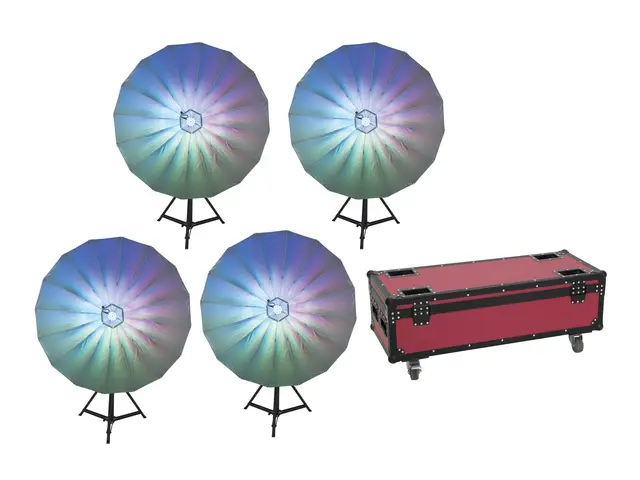

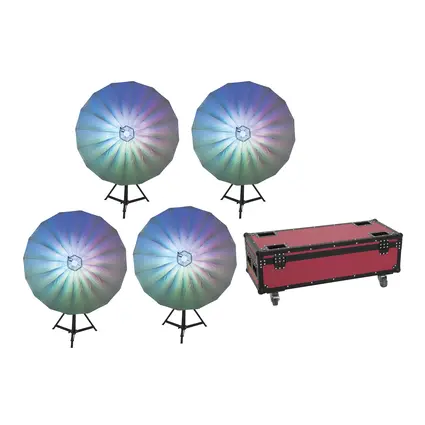

4x LED Umbrella including flightcase with castors
EUROLITE Set 4x LED Umbrella 140 + Case

1,4 m

7 mm

The article is no longer in our assortment.

Item no. 20000521

Set consisting of:

4 x EUROLITE LED Umbrella 140

1 x ROADINGER Flightcase 4x LED Umbrella

Features

4x LED Umbrella including flightcase with castors

EUROLITE LED Umbrella 140

Extraordinary RGB eye-catcher

DMX-controllable lighting effect umbrella with 114 SMD RGB LEDs, distributed in 7 segments
Segments can be controlled individually via DMX
6 segments make the surface of the umbrella shine, one segment in the middle shines directly at the audience
Perfect as stage background and eye-catcher for decorative purposes in shops, display windows, fair stands, hotels, bars and clubs
Can be mounted to a lighting stand or trussing - the umbrella's angle can be adjusted
Easy transport (can be folded), setup and installation
Covers a large area with a diameter of 140 cm
Built-in auto and music show programs
Supports QuickDMX - the wireless DMX-system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Stepless RGB color mixture, dimmer and strobe effect
Addressing via control panel with 4-digit LED display
Appropriate control unit included in the delivery
Power connection via P-Con jack and included power cable with safety plug
114 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix)
The device is cooled by passive convection cooling
Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Flicker-free

Package contents

1 x omega bracket, 1 x device, 1 x user manual, 1 x power cord, 1 x multi-pin cable, 1 x umbrella

ROADINGER Flightcase 4x LED Umbrella

Trunk case with castors

With 4 Device compartments
High-quality workmanship with plywood multi-layer glued 7 mm, red, laminated
Interior with foam padding
Aluminum profile frames 30mm with rounded edges
4 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 castors with 2 locking brakes
4 built-in stacking trays in the cover
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

EUROLITE LED Umbrella 140
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	20 W
IP classification:	IP20
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
LED:	114 x SMD 5050 3in1 TCL RGB (homogenous color mix)
DMX channels:	6; 24
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	Stand-alone; DMX; Sound to light via Microphone; Master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Preprogrammed in:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Dimensions:	Diameter: Ø 1,4 m
Weight:	3,07 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x LED Umbrella
Maximum load:	100 kg
Aluminum profile frames:	30 mm
Case handle:	4 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover
Material:	Plywood multi-layer glued, 7 mm
Color:	Red, laminated
Accessory compartment:	98,5 cm x 12,5 cm x 20 cm
Device compartment:	18,5 cm x 24 cm x 20 cm
Inside dimensions:	92,5 cm x 36,5 cm x 20 cm
Dimensions:	Width: 1,04 m Depth: 43 cm Height: 41 cm
Weight:	18,50 kg
