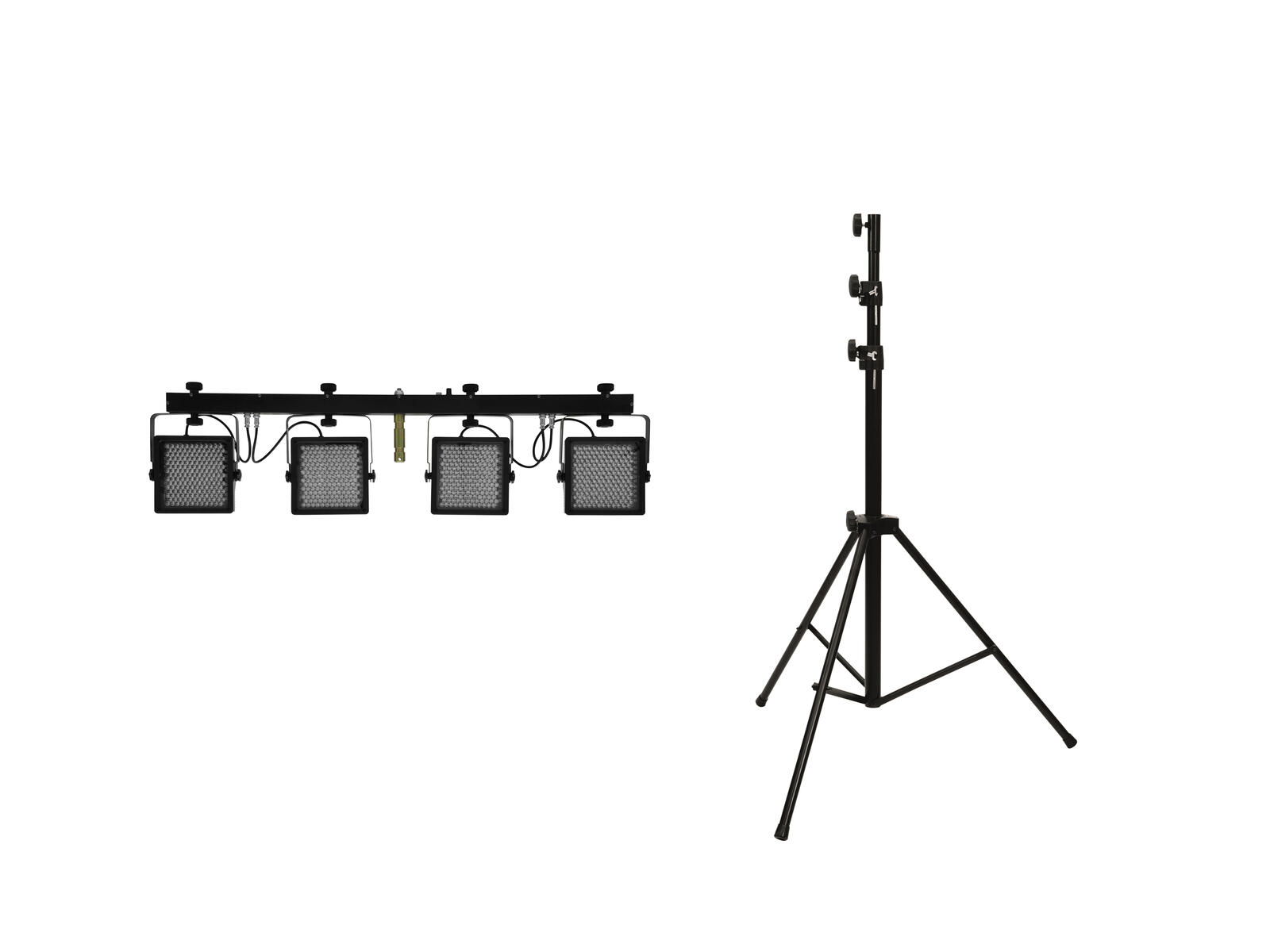

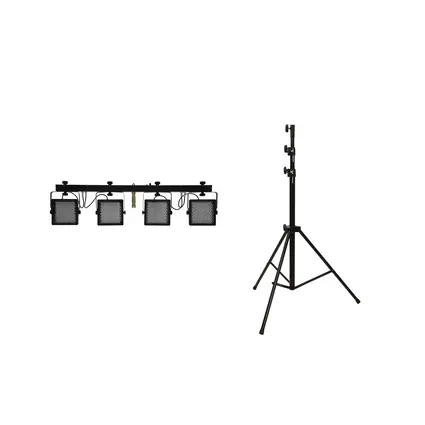

EUROLITE Set LED KLS-401 + STV-50-WOT EU Steel stand

25°

The article is no longer in our assortment.

Features

42109781 EUROLITE LED KLS-401 Compact Light Set

Bar with 4 spots with 108 LEDs (RGB) each, inclusive transport bag

Complete LED light set with four slimline LED spots
Crossbar with integrated DMX control unit
Installation via TV pin for tripods with 28 mm interior diameter
Ultra-light ideally suited for mobile use
Comes pre-assembled with practical transport bag
180 x 10 mm LED per spot (60 x red, 60 x green, 60 x blue)
Movable and tiltable spotlights
DMX-controlled operation or stand-alone operation with processor-controlled color change
Master/Slave operation
Sound-control via built-in microphone with sensitivity control
Convenient control possible via optional 4-pedal foot pedal FP-1 or IR remote control
DMX512 control via regular DMX controller (occupies 15 channels)
Optimized for control with the optional control panel DMX LED Operator 4
Via DMX, each spot can be individually controlled
DMX functions: dimmer, automatic mode, music control, strobe effect
Addressing and setting via control panel with 4-digit LED display
Suited for installation on a lighting stand (not included)
Black lacquered metal version
Ideal for bands, stages or solo entertainers
Ready for connection with power cord and safety plug
4 IEC outputs for power supply of further devices
LED: 180 x 10 mm RGB
Control: Foot switch (optional); IR remote control (optional); Stand-alone; DMX

59007009 EUROLITE STV-50-WOT EU Steel stand

Lighting stand, made in EU, max. load 30 kg, height 150-315 cm

Technical specifications

42109781 EUROLITE LED KLS-401 Compact Light Set
Power supply:	230 V AC, 50 Hz
Power consumption:	55,00 W
IP classification:	IP20
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
LED:	180 x 10 mm RGB
DMX channels:	15
Control:	Foot switch (optional)
	IR remote control (optional)
	Stand-alone
	DMX
Beam angle (1/2 peak):	25°
Housing color:	Black
Width:	120 cm
Height:	31 cm
Depth:	5,5 cm
Weight:	9,30 kg
DMX connection:	3-pin XLR
LED type:	10 mm
LED number:	720 (240 red, 240 green, 240 blue)
TV spigot:	D = 28 mm
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
59007009 EUROLITE STV-50-WOT EU Steel stand
Maximum carrying capacity:	30 kg
Height:	maximum: 3,15 m minimum: 1,5 m
Color:	Black
Attachment:	TV spigot system Ø 28mm
Type (general stands):	Light stand/manual
Material:	Steel (powder-coated)
Weight:	5,5 kg
