PSSO Prime Set L

2 U

PSSO Prime Set L

The article is no longer in our assortment.

Item no. 20000513

Print product

Product badge

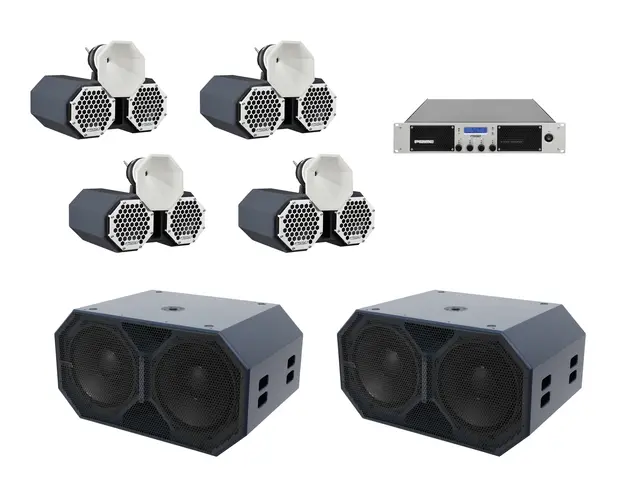

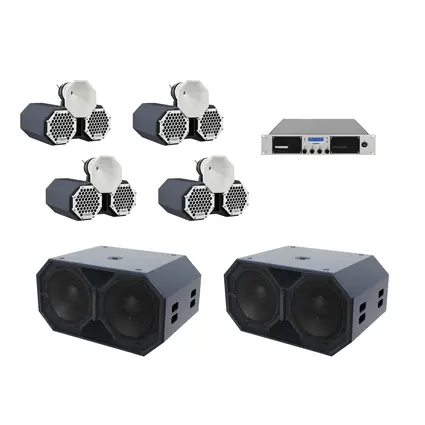

Set consisting of:

4 x PSSO PRIME-208 Club Speaker System

2 x PSSO PRIME-152 Subwoofer 1400W

1 x PSSO PRIME System Amplifier DSP

Features

PSSO PRIME-208 Club Speaker System

PRO PA speaker, 2 x 8" woofer, 1" horn, 400 W RMS, 4 ohms

Rugged pro PA speaker, qualified for suspension and clubs
Housing made of 18 mm (13 layers) birch plywood
Premium custom-made drivers by European manufacturer CELTO Acoustique
2 x 20 cm ferrite bass speaker (8") with diecast aluminum basket
25 mm driver (1"), 51 mm voice coil (2")
Bassreflex system
Neutrik Speakon connectors
Scratch-resistant lacquer surface
Flange for stand installation
Applications: standing or suspended, on a speaker stand
CELTO ACOUSTIQUE driver

PSSO PRIME-152 Subwoofer 1400W

PRO PA bassreflex subwoofer, 2 x 15" woofer, 1400 W RMS, 4 ohms

Rugged pro bassreflex subwoofer, qualified for clubs and touring applications
18 mm (13 layers) birch plywood
2 x 38 cm (15") bass speaker, 100 mm voice coil (4"), diecast aluminum basket
Premium custom-made drivers by European manufacturer CELTO Acoustique
Parallel Neutrik Speakon connectors
Metal flange for top speakers
Carrying handles and rubber feet
Scratch-resistant lacquer surface
CELTO ACOUSTIQUE driver
European engineering

PSSO PRIME System Amplifier DSP

Class D multi-channel PA amplifier with SMPS, 4 x 400 W RMS (8 ohms), 4 x 800 W RMS (4 ohms)

6-channel PA amplifier with high-performance DSP, freely programmable
Sample frequency: 96 kHz and 64-bit technology
Premium components ensure excellent sound features
Efficient class D amplifier circuitry
2 Pascal amplifier modules
4 analog inputs and 2 digital AES/EBU interfaces (XLR)
4 analog link outputs (XLR)
2 Neutrik Speakon outputs
Neutrik Powercon mains input
Real-time remote control via built-in Ethernet LAN interface
User-friendly software for PC and Mac included
80 presets can be stored and activated
Manual control via encoder, LCD screen and buttons at the front panel
120 dB dynamic range
Flexible routing
10 parametric EQ
X-Over: Bessel, Linkwitz-Riley, Butterworth with 24 dB/octave
Delay
Limiter and noise gate
Phase reverse
Password protection
Low weight and height due to integrated switch mode power supply
Automatic power supply adaption between 100 and 240 volts without power selector
Intelligent mains fuse protection
Input current limiter
Protection against turn-on and turn-off transients
DC protection of outputs
Under and over voltage protection
High damping factor> 1000
Low distortion, THD+N < 0.05 %
Rugged steel chassis with anodized aluminum front panel
Rack installation with 2 units
Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better
The device is cooled by temperature-controlled fan
(19") 48.3 cm rack installation 2 U

Technical specifications

Weight:	211,35 kg
PSSO PRIME-208 Club Speaker System
Power:	Program: 800W Rated: 400W RMS
Frequency range:	56 - 19000 Hz
Impedance:	4 ohms
Connections:	Input: speaker via 1 x speaker built-in socket (F)
Speaker:	2 x woofer 8"
Use of brands:	CELTO ACOUSTIQUE driver
Dimensions:	Width: 53 cm Depth: 42 cm Height: 40 cm
Weight:	5,15 kg
Components:	2 x 20 cm woofer (2 x 8"), 2.5 cm horn tweeter (1"), 51 mm voice coil
Connection:	2 x Speakon
Sensitivity:	98 dB
Maximum SPL:	130 dB
Crossover frequency:	1.5 kHz
Dispersion angle:	50° to 100° x 10° to -30°
Dimensions (H x W x D):	400 x 530 x 420 mm
PSSO PRIME-152 Subwoofer 1400W
Power:	Program: 2800W Rated: 1400W RMS
Frequency range:	39 - 1600 Hz
Sensitivity:	99 dB (1W/1m)
Max. SPL:	136 dB
Impedance:	4 ohms
Connections:	Input: speaker via 2 x 4-pol SpeakON mounting version (F)
Speaker:	2 x woofer 15"
Type of speaker:	Subwoofer
Type of construction:	Vented
Use of brands:	CELTO ACOUSTIQUE driver
Dimensions:	Width: 95 cm Depth: 61 cm Height: 51 cm
Weight:	55 kg
PSSO PRIME System Amplifier DSP
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	920 W 1/8 power
Output power:	4 x 400 W RMS (8 ohms) 4 x 800 W RMS (4 ohms) 2 x 1500 W RMS (8 ohms) 2 x 2400 W RMS (4 ohms) 2 x 1600 W RMS bridged (8 ohms)
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Frequency range:	20 - 40000 Hz
S/N ratio:	>120 dB
THD:	<0,05 % at 1 kHz
Network connection:	Protocol: Ethernet TCP/IP via 1x RJ-45 etherCON (F) mounting version
Cooling:	Temperature-controlled fan
Gain:	32 dB
Circuitry:	Class D
Damping factor:	>1000
Control elements:	Power switch, encoder, exit, menu
Controls:	Power on/off transients; DC voltage; power on/off transient
Status LED:	Signal, limit, protect, peak
Connections:	Output: speaker via 2 x 8-pin SpeakON mounting version (F) Input: line via 4 x 3-pin XLR Link: line via 4 x 3-pin XLR
Housing design:	(19") 48.3 cm rack installation 2 U
Dimensions:	Width: 48,3 cm Depth: 48,2 cm Height: 8,9 cm
Weight:	12,15 kg

Accessories

Loading accessories. Please wait...

Support

Spare parts

Tweeter PRIME-208 1" 80W 8Ohm

Housing Part (front Grill) PRIME System Amplifier DSP (no label) Black

Housing Part (Nameplate 2x) PRIME System Amplifier DSP (label) Black

More 2 spare parts
