PSSO Prime Set M

Name: PSSO Prime Set M
Brand: PSSO
SKU: 20000512
Price: 7999.00 EUR
Availability: InStock

2 U

PSSO Prime Set M

Stock for approx. 12 wk(s)

7.999,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000512

Print product

Product badge

Features

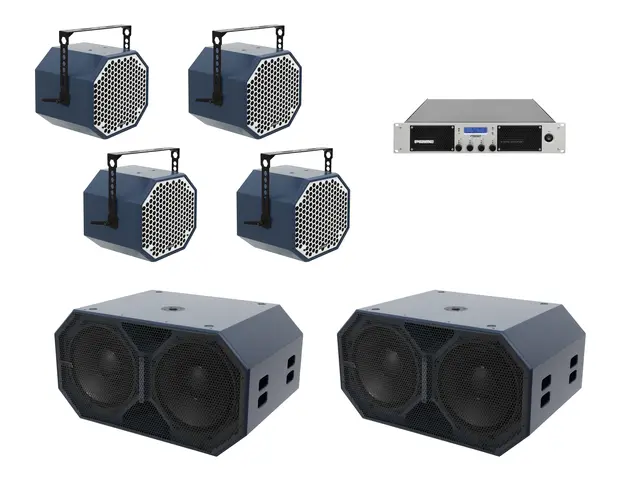

Set consisting of:
4x 11041175: PSSO PRIME-12CX Coaxial Speaker, 400W
2x 11041177: PSSO PRIME-152 Subwoofer 1400W
1x 10451701: PSSO PRIME System Amplifier DSP

11041175 PSSO PRIME-12CX Coaxial Speaker, 400W

Pro PA speaker, 12" woofer, 1" horn, 400 W RMS, 8 ohms

Rugged full-range PA top speaker, qualified for suspension and clubs
Housing made of 18 mm (13 layers) birch plywood
Premium custom-made drivers by European manufacturer CELTO Acoustique
30 cm neodymium bass speaker (12") with diecast aluminum basket
36 mm neodymium driver (1.4"), 72 mm voice coil (2.8")
Passive 2-way crossover
Bassreflex system
Parallel Neutrik Speakon connectors
Movable mounting bracket for ceiling or wall installation
Scratch-resistant lacquer surface
Applications: standing, on a subwoofer or suspended
European engineering

11041177 PSSO PRIME-152 Subwoofer 1400W

Pro PA bassreflex subwoofer, 2 x 15" woofer, 1400 W RMS, 4 ohms

Rugged pro bassreflex subwoofer, qualified for clubs and touring applications
18 mm (13 layers) birch plywood
2 x 38 cm (15") bass speaker, 100 mm voice coil (4"), diecast aluminum basket
Premium custom-made drivers by European manufacturer CELTO Acoustique
Parallel Neutrik Speakon connectors
Metal flange for top speakers
Carrying handles and rubber feet
Scratch-resistant lacquer surface
European engineering

10451701 PSSO PRIME System Amplifier DSP

6 channel PA amp with SMPS, 2 x 2400 W, 4 x 800 W

6-channel PA amplifier with high-performance DSP, freely programmable
Sample frequency: 96 kHz and 64-bit technology
Premium components ensure excellent sound features
Efficient class D amplifier circuitry
2 Pascal amplifier modules
4 analog inputs and 2 digital AES/EBU interfaces (XLR)
4 analog link outputs (XLR)
2 Neutrik Speakon outputs
Neutrik Powercon mains input
Real-time remote control via built-in Ethernet LAN interface
User-friendly software for PC and Mac included
80 presets can be stored and activated
Manual control via encoder, LCD screen and buttons at the front panel
120 dB dynamic range
Flexible routing
10 parametric EQ
X-Over: Bessel, Linkwitz-Riley, Butterworth with 24 dB/octave
Delay
Limiter and noise gate
Phase reverse
Password protection
Low weight and height due to integrated switch mode power supply
Automatic power supply adaption between 100 and 240 volts without power selector
Intelligent mains fuse protection
Input current limiter
Protection against turn-on and turn-off transients
DC protection of outputs
Under and over voltage protection
Temperature-controlled air-cooling
High damping factor> 1000
Low distortion, THD+N < 0.05 %
Rugged steel chassis with anodized aluminum front panel
Rack installation with 2 units
Windows XP, Vista, 7, 8 and Mac OS X 10.5.8 and better
Housing design: (19") 48.3 cm rack installation 2 U

Technical specifications

11041175 PSSO PRIME-12CX Coaxial Speaker, 400W
Rated power:	400 W RMS
Program power:	800 W
Frequency range:	59 - 21000 Hz
Sensitivity:	100 dB
Max. SPL:	132 dB
Dispersion angle:	70° x 70°
Crossover frequency:	1400 Hz
Impedance:	8 Ohm
Connections:	Input: 2 x Speakers via 4-pol SpeakON mounting version (F)
Speakers:	1 x woofer (12") approx 30 cm
	1 x Horn (1.5") approx 4 cm
	Voice coil lows (3") approx. 8 cm
	Horn vent (1.35") appox 3,5cm
	Voice coil tweeter (3") approx. 8 cm
Use of brands:	Celto Acoustique driver
Width:	38 cm
Height:	38 cm
Depth:	38 cm
Weight:	14,80 kg
11041177 PSSO PRIME-152 Subwoofer 1400W
Rated power:	1400 W RMS
Program power:	2800 W
Frequency range:	39 - 1600 Hz
Sensitivity:	99 dB (1W/1m)
Max. SPL:	136 dB
Impedance:	4 Ohm
Connections:	Input: 2 x Speakers via 4-pol SpeakON mounting version (F)
Speakers:	2 x woofer (15") approx 38 cm
Use of brands:	Celto Acoustique driver
Width:	95 cm
Height:	51 cm
Depth:	61 cm
Weight:	55 kg
10451701 PSSO PRIME System Amplifier DSP
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	920 W 1/8 power
Output power:	6 x 1500 W RMS (8 ohms)
	6 x 2400 W RMS (4 ohms)
Power connection:	Mains input PowerCON (blue), mounting version Power supply cord with safety plug (provided)
Frequency range:	20 - 40000 Hz
S/N ratio:	>120 dB
network connection:	protocol: ethernet TCP/IP via 1x RJ-45 Ethercon (F) mounting version
Cooling fan:	Yes, temperature-controlled
Circuitry:	Class D
Damping factor:	>1000
Control elements:	power switch, encoder, exit, menü
Indicators:	Signal, limit, protect, peak
Connections:	Input: 4 x line via 3-pin XLR
	link: 4 x line via 3-pin XLR
	Output: 2 x Speakers via 8-pin speakON mounting version (F)
Distortion:	<0,05 %
Housing design:	(19") 48.3 cm rack installation 2 U
Width:	48,3 cm
Height:	8,9 cm
Depth:	48,2 cm
Weight:	12,15 kg
Power output (RMS):
Channel 2, 3, 5, 6:	800 W at 4 ohms
	400 W at 8 ohms
Channel 2/3, 5/6 bridged:	2 x 1500 W at 8 ohms
Total harmonic distortion:	<0.05 % (20-20000 Hz, 8 ohms)
Damping factor:	>1000 (8 ohms, 1 kHz)
Voltage gain:	LF 32 dB, MF 26 dB
Analog inputs:	4 x XLR
Digital inputs:	2 x AES/EBU (XLR)
Analog output:	4 x XLR (link)
	2 x 8-pin Speakon
	Pin configuration: 1+/-: 2400W, 2+/-: 800W und 3+/-: 800W, 4+/-: n.c.
Communication:	LAN (TCP/IP)
Protection:	Intelligent mains fuse protection, input current limiter,
	protection against turn-on and turn-off transients, DC protection of outputs,
	under and over voltage protection
