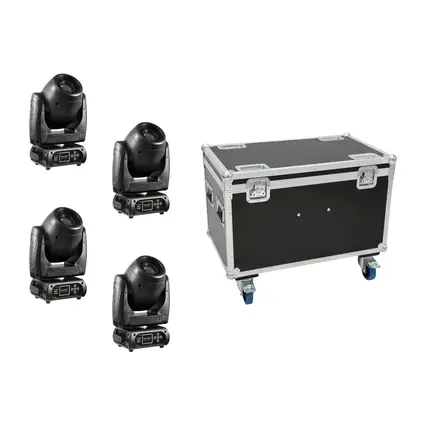

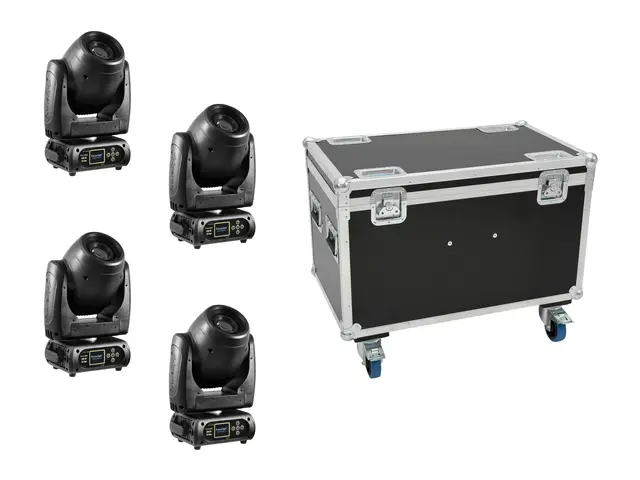

EUROLITE Set 4x DMH-80 LED Spot + Case

EUROLITE



EUROLITE Set 4x DMH-80 LED Spot + Case

this item is not in stock.
3.199,00
add to cart
Find a dealer
Due to the dimensions of this article, different shipping conditions apply.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000491

svg
svg
svg
svg
svg
10 - 16°
svg
7 mm
svg
svg
svg
svg
svg
svg
Features

51841841 FUTURELIGHT DMH-80 LED Spot

PRO Moving Head with 75 W LED and unique 16-facet prism

  • 1 extra bright 75 W LED for best luminance
  • High PAN/TILT speed
  • Supports RDM (Remote Device Management)
  • Upgrade via optional wireless receiver module for WDMX operation (Wireless Solution - made in Sweden)
  • 11, 13, 17 or 18 DMX channels selectable
  • Effect wheel with rotating 16-facet prism
  • Color wheel with 8 different dichroic color filters plus white
  • Rainbow effect with adjustable speed in both directions
  • Gobo wheel with 7 rotating gobos plus open
  • All gobos can be interchanged
  • Slot-in gobo system for exchanging gobos without tools
  • With gobo shake function
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Motorized focus
  • Dimmer
  • Strobe effect with adjustable speed
  • Random strobe effect
  • Automatic position correction
  • PAN angle switchable between 630° and 540°
  • Sound-controlled via built-in microphone
  • Control board with graphic LC display and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Number of scenes can be changed individually
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Software upload by optional accessories via DMX link
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via any standard DMX controller
  • LED: 1 x COB (chip-on-board) 75 W Color wheel
  • Power output: 1 x Powercon (gray), mounting version
  • Control: W-DMX by wireless solution upgradeable; Stand-alone; DMX; Sound to light viaMicrophone; RDM
  • Effect: Gobo effect; Single Beam

51836885 ROADINGER Flightcase 4x PLB-130/DMH-80/TMH XB-130

PRO flightcase for 4 x PLB-130

  • Compartments for 4 units and accessory
  • Interior and cover (not removable) upholstered with foam
  • High-quality workmanship with multiplex birch wood, dark brown laminated
  • Aluminum profile frames (25 mm) with rounded edges
  • Three-leg, large steel ball corners
  • 2 tip-over locks
  • 4 castors, 2 of which with locking brakes
  • 2 high-quality butterfly locks
  • 4 hinged case handles
  • Transport aid: With wheels
  • Made in Europe
Technical specifications
51841841 FUTURELIGHT DMH-80 LED Spot
Power supply:110-240 V AC, 50/60 Hz
Power consumption:135 W
LED:1 x COB (chip-on-board) 75 W Color wheel
Max. TILT movement:Exact positioning (16 bit resolution) 270° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Equipment:rotating gobo wheel; Prisma 16-fold; Focus motor-driven
Gobos:rotating gobo wheel with 7 gobos and open
outside diameter 24mm
image diameter 19mm
DMX channels:11; 13; 17; 18
IP classification:IP20
Power connection:Mains input Powercon (blue), mounting version Power supply cord with safety plug (provided)
Power output:1 x Powercon (gray), mounting version
Cooling fan:Yes, temperature-controlled
Control:W-DMX by wireless solution upgradeable
Stand-alone
DMX
Sound to light via Microphone
RDM
Case color:Black
Width:29,9 cm
Height:39,8 cm
Depth:25,2 cm
Weight:9,55 kg
DMX512 connection:5-pin XLR
Color-wheel:8 dichroic filters plus open
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
51836885 ROADINGER Flightcase 4x PLB-130/DMH-80/TMH XB-130
Maximum load:100 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Strength:7 mm
Width:81 cm
Height:43 cm
Depth:50 cm
Weight:22,60 kg
Inside dimensions (W x D x H):770 x 450 x 405 mm
Accessory compartment (W x D x H):95 x 450 x 390 mm
Packaging units
PU EAN Weight Dimensions
1 4026397646160 67,30 kg 120cm x 80cm x 80cm
