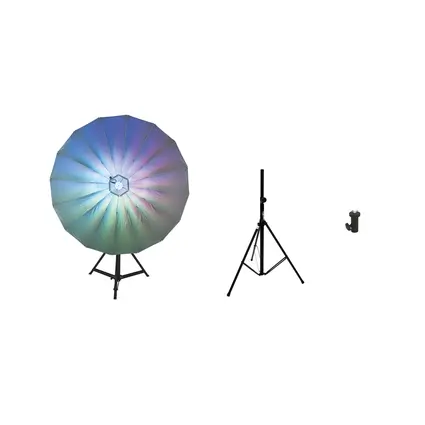

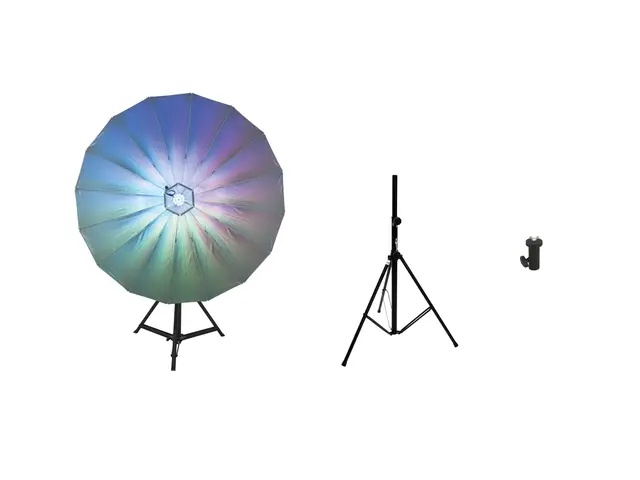

EUROLITE Set LED Umbrella 140 + BS-2 EU

EUROLITE



EUROLITE Set LED Umbrella 140 + BS-2 EU

Stock for approx. 12 wk(s)
469,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000489

svg
svg
svg
60 mm
svg
140 cm
svg
svg
svg
svg
svg
svg
Features

42111000 EUROLITE LED Umbrella 140

Extraordinary RGB eye-catcher

  • DMX-controllable lighting effect umbrella with 114 SMD RGB LEDs, distributed in 7 segments
  • Segments can be controlled individually via DMX
  • 6 segments make the surface of the umbrella shine, one segment in the middle shines directly at the audience
  • Perfect as stage background and eye-catcher for decorative purposes in shops, display windows, fair stands, hotels, bars and clubs
  • Can be mounted to a lighting stand or trussing - the umbrella's angle can be adjusted
  • Easy transport (can be folded), setup and installation
  • Covers a large area with a diameter of 140 cm
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom-powered USB port for QuickDMX receivers (accessories)
  • 6 or 24 DMX channels selectable
  • Stepless RGB color mixture, dimmer and strobe effect
  • Sound-control via built-in microphone
  • DMX512 control possible via any commercial DMX controller
  • Addressing via control panel with 4-digit LED display
  • Appropriate control unit included in the delivery
  • Power connection via P-Con jack and included power cable with safety plug
  • Projection: flicker-free
  • Power connection: Mains input P-Con (Power-In) Power supply cord with safety plug (M) (provided)
  • Control: Stand-alone; DMX
  • LED: 114 x SMD 3in1 TCL RGB (homogenous color mix)

60004164 OMNITRONIC BS-2 EU Loudspeakerstand

High steel speaker stand, height adjustable 117-205 cm, max. load 50 kg

  • Stable steel version
  • Height adjustable, with locking pin
  • Height: 117-205 cm
  • Tube diameter: Ø 35 mm
  • Centric load: 50 kg
  • Scratch-resistant black finish
  • Made in Europe

59007072 EUROLITE SPA-10S Adapter

For 36 mm tube with screw thread and M10 wing bolt, max. load WLL 100 kg

  • Adapter for installing a spot, speaker-system etc. on a stand with 35 mm telescopic tube
  • M10 wing bolt
Technical specifications
42111000 EUROLITE LED Umbrella 140
DMX channels:6/24
DMX connection:3-pin XLR
QuickDMX connection: USB, type A
Sound-control:via built-in microphone
LED number:114
LED type:SMD RGB (3in1)
Diameter (umbrella):140 cm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
Cooling fan:No, cooling by convection
IP classification:IP20
Weight:3,07 kg
Power consumption:10 W
Diameter:140 cm
Power connection:Mains input P-Con (Power-In) Power supply cord with safety plug (M)
DMX channels:6; 24
LED:114 x SMD 3in1 TCL RGB (homogenous color mix)
Power supply:110-240 V AC, 50/60 Hz
60004164 OMNITRONIC BS-2 EU Loudspeakerstand
Transport dimensions:110 x 17 x 14 cm
Weight:4,4 kg
Min. height:1,17 m
Max. height:2,05 m
Color:Black
Maximum carrying capacity:50 kg
Attachment:Flange system 35mm
Material:Steel
59007072 EUROLITE SPA-10S Adapter
Receiver:D = 36.5 mm
Receiver:L = 95 mm
Strength:2 mm
Mounting plate:D = 60 mm
Mounting plate:Thickness 13 mm
Wing bolt:M10 x 25 mm
Dimensions (L x W x H):60 x 60 x 130 mm
Weight:0,5 kg
Diameter:60 mm
Maximum load BGV C1 (8-fold):50 kg
Max. load WLL (4fold):100 kg
Packaging units
PU EAN Weight Dimensions
1 4026397645941 10,39 kg 110cm x 50cm x 30cm
