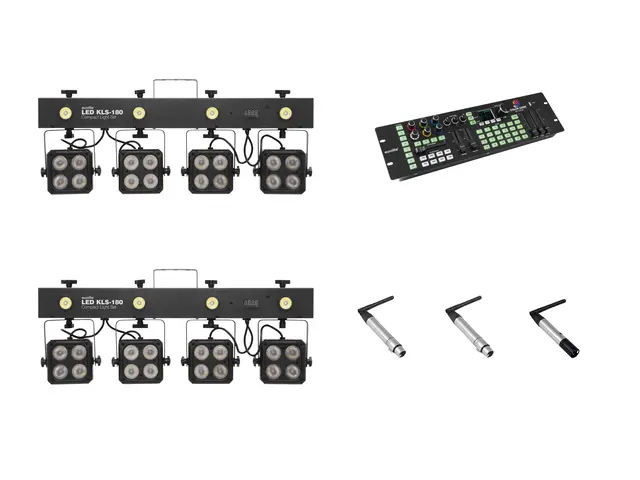

EUROLITE Set 2x KLS-180 + Color Chief + QuickDMX transmitter + 2x receiver

EUROLITE



EUROLITE Set 2x KLS-180 + Color Chief + QuickDMX transmitter + 2x receiver

Stock for approx. 12 wk(s)
729,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000487

svg
svg
svg
svg
svg
svg
svg
1,8 cm
svg
svg
svg
svg
svg
svg
3 U
Features

42109630 EUROLITE LED KLS-180 Compact Light Set

Bar with 4 RGBW spots and 4 white strobe LEDs, with 5-pin QuickDMX connector

  • Crossbar with integrated DMX control unit and stand sleeve
  • Ultra-light ideally suited for mobile use
  • Ideal for bands, stages or solo entertainers
  • Suited for installation on a speaker stand (not included) or truss
  • Comes pre-assembled with practical transport bag
  • 4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix
  • Strobe effect with 4 white 1 W LEDs
  • Movable and tiltable spotlights
  • Via DMX, each spot can be individually controlled
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-control via built-in microphone, microphone sensitivity adjustable
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom fed socket for QuickDMX receiver (see accessories)
  • DMX512 control via any commercial DMX controller (occupies 21 channels)
  • 3, 4, 8 or 21 DMX channels selectable
  • Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation
  • Addressing and setting via control panel with 4-digit LED display
  • Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
  • Black lacquered metal version with movable mounting bracket
  • Convection cooling entirely via cooling ribs, no fans, particularly quiet during operation
  • Switch-mode power supply for operation between 100 and 240 volts
  • Feed-through output allows to power up to 8 devices
  • Ready for connection via IEC power cord with safety plug
  • Case color: Black
  • Strobe color: White
  • Projection: flicker-free
  • Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
  • Power output: 1 x IEC connector (F) mounting version
  • Control: IR remote control; QuickDMX via 5-pin XLR (M) mounting version; Stand-alone; DMX
  • LED: Spot 4 x separate controlling each with 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
  • LED: Strobe effect separate controlling 4 x high-power 1 W CW (homogenous color mix)

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

  • Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
  • For 8 devices or device groups, each with up to 4 segments
  • Each device can occupy up to 30 channels
  • Quick and easy programming
  • Eurolite KLS systems and LED spotlights already in the library
  • Additional fixtures can be configured manually
  • 8 color effects directly selectable
  • 3 additional channels available per fixture (e.g. for rotations)
  • Color wheel selection and simulation
  • 24 memory spaces for scenes and chases
  • Several chases can be run simultaneously
  • USB port for data storage of lighting programs
  • Sound control via audio signal or TAP button
  • Master dimming, fade time and run time easily adjustable
  • Very simple to program and use
  • 3-pin XLR connector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Case color: Black
  • Housing design: (19") 48,3 cm rack installation 3 U
  • Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
  • Controller useable for: Luminaires up to 6 LED colors; Controls KLS in general; Controls DMX effects; Luminaires for white
  • Control: DMX
  • Height unit: 3 U

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz

  • Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
  • User-friendly 3-pin XLR plug (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Powered via included PSU
  • 2.4 GHz ISM band - license-free worldwide
  • Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
  • Control: QuickDMX built-in

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Wireless DMX receiver 2.4 GHz, phantom powered

  • Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
  • User-friendly 5-pin XLR plug (female) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Requires 5 V phantom power for operation
  • 2.4 GHz ISM band - license-free worldwide
  • Only to be sold in Germany, no export model available
  • Power connection: Mains input 5-pin XLR (m) connector
  • Control: QuickDMX via 5-pin XLR (M) mounting version; QuickDMX built-in; DMX
Technical specifications
42109630 EUROLITE LED KLS-180 Compact Light Set
DMX channels:3/4/8/21
DMX connection:3-pin XLR
QuickDMX connection:5-pin XLR
Sound-control:via built-in microphone
LEDs spot:16 x 8 W RGBW (4in1)
LEDs strobe:4 x 1 W white
Beam angle:
Dimensions (W x D x H):600 x 140 x 230 mm
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
IP classification:IP20
Weight:4,85 kg
Cooling fan:No, cooling by convection
Power consumption:80 W
Laser class:Without laser
Beam angle:
Height:23 cm
Depth:14 cm
Width:64 cm
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (M)
Power output:IEC connector (F) mounting version
DMX channels:3; 4; 8; 21
LED:Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
Strobe effect 4 x high-power 1 W CW (homogenous color mix)
Power supply:110-240 V AC, 50/60 Hz
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
70064575 EUROLITE DMX LED Color Chief Controller
via included power adapter (9 V/800 mA)
Control channels:maximum 240
Storable scenes/chases:24
DMX512 output:3-pin XLR connector
Sound-control:via built-in microphone or
RCA line input (min. 100 mV)
Available storage media:USB devices (FAT32)
Dimensions (L x W x H):482 x 132 x 85 mm
Rack installation with 3 U
Weight:2,2 kg
Power consumption:10 W
IP classification:IP20
Color:Black
Height:8,5 cm
Depth:13,35 cm
Width:48,3 cm
DMX channels:240
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (m)
Power supply:110-240 V AC, 50/60 Hz
70064700 EUROLITE QuickDMX Wireless Transmitter
via power unit included in the delivery
Carrier frequency:2.4 GHz ISM band, 78 channels
Modulation:GFSK
Coverage:400 m (line-of-sight)
Parallel operation:max. 6 transmitters
DMX conncector:3-pin XLR (male)
DMX channels:1 universe (512 channels)
Dimensions with antenna (L x W x H):212 x 18 x 18 mm
Weight:0,15 kg
IP classification:IP20
Color:Silver
Diameter:1,8 cm
DMX input:1 x 3-pin XLR (M)
DMX channels:512
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (m)
Length:21,2 cm
Power supply:110-240 V AC, 50/60 Hz
5 V DC 1 A
70064702 EUROLITE QuickDMX Wireless receiver phantom-power
Power supply:5 V DC phantom power
Carrier frequency:2.4 GHz ISM band, 78 channels
Modulation:GFSK
Coverage:400 m (line-of-sight)
DMX conncector:5-pin XLR (female)
DMX channels:1 universe (512 channels)
Dimensions with antenna (L x W x H):212 x 18 x 18 mm
Weight:0,08 kg
IP classification:IP20
Color:Silver
Diameter:1,8 cm
DMX channels:512
Power connection:Mains input 5-pin XLR (m) connector
Length:21,2 cm
Packaging units
PU EAN Weight Dimensions
1 4026397645927 14,09 kg 82cm x 41cm x 52cm
