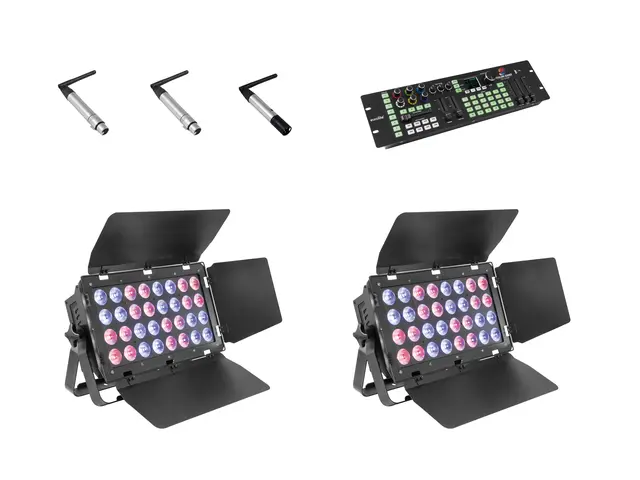

EUROLITE Set 2x Stage Panel 32 + Color Chief + QuickDMX transmitter + 2x receiver

EUROLITE



EUROLITE Set 2x Stage Panel 32 + Color Chief + QuickDMX transmitter + 2x receiver

Stock for approx. 12 wk(s)
1.379,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000486

Features

51913893 EUROLITE Stage Panel 32 HCL LED

Light effect bar with RGBAW+UV color mixing, with 5-pin QuickDMX connector

  • 32 high-power 10 W RGBAW+UV LEDs (6in1)
  • 8 segments for dynamic running lights
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • Direct color selection for 26 preset colors
  • Color temperature adjustable in 6 steps (2700-8000 K)
  • Stepless RGBAW+UV color blend, color change, color fade, dimmer and strobe effect
  • 4 barn doors to align the light, to avoid blinding the audience and for protection during transport
  • Addressing and setting via control panel with 4-digit LED display
  • Convenient wireless control via included IR remote control EUROLITE IR-7
  • Supports QuickDMX - the wireless DMX-system from Eurolite
  • Built-in phantom fed socket for QuickDMX receiver (see accessories)
  • Sound-control via built-in microphone with adjustable microphone sensitivity
  • DMX512 control possible via any commercial DMX controller
  • 3, 5, 6, 13, 48 or 52 DMX channels selectable for various applications
  • Swivel mounting bracket
  • Additional bracket for floor use
  • Feed-through output allows to power up to 8 devices
  • Power connection via P-Con jack and included power cable with safety plug
  • Effect: Strobe effect; UV
  • LED: 32 x High power standard 10 W 6in1 HCL RGBWA/UV Homogenous colormix
  • Control: QuickDMX 5-pin; Stand-alone; DMX; IR remote control provided
  • Projection: flickerfree
  • Power supply of device: Mains Input Socket (M) P-Con (Power-In) provided fehlt

70064575 EUROLITE DMX LED Color Chief Controller

DMX lighting desk with innovative control concept for LED spotlights

  • Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
  • For 8 devices or device groups, each with up to 4 segments
  • Each device can occupy up to 30 channels
  • Quick and easy programming
  • Eurolite KLS systems and LED spotlights already in the library
  • Additional fixtures can be configured manually
  • 8 color effects directly selectable
  • 3 additional channels available per fixture (e.g. for rotations)
  • Color wheel selection and simulation
  • 24 memory spaces for scenes and chases
  • Several chases can be run simultaneously
  • USB port for data storage of lighting programs
  • Sound control via audio signal or TAP button
  • Master dimming, fade time and run time easily adjustable
  • Very simple to program and use
  • 3-pin XLR connector
  • Firmware update via USB
  • Desktop console
  • Rack installation with 3 units
  • Housing design: (19") 48,3 cm rack installation
  • Controller useable for: Controls KLS in general; Controls DMX-effects Controls DMX-effects; Controls KLS classic Controls KLS classic; Controls KLS in general Controls KLS in general
  • Control: DMX
  • Height unit: 3 HE
  • Power supply of device: Mains Input Socket (M) provided fehlt

70064700 EUROLITE QuickDMX Wireless Transmitter

Wireless DMX transmitter 2.4 GHz

  • Miniature wireless DMX transmitter for the wireless transmission of up to 512 DMX channels
  • User-friendly 3-pin XLR plug (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Powered via included PSU
  • 2.4 GHz ISM band - license-free worldwide
  • Control: QuickDMX; DMX; W-Lan
  • Power supply of device: Mains Input Socket (M) provided fehlt

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Wireless DMX receiver 2.4 GHz, phantom powered

  • Miniature wireless DMX receiver for the wireless transmission of up to 512 DMX channels
  • User-friendly 5-pin XLR plug (female) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX receivers and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Operating range up to 400 m (with line-of-sight)
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Requires 5 V phantom power for operation
  • 2.4 GHz ISM band - license-free worldwide
  • Only to be sold in Germany, no export model available
  • Control: QuickDMX; DMX; QuickDMX 5-pin; W-Lan
  • Power supply of device: Mains Input Socket (M) fehlt
Technical specifications

51913893 EUROLITE Stage Panel 32 HCL LED

Power supply:100-240 V AC, 50/60 Hz
DMX control channels:3/5/6/13/48/52
DMX512 connection:3-pin XLR
QuickDMX connection:5-pin XLR
Sound control:via built in microphone
LED type:10 W RGBAW+UV (6in1)
LED number:32
Beam angle:16°
Flash rate:0-20 Hz
Dimensions (L x W x H):93 x 500 x 295 mm
Beam angle:16°
IP classification:IP20
Weight:7 kg
Cooling fan:Yes
Lamp type:LED lamp
Power consumption:100 W
Laser class:Without laser
Height:29,5 cm
Depth:9,3 cm
Width:50 cm
DMX channels:3; 5; 6; 13; 48; 52
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting

70064575 EUROLITE DMX LED Color Chief Controller

Power supply:100-240 V AC, 50/60 Hz
via included power adapter (9 V/800 mA)
Control channels:maximum 240
Storable scenes/chases:24
DMX512 output:3-pin XLR connector
Sound-control:via built-in microphone or
RCA line input (min. 100 mV)
Available storage media:USB devices (FAT32)
Dimensions (L x W x H):482 x 132 x 85 mm
Rack installation with 3 U
Weight:2,2 kg
Power consumption:10 W
IP classification:IP20
Color:Black
Height:8,5 cm
Depth:13,35 cm
Width:48,3 cm
DMX channels:240

70064700 EUROLITE QuickDMX Wireless Transmitter

Power supply:100-240 V AC, 50/60 Hz
via power unit included in the delivery
Carrier frequency:2.4 GHz ISM band, 78 channels
Modulation:GFSK
Coverage:400 m (line-of-sight)
Parallel operation:max. 6 transmitters
DMX conncector:3-pin XLR (male)
DMX channels:1 universe (512 channels)
Dimensions with antenna (L x W x H):212 x 18 x 18 mm
Weight:0,08 kg
IP classification:IP20
Color:Silver
Diameter:1,8 cm
Length:21,2 cm
DMX channels:512

70064702 EUROLITE QuickDMX Wireless receiver phantom-power

Power supply:5 V DC phantom power
Carrier frequency:2.4 GHz ISM band, 78 channels
Modulation:GFSK
Coverage:400 m (line-of-sight)
DMX conncector:5-pin XLR (female)
DMX channels:1 universe (512 channels)
Dimensions with antenna (L x W x H):212 x 18 x 18 mm
Weight:0,08 kg
IP classification:IP20
Color:Silver
Diameter:1,8 cm
Length:21,2 cm
DMX channels:512
Packaging units
PU EAN Weight Dimensions
1 4026397645910 22,49 kg 130cm x 50cm x 30cm
