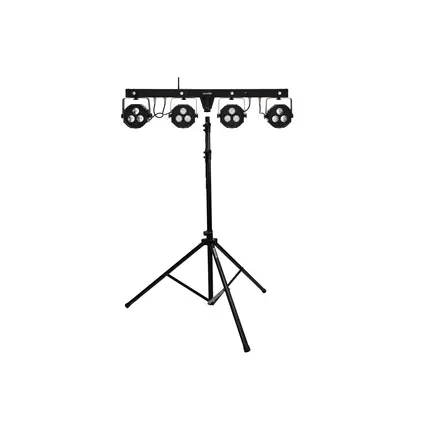

LED KLs-170 Compact Light Set including aluminum speaker stand
EUROLITE Set LED KLS-170 Compact Light Set + M-4 Speaker-System Stand

svg
svg
spotlight
svg
bar
svg
13°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
EUROLITE

LED KLs-170 Compact Light Set including aluminum speaker stand

EUROLITE Set LED KLS-170 Compact Light Set + M-4 Speaker-System Stand

No. 20000453
Set consisting of:
mpn42109620
1 x EUROLITE LED KLS-170 Compact Light Set
mpn60004185
1 x OMNITRONIC M-4 Speaker-System Stand
Features

LED KLs-170 Compact Light Set including aluminum speaker stand

EUROLITE LED KLS-170 Compact Light Set

Bar with 4 RGB spots, cold white + UV strobe LEDs, foot switch and carrying bag

  • Compact lightweight
  • Crossbar with integrated DMX control unit and stand sleeve
  • Silent operation
  • 31 integrated show programs
  • Control via stand-alone; DMX; wireless footswitch; IR remote control; sound to light via microphone; master/slave function
  • Preprogrammed in EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
  • With mounting bracket
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Party room; mobile use; mobile djs / entertainer; small rental
  • Application possibility: On stand

spotlight

  • 3 powerful LEDs 9 W high-power 3in1 TCL RGB (homogenous color mix)
    spots controlled separately

bar

  • 4 powerful LEDs 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
    LEDs controlled separately

Package contents

  • 1 x spotlight, 1 x user manual, 1 x power cord, 1 x bag, 1 x foot control, 1 x remote control, 2 x battery, 2 x mounting bracket, 2 x knurled screw, 2 x washer

OMNITRONIC M-4 Speaker-System Stand

Aluminum speaker stand, height adjustable 140-345 cm, maximum load 18 kg

  • Durable aluminum version
  • Tube diameter: Ø 35 mm
  • Adjustable height

Package contents

  • 1 x user manual
Technical specifications
Weight:9,55 kg
EUROLITE LED KLS-170 Compact Light Set
Power supply:100-240 V AC, 50/60 Hz
Power consumption:90 W
IP classification:IP20
Power connection:Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:IEC connector (F) mounting version
Lamp type:LED lamp
DMX channels:3; 6; 16; 25
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:Stand-alone; DMX; wireless footswitch; IR remote control; sound to light via microphone; master/slave function
Preprogrammed in:EASY SHOW 1; Light´J; LED PC-Control 512; Light Captain; EASY SHOW 2; EASY SHOW 3
Beam angle:13°
Beam angle (1/2 peak):13°
Beam angle (1/10 peak):25°
Housing color:Black
Attachment system:2x mounting bracket
Dimensions:Width: 103 cm
Depth: 55 cm
Height: 24 cm
Weight:6,25 kg
Noise classification:Class 0 (no noise at all)
Spotlight
LED type:3 x 9 W high-power 3in1 TCL RGB (homogenous color mix)
Foot control
Battery:1 x 9.0 V E block 6F22 zinc carbon included
Remote control
Battery:1 x button cell 3.0 V CR2025 lithium manganese built-in
Bar
LED type:4 x 2 W high-power 2in1 BCL CW/UV (homogenous color mix)
Flash rate:0 - 30 Hz
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
OMNITRONIC M-4 Speaker-System Stand
Maximum carrying capacity:18 kg
Tube diameter sector:38 - 35 mm
Height:Maximum: 345 cm
Minimum: 140 cm
Adjustable in 10 steps with locking pin
Attachment system:Ø 35mm
Type (general stands):Speaker stand/manual
Material:Aluminum
Color:Black
Transport dimensions:140 cm x 13,5 cm
Weight:3,30 kg
