ALUTRUSS Set Aluminium Shelf for 50mm Alu Systems

The article is no longer in our assortment.

No. 20000450

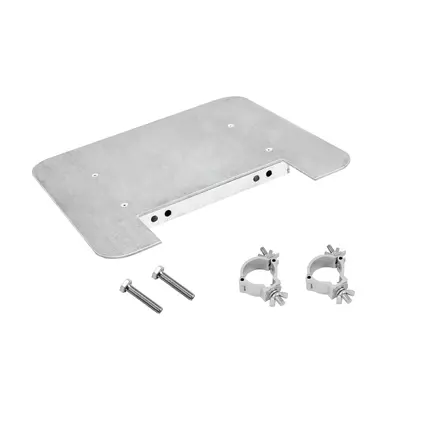

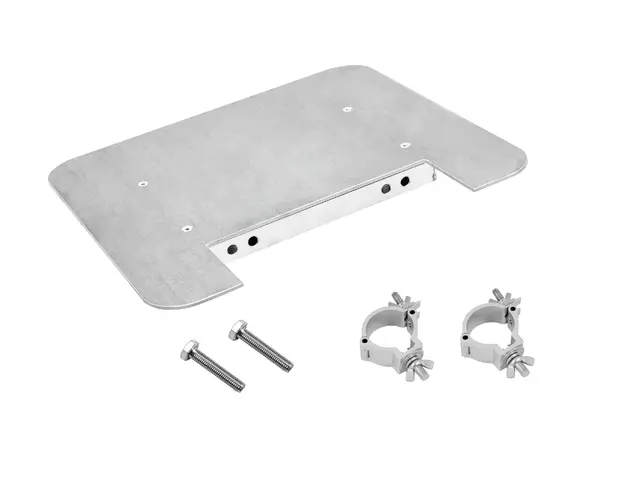

Set consisting of:

1 x ALUTRUSS Aluminium Shelf 50x45x4.5cm

2 x EUROLITE TPC-10 Coupler, silver

2 x ROADINGER Hexagon Screw M10x50 FK8.8 vz

Features

ALUTRUSS Aluminium Shelf 50x45x4.5cm

Truss shelf

Universal shelf to be attached to 290 mm truss (QUAD-, TRI- and BILOCK) or to 220 mm truss (DECOLOCK DQ-2, DQ-3 and DQ-4)
Trusspipe: 50 mm
Made in Europe

EUROLITE TPC-10 Coupler, silver

Mounting coupler for 50 mm tube, maximum load WLL 150 kg

Technical specifications

Weight:	3,59 kg
ALUTRUSS Aluminium Shelf 50x45x4.5cm
Trusspipe:	50 mm
Color:	Alu colored
Weight:	3,20 kg
EUROLITE TPC-10 Coupler, silver
Maximum load BGV C1 (8-fold):	75 kg
Maximum load WLL (4-fold):	150 kg
Tube diameter sector:	48 - 50 mm
Material:	Aluminum
Color:	Silver
Mounting screw:	M10
Dimensions:	Length: 10 cm Width: 3 cm Depth: 9 cm
Weight:	0,16 kg
ROADINGER Hexagon Screw M10x50 FK8.8 vz
Weight:	0,04 kg
