OMNITRONIC Set UHF-201 Wireless Mic System + Bodypack 863.420 MHz

Microphone 5 cm

OMNITRONIC Set UHF-201 Wireless Mic System + Bodypack 863.420 MHz

The article is no longer in our assortment.

Item no. 20000439

Print product

Product badge

Features

Set consisting of:
1x 13063211: OMNITRONIC UHF-201 Wireless Mic System 863.420MHz
1x 13063218: OMNITRONIC UHF-200 BP Bodypack 863.420MHz

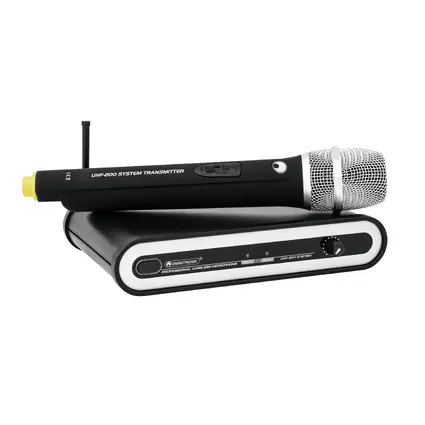

13063211 OMNITRONIC UHF-201 Wireless Mic System 863.420MHz

Wireless microphone system with UHF PLL technology

Receiver unit and hand-held microphone with UHF PLL technology
Operation in the low-interference UHF band
Parallel operation of up to 4 sets is possible without any interference
Volume control
XLR and 6.3 mm output
Jack cable included
LEDs for power, carrier and audio signal
Microphone with mute switch and color indication
Matching pocket transmitter can be ordered separately
License-free and approved in the EU
Housing design: (19") 48.3 cm rack installation possible

Microphone

Polar pattern: Cardioid

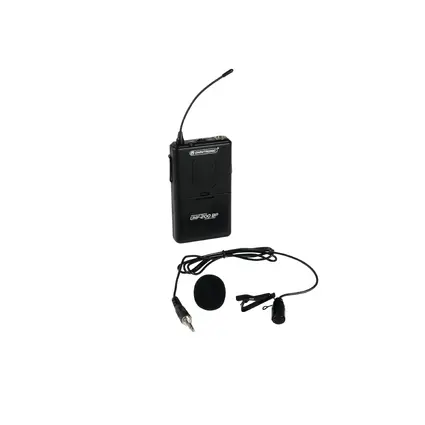

13063218 OMNITRONIC UHF-200 BP Bodypack 863.420MHz

Pocket transmitter with lavalier microphone

Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
Operation in the low-interference UHF band
Incl. lavalier microphone
Transmitting power 10 mW
Power LED
Sensitivity adjustable
Mute switch
Operation via 2 x 1.5 V batteries, type AA
License-free and approved in the EU
Polar pattern: Cardioid

Technical specifications

13063211 OMNITRONIC UHF-201 Wireless Mic System 863.420MHz
Type:	Wireless set
Number of channels:	1
Housing design:	(19") 48.3 cm rack installation possible
Weight:	0.70 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12 V DC 500 mA
Power consumption:	1.75 W
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
S/N ratio:	>105 dB
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Fixed frequencys
Width:	21 cm
Height:	4.5 cm
Depth:	15.5 cm
Microphone
Power supply:	3 V DC
Power connection:	Battery/battery pack
Capsule type:	Dynamic
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	40 - 18000 Hz
Carrier frequency:	863.420 MHz
Range:	50 m with line of sight
switch:	Mute control; on/off switch
Material:	Plastic
Length:	26.5 cm
Diameter:	5 cm
Weight:	0.185 kg
System:	Non-Diversity
RF power output:	10 mW
Modulation method:	F3F
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)
13063218 OMNITRONIC UHF-200 BP Bodypack 863.420MHz
Type:	Bodypack with microphone
Power connection:	Battery/battery pack
Capsule type:	Condenser
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	40 - 18000 Hz
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Fixed frequencys
switch:	on/off switch; Mute control
Width:	6 cm
Height:	2.5 cm
Depth:	20 cm
Weight:	0.11 kg
Carrier frequency:	863.420 MHz
Coverage:	50 m (with line-of-sight)
RF power output:	10 mW
Modulation method:	F3F
S/N ratio:	>105 dB
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz
Connection:	3.5 mm jack
Dimensions:	200 x 650 x 25 mm
