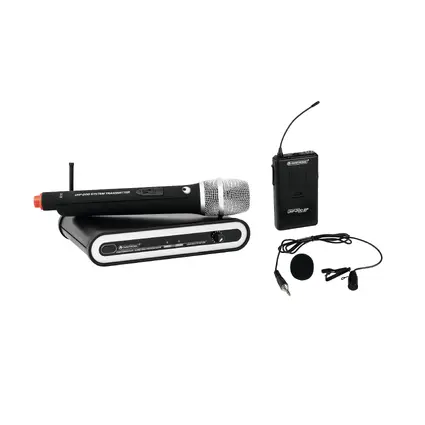

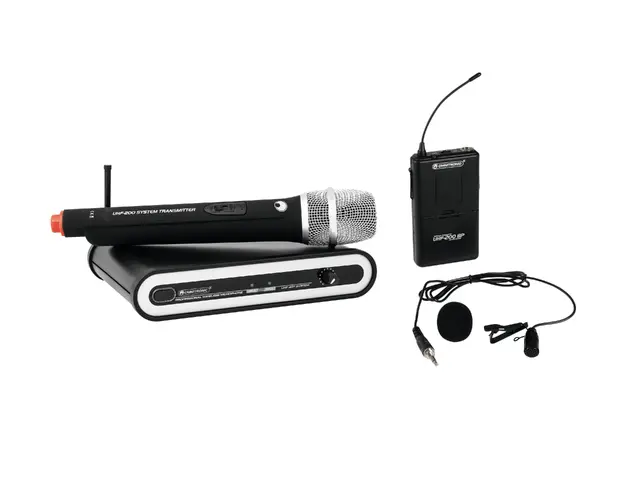

OMNITRONIC Set UHF-201 Wireless Mic System + Bodypack 863.010 MHz

The article is no longer in our assortment.

Features

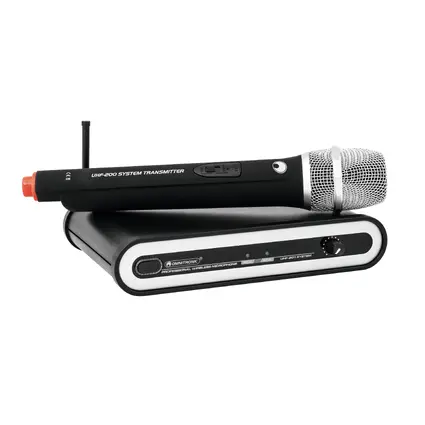

13063210 OMNITRONIC UHF-201 Wireless Mic System 863.010MHz

Wireless microphone system with UHF PLL technology

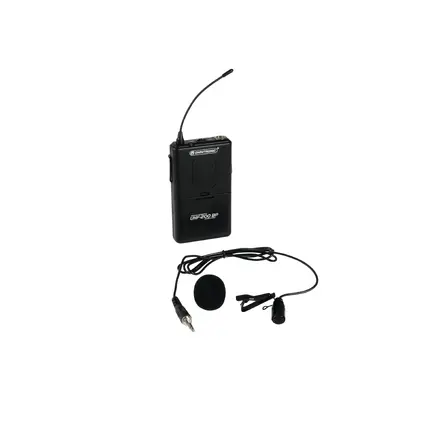

13063217 OMNITRONIC UHF-200 BP Bodypack 863.010MHz

Pocket transmitter with lavalier microphone

Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
Operation in the low-interference UHF band
Incl. lavalier microphone
Transmitting power 10 mW
Sensitivity adjustable
Power LED
Mute switch
Operation via 2 x 1.5 V batteries, type AA
License-free and approved in the EU
Polar pattern: Cardioid

Technical specifications

13063210 OMNITRONIC UHF-201 Wireless Mic System 863.010MHz
Type:	Wireless set
Power consumption:	10.00 W
Capsule type:	Dynamic
Polar pattern:	Cardioid
Frequency range:	40 - 18000 Hz
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Fixed frequencys
Housing design:	(19") 48.3 cm rack installation possible
Width:	21 cm
Height:	15.5 cm
Depth:	4.5 cm
Weight:	0.72 kg
Microphone
Battery:	2 x Mignon (AA) (not included)
System:	Non-Diversity
Carrier frequency:	863.010 MHz
Coverage:	50 m (with line-of-sight)
RF power output:	10 mW
Modulation method:	F3F
S/N ratio:	>105 dB
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz
Audio outputs:	400 mV, 2.2 kohms (XLR, bal.)
	200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Power supply
Receiver:	100-240 V AC, 50/60 Hz via supplied power unit
Dimensions, weight:
Receiver:	155 x 210 x 45 mm (W x D x H), 1 kg
Microphone:	50 x 265 mm (D x L), 280 g
13063217 OMNITRONIC UHF-200 BP Bodypack 863.010MHz
Type:	Bodypack with microphone
Capsule type:	Condenser
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
Frequency range:	40 - 18000 Hz
Frequency band:	UHF 863 - 865 MHz
Frequency selection:	Fixed frequencys
switch:	on/off switch; Mute control
Width:	65 cm
Height:	2.5 cm
Depth:	20 cm
Weight:	0.12 kg
Carrier frequency:	863.010 MHz
Coverage:	50 m (with line-of-sight)
RF power output:	10 mW
Modulation method:	F3F
S/N ratio:	>105 dB
Selectivity:	>80 dB
T.H.D.:	<0.5 % at 1 kHz
Connection:	3.5 mm jack
