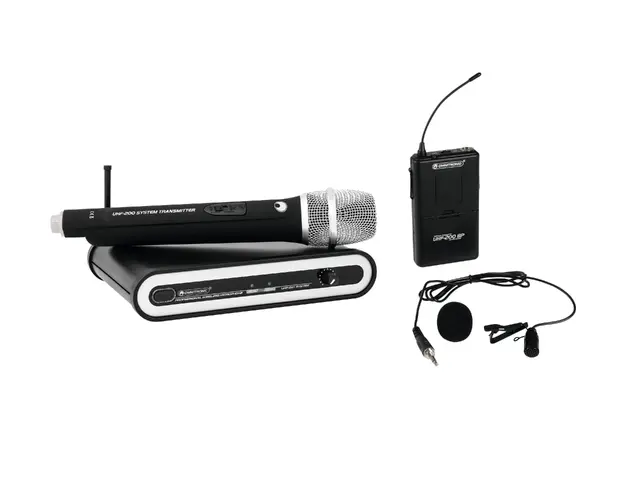

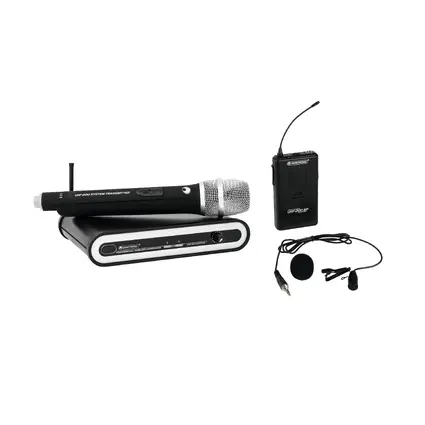

OMNITRONIC Set UHF-201 Wireless Mic System + Bodypack 828.250 MHz

OMNITRONIC



OMNITRONIC Set UHF-201 Wireless Mic System + Bodypack 828.250 MHz

Item no. 20000437

svg
svg
Features

13063232 OMNITRONIC UHF-201 Wireless Mic System 828.250MHz

Wireless microphone system with UHF PLL technology

  • Receiver unit and hand-held microphone with UHF PLL technology
  • Operation in the low-interference UHF band
  • Parallel operation of up to 4 sets is possible without any interference
  • Volume control
  • XLR and 6.3 mm output
  • Jack cable included
  • LEDs for power, carrier and audio signal
  • Microphone with mute switch and color indication
  • Matching pocket transmitter can be ordered separately
  • Operation in the Duplex Gap 823-832 MHz
  • License-free in Germany and 13 other countries
  • Polar pattern: Unidirectional
  • Power connection: Mains input Coaxial power connector (M) Power supply cord with AC adapter (m) (provided)
  • Housing design: (19") 48,3 cm rack installation possible

Microphone

  • Mute function: On/off/mute switch

13063239 OMNITRONIC UHF-200 BP Bodypack 828.250MHz

Pocket transmitter with lavalier microphone

  • Pocket transmitter as UHF PLL system, matching receivers with the same carrier frequency
  • Operation in the Duplex Gap 823-832 MHz
  • Incl. lavalier microphone
  • Transmitting power 10 mW
  • Sensitivity adjustable
  • Power LED
  • Mute switch
  • Operation via 2 x 1.5 V batteries, type AA
  • License-free in Germany and 13 other EU countries
  • Polar pattern: Unidirectional
Technical specifications
13063232 OMNITRONIC UHF-201 Wireless Mic System 828.250MHz
System:Non-Diversity
Carrier frequency:828.250 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3E
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Audio outputs:400 mV, 2.2 kohms (XLR, bal.)
200 mV, 2.2 kohms (6.3 mm jack, unbal.)
Power supply:
Receiver:100-240 V AC, 50/60 Hz via supplied power unit
Microphone:2 x 1.5 V battery, type AA
Battery life:approx. 10 hours
Dimensions, weight:
Receiver:155 x 210 x 45 mm (W x D x H), 1 kg
Microphone:50 x 265 mm (D x L), 280 g
Frequency band:UHF 823 - 832 MHz
Power consumption:10 W
Polar pattern:Unidirectional
Frequency range:40 - 18000 Hz
Height:4,5 cm
Depth:15,5 cm
Width:21 cm
Weight:0,72 kg
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (m)
13063239 OMNITRONIC UHF-200 BP Bodypack 828.250MHz
Carrier frequency:828.250 MHz
Coverage:50 m (with line-of-sight)
RF power output:10 mW
Modulation method:F3E
S/N ratio:>105 dB
Selectivity:>80 dB
T.H.D.:<0.5 % at 1 kHz
Connection:3.5 mm jack
Battery:2 x 1.5 V, type AA
Battery life:approx. 10 hours
Dimensions:200 x 650 x 25 mm
Weight:75 g
Frequency band:UHF 823 - 832 MHz
Polar pattern:Unidirectional
Frequency range:40 - 18000 Hz
Height:2,5 cm
Depth:20 cm
Width:65 cm
Packaging units
PU EAN Weight Dimensions
1 4026397578102 1,40 kg 46cm x 36cm x 27cm
