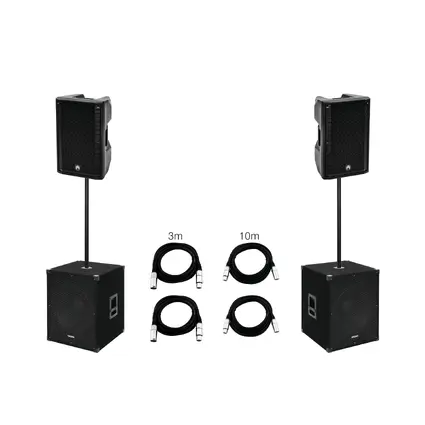

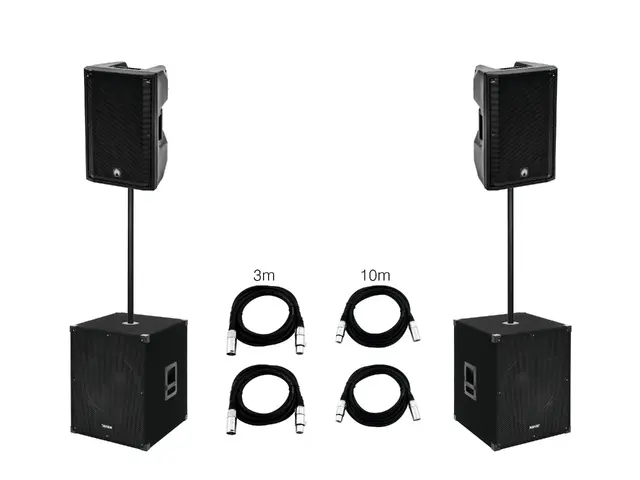

OMNITRONIC Set 2x XKB-212A + 2x MagiCarpet-151A MK2

OMNITRONIC



OMNITRONIC Set 2x XKB-212A + 2x MagiCarpet-151A MK2

only a few items available
929,00
add to cart
This is a bulky product.
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000420

Features

11038795 OMNITRONIC XKB-212A 2-Way Speaker, active, DSP

Active speaker with 12" woofer, 1,35" driver, LF: 300 W RMS, HF: 60 W RMS

  • Active 12/2 full range system for mobile live and DJ applications
  • DSP-controlled biamp amplifier (LF class D, HF class A/B)
  • Application presets for quick sound contouring:
  • - LIVE (linear adjustment)
  • - MUSIC (slight low and high frequency boost)
  • - SPEECH (optimized speech intelligibility)
  • - DJ (increased presence and bass)
  • - TRIPOD (for stand mounting)
  • - MONITOR (for use as a floor monitor)
  • - WALL (for wall mounting)
  • 24-bit DSP with adjustable high-pass filter, parametric 3-band EQ and signal delay
  • Built-in Bluetooth player for audio streaming from compatible Bluetooth devices such as smartphones, tablets and notebooks
  • 2-way bassreflex enclosure with 30 cm woofer and 3.5 cm titanium driver
  • Alphanumeric LCD with blue backlight
  • 2 mic/line inputs (XLR/6.3 mm jack) with separate level controls
  • Parallel XLR output for linking further active speaker systems
  • Limiter for overload protection
  • Master volume/DSP push control
  • Power, signal and limit LED
  • Stable plastic housing with protective grille and handles
  • 36 mm flange for stand installation
  • Applications: standing, as floor monitor, on a speaker stand or wall holder

11037408 OMNITRONIC MagiCarpet-151A MK2 Active Subwoofer

Active bassreflex subwoofer (15") with 250 watts power

  • Active bassreflex subwoofer with 250 W RMS power
  • 38 cm bass speaker (15") with 76 mm voice coil
  • Adjustable XLR input with feed-through output
  • XLR output with high-pass filter for active top speakers
  • Adjustable crossover frequency from 40 to 250 Hz
  • Bass boost, ground lift and phase control
  • Power and signal/limit indicator
  • Rugged wooden housing with black felt cover
  • Metal flange for mounting top speakers
  • Bar handles for easy transport
  • Impact-resistant metal grille, steel corners and support feet
  • For mobile applications and permanent installations
  • Suitable for car transport

60004552 OMNITRONIC Distance Tube Subwoofer/Satellite 100cm

Distance tube

  • Connecting tube for satellite systems
  • For stand inserts with standard diameter (35 mm)
  • Powder-coated steel version
  • Available in different sizes
  • Color: black

30227980 PSSO Speaker cable XLR 2x2.5 3m bk

High-quality speaker-cable

  • With Neutrik plugs from Liechtenstein
  • Cable from German production
  • Suitable for all passive speaker-systems with XLR socket
  • 2.5 mm² thick cores for amplified signals without signal loss
  • Not to be used as microphone cable!
  • Made in Germany
Technical specifications

11038795 OMNITRONIC XKB-212A 2-Way Speaker, active, DSP

Power supply:100-240 V AC, 50/60 Hz
Amplifier power:300 W RMS LF, 60 W RMS HF
LF speaker: 30 cm bass/mids (12") with 60 mm voice coil
HF speaker: 35 mm driver (1.35")
Inputs mic/line:combination XLR/6.3 mm jack, bal.
Parallel output:XLR, bal.
Sensitivity:95 dB
Dimensions (H x W x D):350 x 380 x 610 mm
Weight:15 kg
Size of woofer:30 cm (12")
Number of bass-woofer:1 Stück
Frequency range:55 - 20000 Hz

11037408 OMNITRONIC MagiCarpet-151A MK2 Active Subwoofer

Power supply:230 V AC, 50 Hz
Rated power:250 W RMS
Program power:1000 W peak
Woofer:38 cm (15")
Signal input:XLR L/R
Signal output:XLR L/R
Maximum SPL:125 dB
Acoustic loading:Bassreflex
Dimensions (W x D x H):515 x 520 x 635 mm
Weight:30 kg
Power consumption:280 W
Size of woofer:38 cm (15")
Number of bass-woofer:1 Stück
Frequency range:40 - 250 Hz

60004552 OMNITRONIC Distance Tube Subwoofer/Satellite 100cm

Maximum load:35 kg
Height:100 cm
Weight:0.8 kg
Max. Height:1 m
Maximum carrying capacity:35 kg

30227980 PSSO Speaker cable XLR 2x2.5 3m bk

Color:Black
Plug A:1 x 3-pole XLR (M)
Plug B:1 x 3-pole XLR (F)

3022055N OMNITRONIC XLR cable 3pin 10m bk

Color:Black
Plug A:1 x 3-pole XLR (M)
Plug B:1 x 3-pole XLR (F)
Packaging units
PU EAN Weight Dimensions
1 4026397622775 109,40 kg 112cm x 116,5cm x 68cm
