EUROLITE Set 4x LED BAR-12 QCL RGBA + 2x Soft Bag + Controller

Name: EUROLITE Set 4x LED BAR-12 QCL RGBA + 2x Soft Bag + Controller
Brand: EUROLITE
SKU: 20000403
Price: 569.00 EUR
Availability: OutOfStock

mpn20000403-eurolite-set-4x-led-bar-12-qcl-rgba-+-2x-soft-bag-+-controller-MainBild

mpn20000403-eurolite-set-4x-led-bar-12-qcl-rgba-+-2x-soft-bag-+-controller-Bild-1

17°

EUROLITE Set 4x LED BAR-12 QCL RGBA + 2x Soft Bag + Controller

this item is not in stock.

569,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000403

Print product

Product badge

70064502 EUROLITE DMX LED Operator 2 controller

The EUROLITE DMX LED Operator 2 is a DMX controller especially designed for the EUROLITE LED-spots and LED-effects with 6 DMX-channels.
This controller features pre-programmed presets and colors, which can easily be displayed by pressing one button. Save your precious time for programming the individual DMX-channels in order to display this color or that color.
Furthermore, you can control one smoke-machine with 2 DMX-channels by pressing a button.

Features

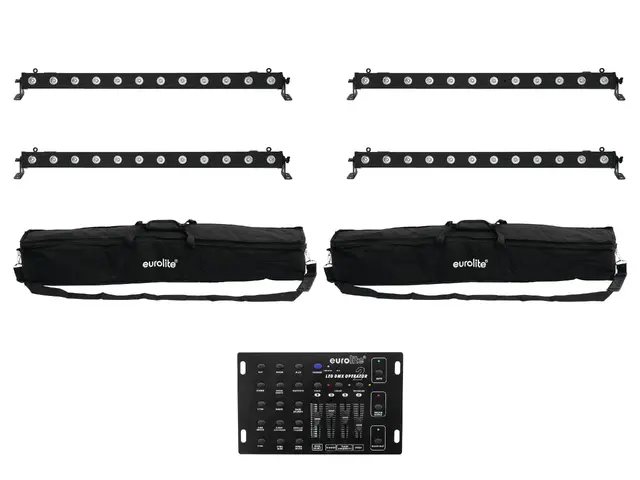

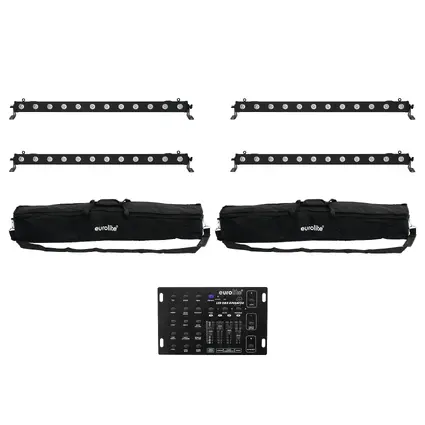

Set consisting of:
4x 51930396: EUROLITE LED BAR-12 QCL RGBA Bar
2x 30130560: EUROLITE SB-12 Soft Bag
1x 70064502: EUROLITE DMX LED Operator 2 controller

51930396 EUROLITE LED BAR-12 QCL RGBA Bar

Spotlight bar (110 cm) with 12 x 4 watt 4in1 LED (RGBA)

Operable in stand-alone mode or via DMX
2, 4, 5, 6, or 9 DMX channels selectable
Sound-control via built-in microphone
Microphone sensitivity adjustable via Control Board
Supports QuickDMX - the wireless DMX system from Eurolite
Built-in phantom-powered USB port for QuickDMX receivers (accessories)
Comfortable addressing and setting via control board with LED display and four operating buttons
Functions: Static colors, RGBA color blend, color temperature settings, internal programs, dimmer and strobe settings, Master/Slave
Equipped with 12 x 4 W QCL LED in the colors red, green, blue and amber
Hanging as well as standing installation possible
Locking possibility at the mounting bracket
IEC terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
Control: Stand-alone; QuickDMX via USB; Sound to light via Microphone; DMX
Projection: flicker-free
Effect: Strobe effect

30130560 EUROLITE SB-12 Soft Bag

Practical black softbag for LED bars (1 m length), adjustable divider

Perfect for two LED bars with 1 meter length
Large interior with removable divider
Interior upholstery helps securing and safeguarding the fixtures during transportation
Made of easy-care nylon
Handle and shoulder strap

70064502 EUROLITE DMX LED Operator 2 controller

Compact DMX controller for easy application

8 control channels only suitable for special LED-spots (RGBA and RGBW)
Select color mode for choosing single colors
Internal programs
Auto mode for running all programs
Sound-control via built-in microphone
Pause function
Blackout function
Control LEDs display current operating mode
Program Select-fader for selecting the internal programs
Speed-fader for adjusting the program-speed
Strobe-effect with adjustable speed
Additional fogger button for direct control of a DMX smoke machine (CH-7/8)
Designed for standing operation, optional installation is customer's choice
Suitable for 254 mm racks (10") with 4 units
Power supply via enclosed 12 V DC power unit
Control: Sound to light via Microphone; DMX
Housing design: Desktop console

Technical specifications

51930396 EUROLITE LED BAR-12 QCL RGBA Bar
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	24 W
IP classification:	IP20
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
LED:	12 x high-power 4 W 4in1 QCL RGBA (homogenous color mix)
Beam angle:	17°
Flash rate:	0 - 20 Hz
DMX channels:	2; 4; 5; 6; 9
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling fan:	No, cooling by convection
Control:	Stand-alone
	QuickDMX via USB
	Sound to light via Microphone
	DMX
Housing color:	Black
Length:	109 cm
Height:	10 cm
Depth:	6,5 cm
Weight:	2,90 kg
Legal specifications
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
30130560 EUROLITE SB-12 Soft Bag
Maximum load:	20 kg
Color:	Black
Material:	Textile
Width:	109,2 cm
Height:	19 cm
Depth:	17,8 cm
Weight:	0,65 kg
70064502 EUROLITE DMX LED Operator 2 controller
Power consumption:	4,00 W
IP classification:	IP20
Power connection:	Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
DMX channels:	Output 8
Control:	Sound to light via Microphone
	DMX
Color:	Black
Housing color:	Black
Housing design:	Desktop console
Width:	26,5 cm
Height:	5,5 cm
Depth:	16,5 cm
Weight:	1,12 kg
Power supply:	230 V AC, 50 Hz,
	via 12 V DC, 300 mA power unit included in the delivery
DMX512 output:	3-pin XLR connector
