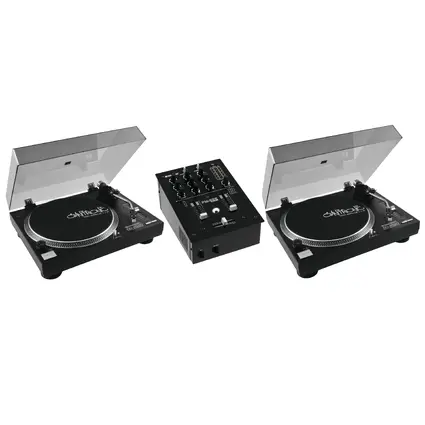

OMNITRONIC Set PM-222 + 2x DD-2520

OMNITRONIC



OMNITRONIC Set PM-222 + 2x DD-2520

Stock for approx. 12 wk(s)
559,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000396

svg
svg

10603060 OMNITRONIC DD-2520 USB Turntable bk

Direct-driven record player with phono/line switch

Digitize your old vinyl treasures in a few steps with the direct-driven turntable Omnitronic DD-2520 USB.

Copying is a child's play

Thanks to the integrated USB interface and software you can record your favorite vinyls on your PC. You don't need any drivers, the player is identified automatically. A phono pre-amp is inbuilt and helps you to digitize your music without the need of additional hifi amps or DJ mixers.

Phono/line switch
You can also simply play and enjoy your records with the DD-2520. The switchable phono/line output enables you to connect the player to almost any sound system with phono or line input.

Fully-fledged DJ turntable
As the DD-2520 shows a precision drive, a rugged housing and shock-absorbing feet, it is perfectly suited to as player in your DJ set at home.
Features

10006819 OMNITRONIC PM-222 2-Channel DJ Mixer

2-channel DJ mixer

  • 2 input channels with gain control, 2-way equalizer and phono/line switching
  • DJ microphone input with level control
  • Pre-fader listening (CUE) to the stereo input channels via adjustable headphone output, with cue mix control
  • Replaceable crossfader for crossfading between both channels
  • 6-digit stereo LED level meter and master level control
  • Inputs: 4 x line and 2 x phono (stereo RCA), DJ microphone and headphones (6.3 mm jack)
  • Outputs: master and record (stereo RCA)

10603060 OMNITRONIC DD-2520 USB Turntable bk

Direct-drive DJ turntable with switchable phono/line output

  • Built-in USB port and additional phono preamplifier, for a high-quality and convenient digitization of analog vinyl records
  • Driver installation not required, unit is identified automatically
  • Sampling rates of 44.1 kHz and 48 kHz in stereo, resolution: 16 bits
  • Incl. software for recording and editing
  • Precision direct drive
  • Delivery includes pick-up system
  • 2 speeds, pitch control ±10 %
  • Large start/stop button
  • Strobe lamp for exact speed adjustment
  • Target lamp
  • Delivery includes removable dustcover
  • Adjustable anti-skating
  • Shock-absorbing feet
  • Switchable output phono/line
  • USB 1.1 support
  • Suitable for Windows XP, Vista, 7 and Mac OS X
Technical specifications
10006819 OMNITRONIC PM-222 2-Channel DJ Mixer
Power supply:110-240 V AC, 50/60 Hz
Power consumption:30,00 W
Frequency range:20 - 20000 Hz
Power connection:Mains input C8 "figure 8" mounting version Power supply cord with Euro plug (M) (provided)
Width:19 cm
Height:13,7 cm
Depth:26 cm
Weight:2 kg
Inputs:
DJ microphone:6.3 mm jack
Minimum input voltage:3 mV RMS/ 47 kohms
LINE:stereo RCA
Minimum input voltage:150 mV RMS/ 47 kohms
PHONO:stereo RCA
Minimum input voltage:3 mV RMS/ 47 kohms
Outputs:
MASTER:stereo RCA
Max. output level:+19 dBu
Output voltage:7 V RMS
REC:stereo RCA
Output voltage:2.4V RMS
Headphones output:6.3 mm stereo jack (min. 32 ohms)
Tone control:
2 x High:-24 dB to +15 dB/ 12 kHz
2 x Low:-24 dB to +15 dB/ 100 Hz
S/N ratio:>70 dB
Distortion:<0.025%
10603060 OMNITRONIC DD-2520 USB Turntable bk
Power supply:110-240 V AC, 50/60 Hz
Power consumption:12,00 W
Frequency range:20 - 20000 Hz
Drive type:Direct drive
Speed:33 RPM and 45 RPM
Power connection:Fixed Power supply cord with Euro plug (M)
Width:45 cm
Height:15,5 cm
Depth:35 cm
Weight:11,25 kg
Type:Manual turntable
Drive method:Direct drive
Motor:Brushless 24 V DC motor
Change time between speeds:33 ->45 RPM in <1 sec
45 ->33 RPM in <1 sec
Pitch adjustment:±10 % via fader
Initial torque:>1.0 kg/cm
Start time:<1 sec
Stop time:<1 sec
Wow and flutter:<0.15 %
Rumble:55 dB DIN B
Platter:Outer diameter 330 mm
Tonearm:S-shape with Cardan's suspension
Tonearm length:230.5 mm
Overhang:16 mm
Adjustable stylus pressure0-4 g
Anti-skating range:0-7 g
Phono output level:1.5-3.6 mV/ 1 kHz 5 cm/sec
Line output level:90-216 mV/ 1 kHz 5 cm/sec
Channel separation:>15 dB
Output connectors:RCA, USB type B
Packaging units
PU EAN Weight Dimensions
1 4026397620177 29,30 kg 54cm x 52,5cm x 57cm
