4x Fresnel spot, 100 W warm white LED, extremely quiet, DMX including PRO flightcase
EUROLITE Set 4x LED THA-100F Theater-Spot + Case

7 mm

10 - 60°

The article is no longer in our assortment.

No. 20000361

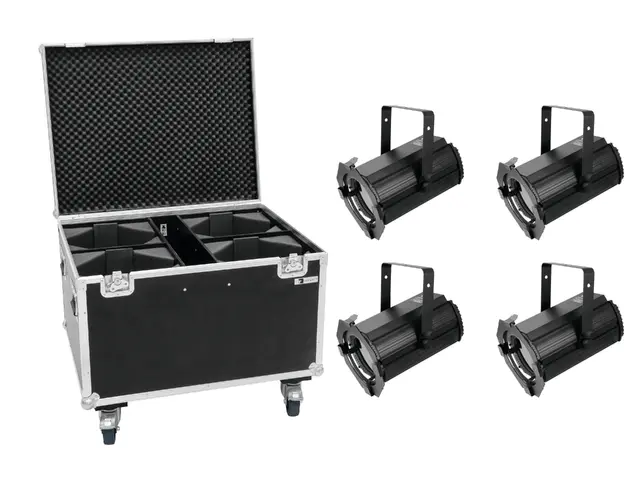

Set consisting of:

4 x EUROLITE LED THA-100F Theatre-Spot

1 x ROADINGER Flightcase 4x LED THA-100F/THA-120PC with wheels

Features

4x Fresnel spot, 100 W warm white LED, extremely quiet, DMX including PRO flightcase

EUROLITE LED THA-100F Theatre-Spot

Fresnel spotlight (fresnel lens), 100 W warm white LED, extremely quiet, DMX

Light impression of a conventional 750 W lamp
1 powerful LED 100 W COB (chip-on-board) warm white (WW)
Zoom manual
Dimmer electronic; dimmer curves adjustable; Dimmer speed (step response) adjustable
Strobe effect
The device is cooled by temperature-controlled fan
Control via DMX
Preprogrammed in LED PC-Control 512; Light´J; Light Captain
Flicker-free
With a beam angle of 10° - 60°
With mounting bracket
LCD display
Mains input and output for power linking up to 8 units

Package contents

ROADINGER Flightcase 4x LED THA-100F/THA-120PC with wheels

Trunk case with castors, PRO version

With accessory compartment
With 4 device compartments
High-quality workmanship with birch multiplex 7 mm, dark brown, laminated
Interior with foam padding
Aluminum profile frames 25mm with rounded edges
2 hinged, chromium plated case handles
2 chrome tip-over locks
2 high-quality butterfly locks
4 x castors with 2 locking brakes
4 x built-in stacking trays in the cover
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"

Technical specifications

Weight:	56,00 kg
EUROLITE LED THA-100F Theatre-Spot
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	120 W
IP classification:	IP20
Power connection:	Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:	1 x PowerCON (gray)
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) warm white (WW)
Equipment:	Zoom manual
DMX channels:	1; 3
Cooling:	Temperature-controlled fan
Control:	DMX
Preprogrammed in:	LED PC-Control 512; Light´J; Light Captain
Projection:	Flicker-free
Beam angle:	10° - 60°
Beam angle (1/2 peak):	10 - 50°
Beam angle (1/10 peak):	12 - 60°
Color temperature:	3200K
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	LCD display
Dimensions:	Length: 37 cm Width: 33,5 cm Height: 26,5 cm
Weight:	6,30 kg
Noise classification:	Class 2 (slight noise)
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x LED THA-100F/THA-120PC with wheels
Aluminum profile frames:	25 mm
Case handle:	2 pc/pcs
Stop hinge:	2 pc/pcs
Lock:	Butterfly lock: 2 pc/pcs
Transport aid:	4 x castors with 2 locking brakes 4 x built-in stacking trays in the cover
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Middle compartment:	10,5 cm x 59 cm x 40,5 cm
Outer compartment:	33 cm x 29,5 cm x 40,5 cm
Inside dimensions:	76,5 cm x 59 cm x 40,5 cm
Dimensions:	Width: 82 cm Depth: 65,5 cm Height: 67,5 cm
Weight:	27,60 kg
