Technical specifications

Weight:	41.00 kg
EUROLITE LED MFX-3 Action Cube
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	75 W
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Lamp type:	LED lamp
LED type:	48 x 0.2 W SMD 2835 3in1 R/G/B (homogenous color mix) 6 x 10 W SMD 5050 4in1 RGBW (homogenous color mix)
Max. TILT movement:	200° positioning plus infinity auto position correction (feedback)
Max. PAN movement:	540°, 630° positioning auto position correction (feedback)
Flash rate:	0 - 25 Hz
DMX channels:	14; 16
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Control:	DMX; stand-alone; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain
Projection:	Flicker-free
Beam angle (1/2 peak):	9°
Housing color:	Black
Dimensions:	Width: 25 cm Depth: 18 cm Height: 35 cm
Weight:	5.35 kg
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting
ROADINGER Flightcase 4x LED MFX-3 with wheels
Maximum load:	50 kg
Transport aid:	Castors
Use of brands:	Branded hardware
Material:	Birch multiplex, 7 mm
Color:	Dark brown, laminated
Accessory compartment:	10 cm x 42 cm x 32 cm
Compartment dimensions:	24 cm x 21 cm x 32 cm
Dimensions:	Width: 70 cm Depth: 49.5 cm Height: 61 cm
Weight:	19.60 kg

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
20000359-Images-.zip

Video link

EUROLITE Set 4x LED MFX-3 Action Cube + Case

The article is no longer in our assortment.

No. 20000359

9°

7 mm

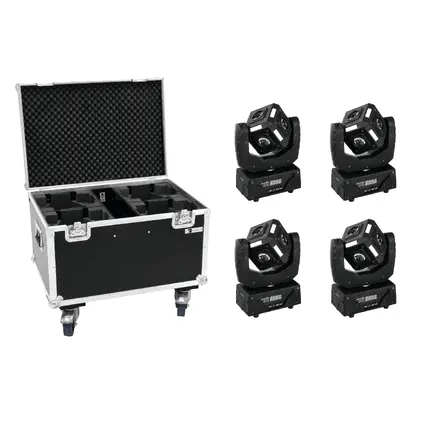

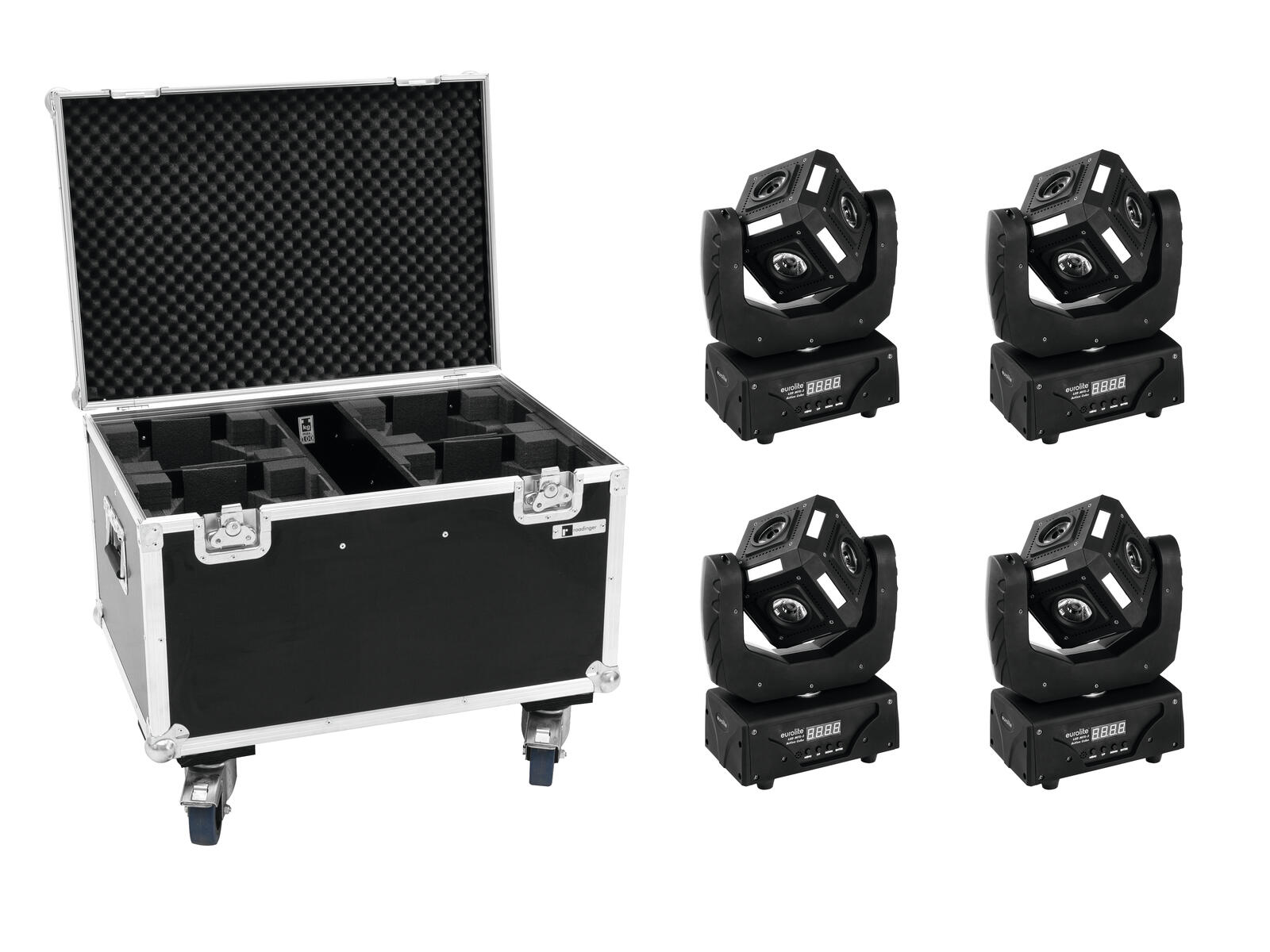

Set consisting of:

4 x EUROLITE LED MFX-3 Action Cube

1 x ROADINGER Flightcase 4x LED MFX-3 with wheels

EUROLITE LED MFX-3 Action Cube

Moving Effect with 6 light beams and Mood Light strips on the edges

Beam effect with 6 lenses and 10 W quadcolor LEDs in RGBW colors and 12 LED mood light strips with 4 RGB SMD LEDs each
Compact lightweight
With infinity function for unlimited TILT movement
Positioning within 630° PAN and 200° TILT
PAN-angle switchable between 630° and 540°
Functions: Colored beams, LED mood light strips, auto mode, color presets, color change, Master/Slave function, built-in programs, stepless RGBW color mixture
Masterdimmer
Strobe effect with 1-25 flashes per second and with adjustable speed
Random strobe effect
Automatic position correction
Exact positioning via 16 bit PAN/TILT movement resolution
DMX-controlled operation or stand-alone operation with Master/Slave function
Addressing via control panel with 4-digit LED display
Switch-mode power supply for operation between 100 and 240 volts
Ready for connection with power cord and safety plug
48 LEDs 0.2 W SMD 2835 3in1 R/G/B (homogenous color mix)
6 LEDs 10 W SMD 5050 4in1 RGBW (homogenous color mix)
PAN angle switchable between 540° and 630°
Auto position correction (feedback)
Multi beam effect
Control via DMX; stand-alone; sound to light via microphone
Flicker-free
With a beam angle of 9°

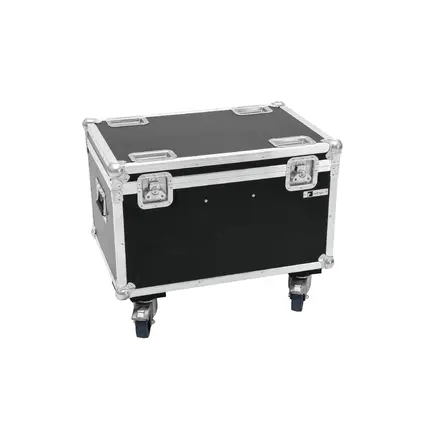

ROADINGER Flightcase 4x LED MFX-3 with wheels

Fitted for four devices
Additional accessory compartment
Compartments upholstered with foam
High-quality workmanship with birch multiplex, dark brown laminated
Aluminum profile frames with rounded edges
Three-leg steel ball corners
2 tip-over locks
4 castors (100 mm), 2 of which with locking brakes
2 chrome butterfly locks
2 chrome case handles
4 stacking dishes for stacking the cases
Castors
Branded hardware
Made in Europe
For further information about this product, please refer to the Data Sheet under "Downloads"
