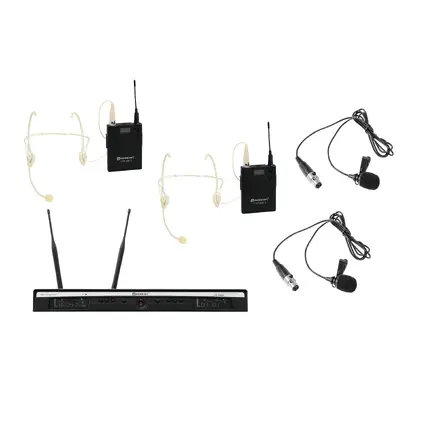

RELACART Set UR-260D Bodypack with Headset and Lavalier

svg
svg
svg
1 U
svg
svg
svg
RELACART



RELACART Set UR-260D Bodypack with Headset and Lavalier

Stock for approx. 12 wk(s)
519,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000348

13055210 RELACART UR-260D 2-channel UHF Receiver

The UR-260D is a dual-channel true diversity UHF system with a host of innovative features. In addition to automatic frequency scanning for interference-free transmission, one also finds an intelligent feedback suppression system. With MagicEQ, various sound characteristics of world-known microphone capsules can be emulated or created yourself. The presets can be changed from a computer via software - even during live operation.
Features

13055210 RELACART UR-260D 2-channel UHF Receiver

True diversity wireless receiver with DSP for microphone modeling and PC software

  • 2-channel multifrequency wireless receiver with 24-bit processor for high-end audio quality
  • Integrated MagicEQ enables amazing microphone modeling of hand-held microphones
  • Choose from 7 presets based on popular microphone models (e835, beta58, e935, D5, SM57, N/D767a, SM58) and 3 user-definable presets
  • Integrated Feedback Killer effectively eliminates feedback, providing maximum gain and increased clarity on every microphone
  • DSP programming and management via Ethernet port and intuitively operated PC software
  • High-quality true diversity reception
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 wireless channels is possible without any interference
  • Pilot tone technology (PLL) and noise squelch for interference-free operation
  • Operation range with line of sight approx. 80 meters
  • Automatic frequency scan (AFS) finds interface-free channels
  • Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
  • LCDs for battery status of the transmitters, antenna A/B, RF reception level, AF audio level and frequency
  • Multiple units can be linked with network cables
  • Lock function avoids accidental changing of settings
  • XLR and 6.3 mm jack output
  • 2 detachable BNC antennas allow for use with the R-14D antenna divider
  • Matching hand-held microphone (UR-260D) optionally available
  • Delivery includes jack cable and power unit
  • Durable metal housing
  • 483 mm rack installation possible with supplied mounting brackets
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • DSP: Digital signal processor
  • PC connect: Relacart software via RJ45 (F) mounting version
  • Housing design: (19") 48.3 cm rack installation (provided) 1 U

13055211 RELACART UT-222 Bodypack with HM-800S Headset

Pocket transmitter with PLL multifrequency transmitter, 823-832 + 863-865 MHz

  • Pocket transmitter for receivers UR-222S and UR-260D
  • Durable aluminum alloy housing, applicable for touring
  • Incl. headset microphone HM-800S
  • Lavalier microphone LM-C400 optional
  • Pilot tone technology (PLL) for interference-free operation
  • 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
  • 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
  • Parallel operation of up to 9 systems is possible without any interference
  • Infrared interface for easy and error-free synchronization with the receiver via infrared signal
  • Operation range approx. 80 meters
  • OLED for battery status, frequency, channel and group
  • Mute function
  • Adjustable input gain
  • RF output power Hi/Low adjustable
  • Lock function avoids accidental changing of settings
  • Long battery life for up to 11 hours continuous operation
  • License-free and approved in the EU (please check on a country-by-country basis)
  • Battery: 2 x Mignon (AA) (not included)

Microphone

  • Polar pattern: Omnidirectional

13055191 RELACART LM-C420 Lavalier unidirectional

Inconspicuous electret lavalier microphone

  • For attaching to the user's tie, shirt or collar
  • Provides high-quality voice pickup for public speaking, theater, or business presentations
  • Connection with the T-31 pocket transmitter via 4-pin mini XLR plug
  • Delivery includes foam windscreen
  • Polar pattern: Cardioid
Technical specifications
13055210 RELACART UR-260D 2-channel UHF Receiver
Type:Receiver
Power supply:100-240 V AC, 50/60 Hz
12 V DC 1 A
Power consumption:12 W
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Frequency range:45 - 18000 Hz
S/N ratio:>100 dB
Number of channels:2
Range:80 m
Material:Metal
Housing design:(19") 48.3 cm rack installation (provided) 1 U
Width:41 cm
Height:4,3 cm
Depth:22,5 cm
Weight:2,25 kg
Receiving frequencies:90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:11 MHz
Deviation:±45 kHz
Frequency stability:±0.0005 %
T.H.D.:<0.5 % at 1 kHz
Modulation method:FM
Sensitivity:5 dBµV (S/N >60 dB at 25 deviation)
Audio output:2 x XLR, bal.
6.3 mm jack, unbal.
Antenna inputs:2 x BNC (supply 8 V/150 mA)
Communication:LAN (TCP/IP)
for DSP programming via Ethernet
Signal processor:96 kHz, 24 bits
13055211 RELACART UT-222 Bodypack with HM-800S Headset
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Battery:2 x Mignon (AA) (not included)
Frequency band:UHF 863 - 865 MHz; UHF 823 - 832 MHz
Range:80 m
Material:aluminium
Width:6,6 cm
Height:8,4 cm
Depth:2,3 cm
Weight:0,19 kg
Microphone
Polar pattern:Omnidirectional
Frequency range:45 - 18000 Hz
Sensitivity:-47 dB
Length of the cable:1,0 m
Connector type:Mini XLR (W) 4-pin
Color:skin-colored
Capsule type:Condenser
Transmitting frequencies:90
10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:11 MHz
Deviation:±45 kHz
Modulation:FM
Current consumption:approx. 110 mA
Headset microphone:
Impedance:2.2 kohms
Power supply:2-10 V DC
Capsule dimensions:6 x 5 mm
13055191 RELACART LM-C420 Lavalier unidirectional
Type:Lavalier microphone
Power connection:Mains input Mini XLR (W) 4-pin
Polar pattern:Cardioid
Frequency range:20 - 18000 Hz
Sensitivity:-40,5 dB
Cable length:1,2 m
Capsule type:Condenser
Weight:0,02 kg
Type:Electret
Impedance:2.2 kohms
Power supply:2-10 V DC
Capsule dimensions:4 x 1.5 mm
