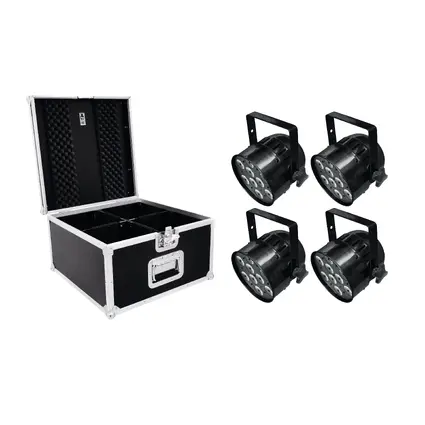

EUROLITE Set 4x LED PAR-56 HCL Short sw + PRO Case

Name: EUROLITE Set 4x LED PAR-56 HCL Short sw + PRO Case
Brand: EUROLITE

only a few items available

659,00 €

Find a dealer

Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

20°

7 mm

Features

51913591 EUROLITE LED PAR-56 HCL Short bl

PAR-56 Spot with 9 x 10 W 6in1 LED and RGBAWUV color mixing

Operable in stand-alone mode or via DMX
DMX512 control possible via any commercial DMX controller (occupies max.10 channels)
4, 6 or 10 DMX channels selectable for various applications
Sound-control via built-in microphone
Adjustable microphone sensitivity via control board
Functions: Static colors, RGBAW+UV color mixture, UV effects, auto mode, sound control, internal programs, dimmer and strobe settings via DMX, Master/Slave
Equipped with 9 x 10 W 6in1 LED in red, green, blue, amber, white and UV
Locking possibility at the mounting bracket
Comfortable addressing and setting via control board with LED display and four operating buttons
Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
Switch-mode power supply for operation between 100 and 240 volts
Ready for connection via included IEC power cord with safety power plug
Silver or black housing available
Case color: Black
Effect: Strobe effect; UV
Projection: flicker-free
Power connection: Mains input IEC connector (M) mounting version Power supply cord with safety plug (M) (provided)
Control: IR remote control; Stand-alone; DMX
LED: 9 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)

Remote control

31000700 ROADINGER Flightcase 4x PAR-56 Spot short

PRO flightcase for 4 PAR-56 spots

Compartments for four PAR-56 spots
Detachable compartments - case can also be used as universal transport case
High-quality workmanship with multiplex birch wood, dark brown laminated
Aluminum profile frames (30 mm) with rounded edges
Interior upholstered with foam
Three-leg, medium-sized steel ball corners
2 hinges
1 butterfly lock
1 case handle
Suitable e.g. for items 42000800, 42000802, 42000810, 42000812, 51913612, 51913613, 51913618, 51913619, 51913620, 51913625, 51913624, 51913628, 31000700, 42000410, 42000420, 42000825, 42000826, 51913618, 51913619
Made in Europe

Technical specifications

51913591 EUROLITE LED PAR-56 HCL Short bl
DMX channels:	4/6/10
DMX connection:	3-pin XLR
Sound-control:	via built-in microphone
LED type:	10 W RGBAW+UV (6in1)
LED number:	9
Beam angle:	20°
Dimensions (L x W x H):	175 x 205 x 230 mm
Ecodesign regulation:	Yes
Special product:	Not designed for household room illumination
Purpose:	Show effect lighting
IP classification:	IP20
Weight:	1,6 kg
Power consumption:	75 W
Laser class:	Without laser
Beam angle:	20°
Height:	23 cm
Width:	20,5 cm
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (M)
DMX channels:	4; 6; 10
Depth:	17,5 cm
LED:	9 x high-power 10 W 6in1 HCL RGBWA/UV (homogenous color mix)
Power supply:	110-240 V AC, 50/60 Hz
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
31000700 ROADINGER Flightcase 4x PAR-56 Spot short
Strength:	7 mm
Outside dimensions (W x D x H):	480 x 480 x 310 mm
Inside dimensions (W x D x H):	445 x 445 x 240 mm
Compartment dimensions (W x D x H):	215 x 215 x 240 mm
Weight:	7,60 kg
Color:	Dark brown laminated
Maximum load:	25 kg
Width:	48,5 cm
Depth:	48,5 cm
Height:	31 cm
Material:	Birch multiplex 7 mm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397603101
