EUROLITE Set 2x LED BAR-650 + Soft-Bag

EUROLITE

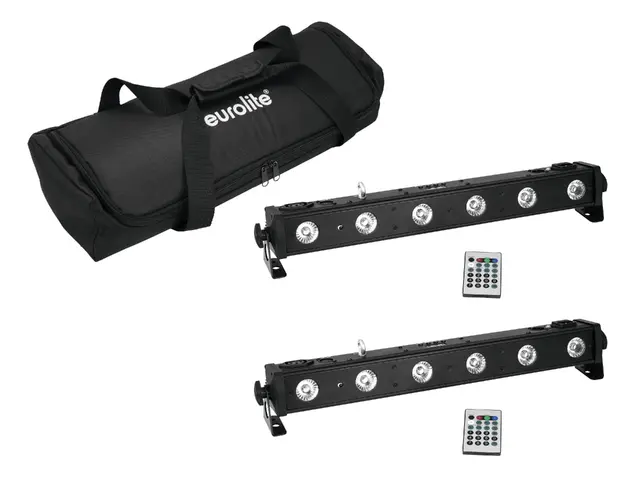

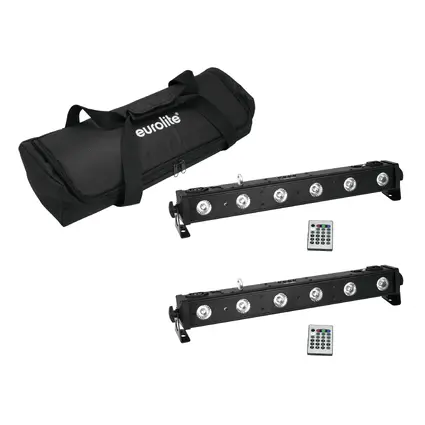

EUROLITE Set 2x LED BAR-650 + Soft-Bag

Item no. 20000315

svg
svg
20°
svg
svg
svg
svg
svg
svg
Features

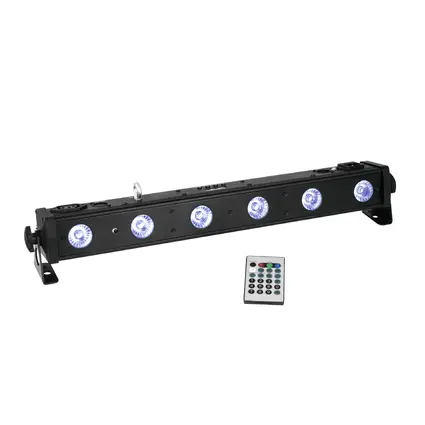

51930433 EUROLITE LED BAR-650 RGB+UV 4in1

Spotlight bar (60 cm) with 6 x 5 W 4in1 LED (RGB+UV) and 3 segments

  • Equipped with six QCL LEDs in the colors red, green, blue and UV
  • 1, 3, 4, 6, 7 or 12 DMX channels selectable
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Addressing and setting via Control Board with LED display and four operating buttons
  • Additional controlling possibility via the EUROLITE IR-8 remote control, included in delivery
  • Functions: Static colors, RGBUV color blend, internal programs, dimmer and strobe settings via DMX, Master/Slave
  • Every LED group (each with 2 LEDs) can be controlled individually in 12CH mode
  • Sound-control via built-in microphone
  • Hanging as well as standing installation possible
  • Locking possibility at the brackets
  • Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
  • Feed-through output allows to power up to 8 devices
  • Ready for connection via enclosed IEC power cord with safety-plug
  • LED: 6 x high-power 5 W 4in1 QCL RGB/UV (homogenous color mix)
  • Power output: 1 x IEC connector (F) mounting version
  • Control: IR remote control; Stand-alone; DMX
  • Projection: flicker-free
  • Effect: Strobe effect

Remote control

  • Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in

30130580 EUROLITE SB-205 Soft Bag

Universal softbag, 575 x 170 x 120 mm

  • Big universal compartment with divider
  • Ideal for e.g. LED bars with 50 cm length and accessories
  • Interior upholstery helps securing and safeguarding the fixtures during transportation
  • Made of easy-care nylon
  • Two handles with velcro fastener
Technical specifications
51930433 EUROLITE LED BAR-650 RGB+UV 4in1
Power supply:110-240 V AC, 50/60 Hz
Power consumption:30 W
LED:6 x high-power 5 W 4in1 QCL RGB/UV (homogenous color mix)
DMX channels:1; 3; 4; 6; 7; 12
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:1 x IEC connector (F) mounting version
Control:IR remote control
Stand-alone
DMX
Beam angle:20°
Case color:Black
Length:57,5 cm
Height:8,5 cm
Depth:8 cm
Weight:1,93 kg
Remote control
Battery:1 x Button cell 3.0 V CR2025 lithium manganese built-in
DMX connection:3-pin XLR
Sound-control:via built-in microphone
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
30130580 EUROLITE SB-205 Soft Bag
Maximum load:25 kg
Color:Black
Material:Textile
Width:57,5 cm
Height:12 cm
Depth:17 cm
Weight:0,30 kg
Packaging units
PU EAN Weight Dimensions
1 4026397601275 7,20 kg 61cm x 31cm x 42cm
