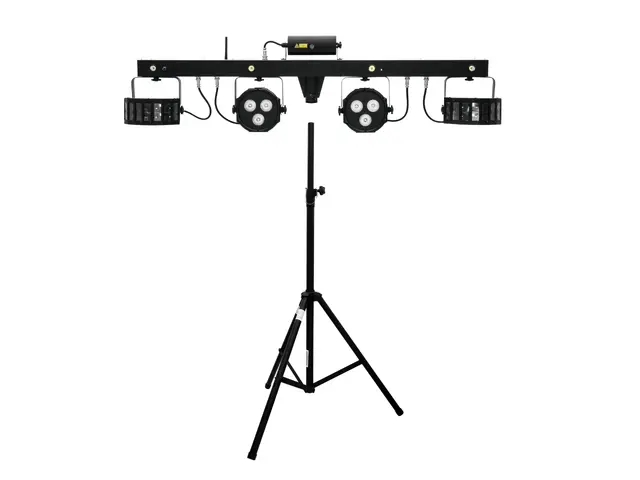

EUROLITE Set LED KLS Laser Bar FX + Speaker system stand alu bk

13° Spotlight

7° bar

The article is no longer in our assortment.

Features

51741090 EUROLITE LED KLS Laser Bar FX Light Set

Bar with 2 derbies, 2 spots, white strobe LEDs, laser (RG, 2M), foot switch

4in1 DMX light effect bar with laser, 2 rotating LED derbies, 2 LED spots and white strobe LEDs
Laser class 2M: does not require additional protective measures or appointment of a laser safety officer
Ultra-light ideally suited for mobile use
Crossbar with integrated DMX control unit and stand sleeve
Comes pre-assembled with practical transport bag
Convenient control via wireless foot switch and IR remote control
2 laser diodes project hundreds of red and green laser beams
2 rotating derbies for mirror ball effects with three bright LEDs (red, green and blue) each
2 spots three bright RGB LEDs (3in1) each
4 white strobe LEDs
Auto, music, master/slave and DMX mode
37 built-in auto and music show programs that include all 4 effect units
Addressing and setting via control panel with 4-digit LED display
Sound-control via built-in microphone with sensitivity control
LED derbies and LED spots individually adjustable and interchangeable
Swivel mounting brackets for truss mounting
When fog is used, this effect becomes especially attractive
IEC terminals for power linking up to 8 units
Switch-mode power supply for operation between 100 and 240 volts
Control: Wireless footswitch; Sound to light via Microphone; IR remote control; Stand-alone; DMX; preprogrammed in EASY SHOW
Effect: Multi beam effect; Strobe effect; laser

Spotlight

Light effect

LED: Multi beam effect 2 x separate controlling each with 3 x high-power 1 W RGB (homogenous color mix)

bar

60004120 OMNITRONIC Speaker System Stand alu bk

High-quality speaker stand

Technical specifications

51741090 EUROLITE LED KLS Laser Bar FX Light Set
Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	50 W
IP classification:	IP20
Protection class:	Protection class I
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Flash rate:	0 - 30 Hz
DMX channels:	3; 5; 9; 27
DMX input:	1 x 3-pin XLR (M) mounting version
DMX output:	1 x 3-pin XLR (F) mounting version
Cooling fan:	Yes
Control:	Wireless footswitch
	Sound to light via Microphone
	IR remote control
	Stand-alone
	DMX
	preprogrammed in EASY SHOW
Housing color:	Black
Width:	132 cm
Height:	32 cm
Depth:	14,5 cm
Weight:	9,65 kg
laser
Laser color:	2in1 BCL RG
Laser class:	Class 2M
Laser module:	R red 100 mW 650nm
	G green 30 mW 532nm
Spotlight
LED:	Spot 3 x high-power 3 W 3in1 TCL RGB
Beam angle (1/2 peak):	13°
Beam angle (1/10 peak):	20°
Light effect
LED:	Multi beam effect 3 x high-power 1 W RGB (homogenous color mix)
bar
LED:	Strobe effect 4 x high-power 1 W CW
Beam angle (1/2 peak):	7°
Foot control
Battery:	1 x 9.0 V E block 6LR61 alkaline manganese (provided)
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
60004120 OMNITRONIC Speaker System Stand alu bk
Maximum carrying capacity:	30 kg
Height:	maximum: 2,30 m minimum: 1,40 m
Color:	Black
Type (general stands):	Speaker stand/manual
Material:	Aluminum
Weight:	3,45 kg
Maximum load:	30 kg
Maximum load (DIN15560):	18 kg
Minimum height:	1.40 m
Maximum height:	2.20 m
