OMNITRONIC Set VFM-215AP + VFM-215A + WS-1T + WS-1R + Speaker stand MOVE MK2

OMNITRONIC Set VFM-215AP + VFM-215A + WS-1T + WS-1R + Speaker stand MOVE MK2

The article is no longer in our assortment.

Item no. 20000279

Print product

Product badge

Features

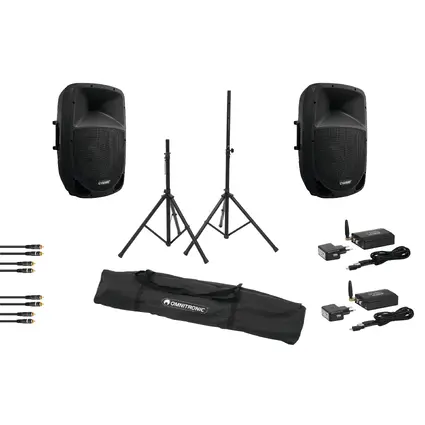

Set consisting of:
1x 11038776: OMNITRONIC VFM-215AP 2-Way Speaker, active
1x 11038775: OMNITRONIC VFM-215A 2-Way Speaker, active
1x 13072210: OMNITRONIC WS-1T 2.4GHz Transmitter
1x 13072211: OMNITRONIC WS-1R 2.4GHz Receiver
1x 60004023: OMNITRONIC Speaker Stand MOVE MK2 set
2x 30209354: OMNITRONIC RCA cable 2x2 0.6m

11038776 OMNITRONIC VFM-215AP 2-Way Speaker, active

Active 2-way speaker system (15") with 150 watts for PA and DJ applications with audio player and Bluetooth

MP3 player with Bluetooth receiver, blue LCD and IR remote control
SD card slot and USB input
Stream music wirelessly from your mobile devices (e.g. smartphone, tablet) via Bluetooth
Class A/B circuitry: optimum sound and power at low weight and compact dimensions
2-way bass-reflex system with 38 cm woofer and 2.5 cm tweeter
2 mic inputs with separate level controls
Line input, RCA
Master control with 2-way tone control, clip and power LED
Line output for linking further active speaker systems
2 wheels for easy transport
Stable plastic housing with protective grille and handles
Flange for stand installation
Can be used as floor monitor, standing, on a speaker stand or wall holder
For mobile live and DJ applications
Controlling by IR remote control; Bluetooth
Transport aid: Trolley

11038775 OMNITRONIC VFM-215A 2-Way Speaker, active

Aktive speaker, 15" woofer, 1" driver, 150 W RMS

Class A/B circuitry: optimum sound and power at low weight and compact dimensions
2-way bass-reflex system with 38 cm woofer and 2.5 cm tweeter
2 mic inputs with separate level controls
Line input, RCA
Master control with 2-way tone control, clip and power LED
Line output for linking further active speaker systems
2 wheels for easy transport
Stable plastic housing with protective grille and handles
Flange for stand installation
Can be used as floor monitor, standing, on a speaker stand or wall holder
For mobile live and DJ applications
Transport aid: Trolley

13072210 OMNITRONIC WS-1T 2.4GHz Transmitter

Digital audio transmission system 2.4 GHz, with USB

Digital transmitter for wireless transmission of stereo audio signals with 2.4 GHz
Transmit music via radio from your PC or MP3 player to your stereo with outstanding audio quality
Connects USB devices (PC, smartphone, tablet PC) or audio devices with line level (e.g. CD player)
Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality (16 bits/48 kHz)
Stereo audio input: mini USB 2.0 port or RCA L/R
Selectable source of signal (USB or line input)
Push button for pairing with the receiver
Removable rod antenna
Operation via supplied power unit or USB port
Rugged, compact metal housing
Incl. USB cable
2.4 GHz ISM band - license-free worldwide
Controlling by W-Lan
Use a operating range up to 50m in the open air
Use a operating range up to 30m in buildings
The device can be connected via USB to the PC

13072211 OMNITRONIC WS-1R 2.4GHz Receiver

Digital audio transmission system 2.4 GHz

Digital receiver for wireless reception of stereo audio signals with 2.4 GHz
Transmit music via radio from your PC or MP3 player to your stereo or active speaker with outstanding audio quality
Simultaneous operation of an unlimited number of receivers possible
Digital transmission in the 2.4 GHz range provides for high resistance to interference and unique sound quality (16 bits/48 kHz)
Operating range up to 30 m indoors and up to 50 m outdoors
Stereo audio output: RCA L/R
Push button for pairing with the transmitter
Removable rod antenna
Operation via supplied power unit
Rugged, compact metal housing
Supports PC and Mac
2.4 GHz ISM band - license-free worldwide
Controlling by W-Lan
Use a operating range up to 50m in the open air
Use a operating range up to 30m in buildings

60004023 OMNITRONIC Speaker Stand MOVE MK2 set

2 high-quality stands, extendible up to 185 cm, max. load 30 kg + bag

Set consisting of 2 x speaker stand and carry bag
Height adjustable, with locking pin
Height: 100-185 cm
Tube diameter: Ø 35 mm
Centric load: 30 kg
Scratch-resistant black finish
Stable steel version

Technical specifications

Weight:	32.88 kg
11038776 OMNITRONIC VFM-215AP 2-Way Speaker, active
Power supply:	230 V AC, 50 Hz
Rated power:	150 W RMS
Program power:	300 W
Frequency range:	45 - 20000 Hz
Max. SPL:	122 dB
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Control:	IR remote control; Bluetooth
Audio player:	USB + SD + Bluetooth
Equalizer:	Master: 1 x 2-band tone control
Attachment system:	Ø 35mm
Connections:	Input: 2 x Microphone via 6.3 mm plug (unbal.) Input: 2 x Microphone via 3-pin XLR Input: 1 x line via stereo RCA Output: 1 x line via stereo RCA
Input channels:	2 x mono via XLR or jack, channel control via Rotary knob 1 x stereo with Line-player switch via RCA or player, channel control via Rotary knob
Format:	MP3, WAV
Number of files:	Max. 999
Available storage media:	USB devices/SD cards (FAT 32)
Speakers:	1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet 1 x Voice coil compression tweeter highs (1") approx 2,5 cm Horn vent (1") approx 2,5 cm 1 x woofer (15") approx 38 cm with ferrit magnet Voice coil lows (2") approx. 5 cm
Type of speaker:	Compact cabinet speaker
Dimension:	Width: 48 cm Depth: 39.5 cm Height: 74 cm
Weight:	13.25 kg
Remote control
Battery:	1 x Button cell 3.0 V CR2025 lithium manganese built-in
11038775 OMNITRONIC VFM-215A 2-Way Speaker, active
Power supply:	230 V AC, 50 Hz
Rated power:	150 W RMS
Program power:	300 W
Frequency range:	45 - 20000 Hz
Max. SPL:	122 dB
Power connection:	Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
Equalizer:	Master: 1 x 2-band tone control
Attachment system:	Ø 35mm
Connections:	Input: 2 x Microphone via 6.3 mm plug (unbal.) Input: 2 x Microphone via 3-pin XLR Input: 1 x line via stereo RCA Output: 1 x line via stereo RCA
Input channels:	2 x mono via XLR or jack, channel control via Rotary knob 1 x stereo with Line-player switch via RCA or player, channel control via Rotary knob
Speakers:	1 x compression tweeter highs (1") approx 2,5 cm with ferrit magnet 1 x Voice coil compression tweeter highs (1") approx 2,5 cm Horn vent (1") approx 2,5 cm 1 x woofer (15") approx 38 cm with ferrit magnet Voice coil lows (2") approx. 5 cm
Type of speaker:	Compact cabinet speaker
Dimension:	Width: 48 cm Depth: 39.5 cm Height: 74 cm
Weight:	13.30 kg
13072210 OMNITRONIC WS-1T 2.4GHz Transmitter
Type:	Audio transmission
Power supply:	5 V DC 500 mA
Frequency range:	20 - 20000 Hz
S/N ratio:	>96 dB
THD:	<0.03 % at 1 kHz
Power connection:	Mains input Micro USB (F) mounting version Power supply cord with AC adapter (provided)
Control:	W-Lan
Sample rate:	48 kHz
Crosstalk:	>-96 dB
Control elements:	Source selector, power switch, connect
Connections:	1 x antenna via SMA (F) mounting version Input: 1 x line via stereo RCA Input: 1 x line via Micro USB (F) mounting version
Frequency band:	2.4 GHz
Frequency selection:	32
Modulation:	GFSK, stereo
USB port:	1 x USB 2.0, Typ Micro USB (F) mounting version
Converter:	16 bit
Range:	50 m in the open air 30 m in buildings
Material:	Metal
PC connect:	Via USB
Dimension:	Width: 11 cm Depth: 6.5 cm Height: 6.3 cm
Weight:	0.22 kg
13072211 OMNITRONIC WS-1R 2.4GHz Receiver
Type:	Audio transmission
Frequency range:	20 - 20000 Hz
S/N ratio:	>96 dB
Power connection:	Mains input USB, type B Power supply cord with AC adapter (provided)
Control:	W-Lan
Frequency band:	2.4 GHz
Range:	50 m in the open air 30 m in buildings
Material:	Metal
Dimension:	Width: 11 cm Depth: 6.5 cm Height: 6.3 cm
Weight:	0.22 kg
Power supply:	5 V DC, 500 mA
	via USB port or supplied PSU
Carrier frequency:	2406-2472 MHz (ISM), 32 channels
Modulation:	GFSK
THD:	-70 dB
Crosstalk:	-96 dB
USB port:	2.0, type mini B
Line output:	RCA L/R
Converter:	16 bits
Sample rate:	48 kHz
60004023 OMNITRONIC Speaker Stand MOVE MK2 set
Maximum carrying capacity:	30 kg
Tube diameter sector:	35
Height:	Maximum: 1.85 m Minimum: 1.00 m
Attachment system:	Ø 35mm
Type (general stands):	Speaker stand/manual
Material:	Steel
Color:	Black
Weight:	5.80 kg
30209354 OMNITRONIC RCA cable 2x2 0.6m
Cable construction:	2 x 0.22 mm² Audio cable
Cable length:	0.6 m
Plug A:	2 x RCA (M)
Plug B:	2 x RCA (M)
Use of brands:	OMNITRONIC
Color:	Black
Weight:	0.05 kg
