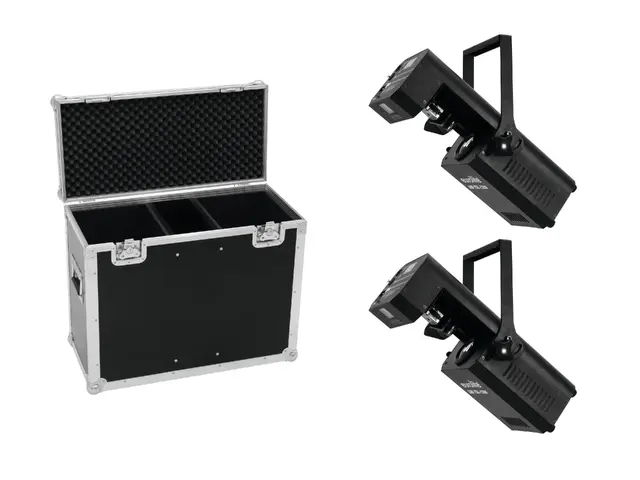

EUROLITE Set 2x LED TSL-1200 Scan + Case

svg
svg
14°
svg
svg
svg
7 mm
svg
svg
svg
svg
svg
EUROLITE



EUROLITE Set 2x LED TSL-1200 Scan + Case

Stock for approx. 12 wk(s)
1.379,00
add to cart
Find a dealer
Recommended retail price (RRP) excl. VAT
Prices in retail stores may vary.

Item no. 20000265

Features

51786190 EUROLITE LED TSL-1200 Scan

Scanner with 120 W LED, gobos, rotating prism, color wheel, motorized focus

  • Equipped with a 120 W COB LED
  • 13 or 15 DMX channel mode selectable
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Sound-controlled via built-in microphone
  • Internal programs
  • Color wheel with 8 dichroic color filters and white
  • Rainbow effect with adjustable speed
  • Gobo-wheel with 7 rotating gobos plus open
  • Gobo shake function
  • Rotating 3-facet prism
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Strobe effect with adjustable speed
  • Motorized focus
  • Electronic dimmer
  • Fan-cooled
  • Lightbeam with 14° radiation angle
  • Control board with graphic LC display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse
  • Switch-mode power supply for operation between 100 and 240 volts
  • DMX control via every standard DMX controller
  • Color generation: Color wheel 8 dichroic filters plus open
  • Control: DMX; Sound to light via Microphone; Stand-alone
  • Projection: flicker-free
  • Effect: Gobo effect

31005109 ROADINGER Flightcase 2x TSL-750/TSL-1200

PRO flightcase for 2 TSL-750/TSL-1200

  • Interior seperated in three compartments, two for TSL-750/TSL-1200 (51786185 or 51786190) and one for accessories
  • High-quality workmanship with wood, dark brown laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Interior upholstered with foam
  • Three-leg, medium-sized steel ball corners
  • 2 hinges
  • 2 high-quality butterfly locks
  • 2 case handles
  • Strap handle
  • Additional dimensions: Compartment dimensions 23x27x46 cm
  • Additional dimensions: Accessory compartment 10,5x29x46 cm
  • Additional dimensions: Inside dimensions 64x27x46 cm
  • Made in Germany
Technical specifications
51786190 EUROLITE LED TSL-1200 Scan
Power supply:100-240 V AC, 50/60 Hz
Power consumption:165 W
IP classification:IP20
Power connection:Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided)
LED:1 x COB (chip-on-board) 120 W Color wheel
Beam angle:14°
Max. TILT movement:Exact positioning (16 bit resolution) 80°
Max. PAN movement:Exact positioning (16 bit resolution) 175°
Flash rate:0 - 18 Hz
Equipment:fehlt; Prisma 3-fold; Focus motor-driven
Color generation:Color wheel 8 dichroic filters plus open
Gobos:fehlt, 7 gobos and open
DMX channels:13; 15
DMX input:1 x 3-pin XLR (M) mounting version
1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 3-pin XLR (F) mounting version
Cooling fan:Yes
Control:DMX
Sound to light via Microphone
Stand-alone
Housing color:Black
Width:26 cm
Height:22,5 cm
Depth:47,5 cm
Weight:8,45 kg
Legal specifications
Ecodesign regulation:Yes
Special product:Not designed for household room illumination
Purpose:Show effect lighting
31005109 ROADINGER Flightcase 2x TSL-750/TSL-1200
Maximum load:50 kg
Color:Dark brown laminated
Material:Birch multiplex 7 mm
Additional dimensions:Compartment dimensions 23x27x46 cm
Accessory compartment 10,5x29x46 cm
Inside dimensions 64x27x46 cm
Strength:7 mm
Width:68,5 cm
Height:57 cm
Depth:33,5 cm
Weight:13,50 kg
